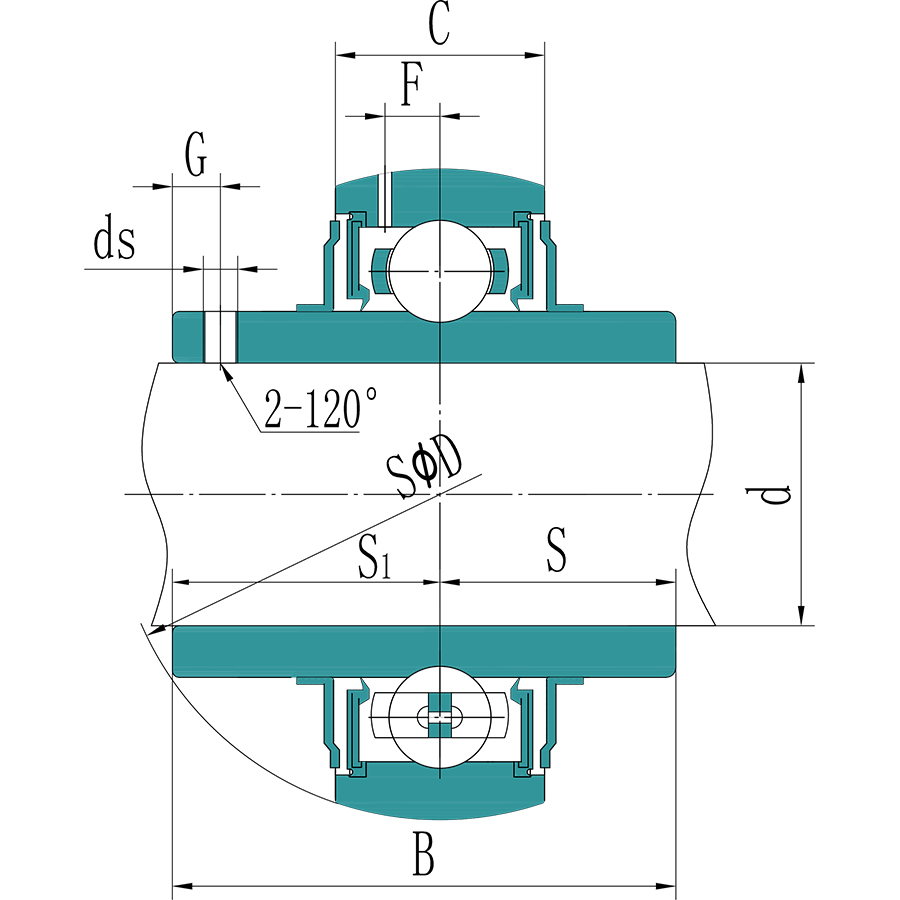

Insert bearings with grub screws, inch shafts

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100, 100Cr6, SUJ2, stainless steel

Внутренний диаметр

12.7mm-100mm

Наружный диаметр

40mm-215mm

Вес

0.09kg-11kg

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Применения

Conveyor systems, agricultural machinery, food processing equipment, textile machinery, ect

Insert bearings with grub screws, inch shafts

Filters

NO. Product Product Number Базовая динамическая нагрузка Базовая статическая нагрузка Отверстие Вес
1 QYAR QYAR 203-008-2F 9.56 KN 4.75 KN 12.7 mm 0.12 kg
2 QYAT QYAT 203-010 9.56 KN 4.75 KN 15.875 mm 0.09 kg
3 QYAR QYAR 203-010-2F 9.56 KN 4.75 KN 15.875 mm 0.1 kg
4 QYAT QYAT 204-012 12.7 KN 6.55 KN 19.05 mm 0.14 kg
5 QYAR QYAR 204-012-2RF/HV 10.8 KN 6.55 KN 19.05 mm 0.16 kg
6 QYAR QYAR 204-012-2RFGR/HV 10.8 KN 6.55 KN 19.05 mm 0.16 kg
7 QYAR QYAR 204-012-2RF 12.7 KN 6.55 KN 19.05 mm 0.16 kg
8 QYAR QYAR 204-012-2F 12.7 KN 6.55 KN 19.05 mm 0.16 kg
9 QYAT QYAT 205-014 14 KN 7.8 KN 22.225 mm 0.19 kg
10 QYAT QYAT 205-015 14 KN 7.8 KN 23.813 mm 0.17 kg
11 QYAR QYAR 205-015-2F 14 KN 7.8 KN 23.813 mm 0.2 kg
12 QYAT QYAT 205-100 14 KN 7.8 KN 25.4 mm 0.16 kg
13 QYAR QYAR 205-100-2RF/HV 11.9 KN 7.8 KN 25.4 mm 0.19 kg
14 QYAR QYAR 205-100-2RFGR/HV 11.9 KN 7.8 KN 25.4 mm 0.19 kg
15 QYARAG QYARAG 205-100 14 KN 7.8 KN 25.4 mm 0.18 kg
16 QYAR QYAR 205-100-2RF 14 KN 7.8 KN 25.4 mm 0.19 kg
17 QYAR QYAR 205-100-2F 14 KN 7.8 KN 25.4 mm 0.19 kg
18 QYAR QYAR 206-101-2F 19.5 KN 11.2 KN 26.988 mm 0.35 kg
19 QYARAG QYARAG 206-102 19.5 KN 11.2 KN 28.575 mm 0.32 kg
20 QYAR QYAR 206-102-2F 19.5 KN 11.2 KN 28.575 mm 0.32 kg
21 QYAT QYAT 206-103 19.5 KN 11.2 KN 30.163 mm 0.26 kg
22 QYAR QYAR 206-103-2RF/HV 16.3 KN 11.2 KN 30.163 mm 0.3 kg
23 QYAR QYAR 206-103-2RFGR/HV 16.3 KN 11.2 KN 30.163 mm 0.3 kg
24 QYARAG QYARAG 206-103 19.5 KN 11.2 KN 30.163 mm 0.3 kg
25 QYAR QYAR 206-103-2F 19.5 KN 11.2 KN 30.163 mm 0.3 kg
26 QYAT QYAT 206-104 19.5 KN 11.2 KN 31.75 mm 0.24 kg
27 QYAR QYAR 206-104-2RF/HV 16.3 KN 11.2 KN 31.75 mm 0.28 kg
28 QYAR QYAR 206-104-2RFGR/HV 16.3 KN 11.2 KN 31.75 mm 0.28 kg
29 QYARAG QYARAG 206-104 19.5 KN 11.2 KN 31.75 mm 0.27 kg
30 QYAR QYAR 206-104-2F 19.5 KN 11.2 KN 31.75 mm 0.28 kg
31 QYAR QYAR 207-104-2RF/HV 21.6 KN 15.3 KN 31.75 mm 0.5 kg
32 QYAR QYAR 207-104-2RFGR/HV 21.6 KN 15.3 KN 31.75 mm 0.5 kg
33 QYARAG QYARAG 207-104 21.6 KN 15.3 KN 31.75 mm 0.49 kg
34 QYAR QYAR 207-104-2RF 21.6 KN 15.3 KN 31.75 mm 0.51 kg
35 QYAR QYAR 207-104-2F 21.6 KN 15.3 KN 31.75 mm 0.5 kg
36 QYAR QYAR 207-105-2F 21.6 KN 15.3 KN 33.338 mm 0.48 kg
37 QYAR QYAR 207-106-2RF/HV 21.6 KN 15.3 KN 34.925 mm 0.45 kg
38 QYAR QYAR 207-106-2RFGR/HV 21.6 KN 15.3 KN 34.925 mm 0.45 kg
39 QYARAG QYARAG 207-106 21.6 KN 15.3 KN 34.925 mm 0.44 kg
40 QYAR QYAR 207-106-2F 21.6 KN 15.3 KN 34.925 mm 0.45 kg
41 QYAT QYAT 207-107 25.5 KN 15.3 KN 36.513 mm 0.36 kg
42 QYAR QYAR 207-107-2RF/HV 21.6 KN 15.3 KN 36.513 mm 0.42 kg
43 QYAR QYAR 207-107-2RFGR/HV 21.6 KN 15.3 KN 36.513 mm 0.42 kg
44 QYARAG QYARAG 207-107 25.5 KN 15.3 KN 36.513 mm 0.41 kg
45 QYAR QYAR 207-107-2F 25.5 KN 15.3 KN 36.513 mm 0.42 kg
46 QYAR QYAR 208-107-2F 30.7 KN 19 KN 36.513 mm 0.68 kg
47 QYAT QYAT 208-108 30.7 KN 19 KN 38.1 mm 0.53 kg
48 QYAR QYAR 208-108-2RF/HV 24.7 KN 19 KN 38.1 mm 0.65 kg
49 QYAR QYAR 208-108-2RFGR/HV 24.7 KN 19 KN 38.1 mm 0.65 kg
50 QYARAG QYARAG 208-108 30.7 KN 19 KN 38.1 mm 0.63 kg
51 QYAR QYAR 208-108-2RF 30.7 KN 19 KN 38.1 mm 0.63 kg
52 QYAR QYAR 208-108-2F 30.7 KN 19 KN 38.1 mm 0.63 kg
53 QYAR QYAR 209-108-2F 33.2 KN 21.6 KN 38.1 mm 0.84 kg
54 QYAR QYAR 208-109-2F 30.7 KN 19 KN 39.688 mm 0.61 kg
55 QYARAG QYARAG 209-110 33.2 KN 21.6 KN 41.275 mm 0.75 kg
56 QYAR QYAR 209-110-2F 33.2 KN 21.6 KN 41.275 mm 0.77 kg
57 QYAT QYAT 209-111 33.2 KN 21.6 KN 42.863 mm 0.61 kg
58 QYARAG QYARAG 209-111 33.2 KN 21.6 KN 42.863 mm 0.71 kg
59 QYAR QYAR 209-111-2F 33.2 KN 21.6 KN 42.863 mm 0.73 kg
60 QYAT QYAT 209-112 33.2 KN 21.6 KN 44.45 mm 0.58 kg
61 QYAR QYAR 209-112-2RF 33.2 KN 21.6 KN 44.45 mm 0.69 kg
62 QYAR QYAR 209-112-2F 33.2 KN 21.6 KN 44.45 mm 0.69 kg
63 QYAT QYAT 210-115 35.1 KN 23.2 KN 49.213 mm 0.65 kg
64 QYAR QYAR 210-115-2RF/HV 29.6 KN 23.2 KN 49.213 mm 0.79 kg
65 QYAR QYAR 210-115-2RFGR/HV 29.6 KN 23.2 KN 49.213 mm 0.79 kg
66 QYARAG QYARAG 210-115 35.1 KN 23.2 KN 49.213 mm 0.77 kg
67 QYAR QYAR 210-115-2RF 35.1 KN 23.2 KN 49.213 mm 0.79 kg
68 QYAR QYAR 210-115-2F 35.1 KN 23.2 KN 49.213 mm 0.79 kg
69 QYAT QYAT 211-200 43.6 KN 29 KN 50.8 mm 1 kg
70 QYAR QYAR 211-200-2RF 43.6 KN 29 KN 50.8 mm 1.2 kg
71 QYAR QYAR 211-200-2F 43.6 KN 29 KN 50.8 mm 1.2 kg
72 QYAR QYAR 211-203-2F 43.6 KN 29 KN 55.563 mm 1 kg
73 QYAR QYAR 212-203-2F 52.7 KN 36 KN 55.563 mm 1.6 kg
74 QYAT QYAT 212-204 52.7 KN 36 KN 57.15 mm 1.25 kg
75 QYAR QYAR 212-204-2F 52.7 KN 36 KN 57.15 mm 1.55 kg
76 QYAT QYAT 212-207 52.7 KN 36 KN 61.913 mm 1.1 kg
77 QYAR QYAR 212-207-2F 52.7 KN 36 KN 61.913 mm 1.3 kg
78 QYAR QYAR 214-207-2F 62.4 KN 45 KN 61.913 mm 2.4 kg
79 QYAR QYAR 213-208-2RF 57.2 KN 40 KN 63.5 mm 1.9 kg
80 QYAR QYAR 213-208-2F 57.2 KN 40 KN 63.5 mm 1.85 kg
81 QYAR QYAR 214-208-2F 62.4 KN 45 KN 63.5 mm 2.3 kg
82 QYAR QYAR 213-211-2F 57.2 KN 40 KN 68.263 mm 1.6 kg
83 QYAT QYAT 215-215 66.3 KN 49 KN 74.613 mm 1.75 kg
84 QYAR QYAR 215-215-2F 66.3 KN 49 KN 74.613 mm 2.15 kg
85 QYAT QYAT 216-300 72.8 KN 53 KN 76.2 mm 2.2 kg
86 QYAR QYAR 216-300-2F 72.8 KN 53 KN 76.2 mm 2.8 kg
87 UCS201-8/ UCS201-8 9600 N 4600 N 12.7000 mm 0.12 kg
88 UCS202-9/ UCS202-9 9600 N 4600 N 14.2875 mm 0.11 kg
89 UCS202-10/ UCS202-10 9600 N 4600 N 15.8750 mm 0.11 kg
90 UCS203-11/ UCS203-11 9600 N 4600 N 17.4625 mm 0.10 kg
91 UC201-8/ UC201-8 12800 N 6600 N 12.7000 mm 0.19 kg
92 UC202-9/ UC202-9 12800 N 6600 N 14.2875 mm 0.19 kg
93 UC202-10/ UC202-10 12800 N 6600 N 15.8750 mm 0.19 kg
94 UC203-11/ UC203-11 12800 N 6600 N 17.4625 mm 0.17 kg
95 UC204-12/ UC204-12 12800 N 6600 N 19.0500 mm 0.16 kg
96 UC205-13/ UC205-13 14000 N 7850 N 20.6375 mm 0.22 kg
97 UC205-14/ UC205-14 14000 N 7850 N 22.2250 mm 0.22 kg
98 UC205-15/ UC205-15 14000 N 7850 N 23.8125 mm 0.20 kg
99 UC205-16/ UC205-16 14000 N 7850 N 25.4000 mm 0.19 kg
100 UC206-17/ UC206-17 19450 N 11250 N 26.9875 mm 0.31 kg

 Features and advantages of QIBR insert bearings with grub screws (inch shafts)

QIBR insert bearings with grub screws (inch shafts) solve several key problems in various fields, particularly in the following aspects:

1. Self-aligning ability

The insert bearing has a self-aligning function. It consists of an inner ring, outer ring, rolling elements, and cage. The spherical shape of the outer ring allows the bearing to accommodate certain axial and radial errors. Even when the shaft is not perfectly aligned during installation, the bearing can still function properly, reducing damage caused by installation errors.

2. High load capacity

Insert bearings can typically bear large radial loads and certain axial loads, making them suitable for heavy-duty machinery.

3. Durability and reliability

Due to their structural characteristics, insert bearings are wear-resistant and impact-resistant, and show strong reliability in unfavorable working conditions (such as dusty or humid environments).

4. Enhancing stability

The grub screw can securely fasten the bearing to the shaft or equipment. By embedding the screw head, it prevents the screw from protruding, reducing the risk of loosening caused by vibrations or impacts, thereby ensuring the bearing remains stable during operation.

Performance improvements and solutions for QIBR insert bearings with grub screws (inch shafts)

1. Material improvement

High-performance materials: Using high-strength, high-wear-resistant materials such as ceramics, advanced alloy steels, and stainless steel can significantly improve the durability and load-bearing capacity of insert bearings.

Surface treatment: Surface treatments like carburizing, nitriding, chrome plating, and hardening can enhance the bearing's wear resistance, corrosion resistance, and fatigue strength.

2. Precision improvement

High-precision manufacturing: Advanced processing technologies such as CNC machining and precision grinding improve the bearing’s processing accuracy, leading to smoother operation and lower noise.

High-precision fit: Improving the fit accuracy between the inner and outer rings of the insert bearing ensures the flexibility and stability of the bearing's rotation, reducing friction and wear.

3. Sealing performance improvement

Efficient sealing: More efficient sealing structures, such as double-lip seals or skeleton seals, can effectively prevent dust and dirt from entering the bearing, reducing contamination, and extending its service life.

Sealing materials: Using heat-resistant, wear-resistant, and corrosion-resistant sealing materials ensures bearing reliability in harsh environments.

4. Load capacity enhancement

Optimized design: By optimizing the geometry of insert bearings, such as increasing the contact area and adopting a stronger outer ring structure, their load-bearing capacity is improved, enhancing the bearing's ability to withstand loads.

Main application areas of QIBR insert bearings with grub screws (inch shafts)

1. Agricultural machinery

Insert bearings are commonly used in agricultural machinery such as tractors, seeders, harvesters, etc. These machines are often subject to high loads and may experience axial or radial misalignment, making the self-aligning feature of insert bearings very suitable for this environment.

2. Construction machinery

Insert bearings are widely used in construction machinery such as cranes, excavators, and concrete mixers. Construction machinery often operates in high-load and high-impact environments, and the high load capacity and self-aligning features of insert bearings help equipment run more smoothly.

3. Automotive industry

In automotive suspension systems, wheel axles, and steering components, insert bearings are widely used. Insert bearings can withstand reverse impact forces and lateral forces from the tires and suspension systems, making them ideal for automotive applications.

4. Railway transportation

Insert bearings are widely used in the wheels, bogies, and other load-bearing components of railway locomotives and carriages. Railway transportation requires handling heavy loads and high-frequency movement. The high load capacity and excellent self-aligning performance of insert bearings enable them to effectively address these challenges.
