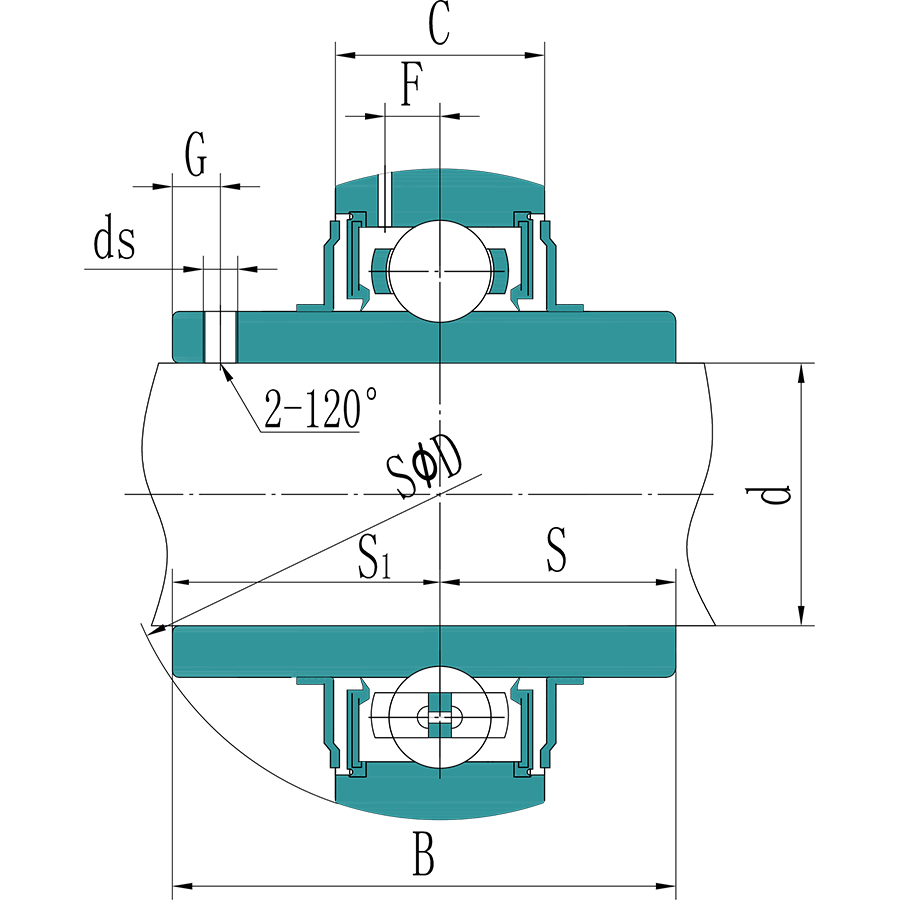

Insert bearings with grub screws, metric shafts

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100, 100Cr6, SUJ2, stainless steel

Внутренний диаметр

12mm-140mm

Наружный диаметр

40mm-300mm

Вес

0.08kg-29.4kg

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Применения

Conveyor systems, agricultural machinery, food processing equipment, textile machinery, ect

Insert bearings with grub screws, metric shafts

Filters

NO. Product Product Number Базовая динамическая нагрузка Базовая статическая нагрузка Отверстие Вес
1 QYAR QYAR 203/12-2F 9.56 KN 4.75 KN 12 mm 0.12 kg
2 QYAR QYAR 203/15-2F 9.56 KN 4.75 KN 15 mm 0.11 kg
3 QYAT QYAT 203 9.56 KN 4.75 KN 17 mm 0.08 kg
4 QYAR QYAR 203-2F 9.56 KN 4.75 KN 17 mm 0.1 kg
5 QYAT QYAT 204 12.7 KN 6.55 KN 20 mm 0.13 kg
6 QYAR QYAR 204-2RF/HV 10.8 KN 6.55 KN 20 mm 0.15 kg
7 QYAR QYAR 204-2RFGR/HV 10.8 KN 6.55 KN 20 mm 0.15 kg
8 QYARAG QYARAG 204 12.7 KN 6.55 KN 20 mm 0.15 kg
9 QYAR QYAR 204-2RF 12.7 KN 6.55 KN 20 mm 0.15 kg
10 QYAR QYAR 204-2F 12.7 KN 6.55 KN 20 mm 0.15 kg
11 QYAT QYAT 205 14 KN 7.8 KN 25 mm 0.16 kg
12 QYAR QYAR 205-2RF/HV 11.9 KN 7.8 KN 25 mm 0.19 kg
13 QYAR QYAR 205-2RFGR/HV 11.9 KN 7.8 KN 25 mm 0.19 kg
14 QYARAG QYARAG 205 14 KN 7.8 KN 25 mm 0.19 kg
15 QYAR QYAR 205-2RF 14 KN 7.8 KN 25 mm 0.19 kg
16 QYAR QYAR 205-2F 14 KN 7.8 KN 25 mm 0.19 kg
17 QYAT QYAT 206 19.5 KN 11.2 KN 30 mm 0.26 kg
18 QYAR QYAR 206-2RF/HV 16.3 KN 11.2 KN 30 mm 0.3 kg
19 QYAR QYAR 206-2RFGR/HV 16.3 KN 11.2 KN 30 mm 0.3 kg
20 QYARAG QYARAG 206 19.5 KN 11.2 KN 30 mm 0.3 kg
21 QYAR QYAR 206-2RF 19.5 KN 11.2 KN 30 mm 0.31 kg
22 QYAR QYAR 206-2F 19.5 KN 11.2 KN 30 mm 0.31 kg
23 QYAT QYAT 207 25.5 KN 15.3 KN 35 mm 0.38 kg
24 QYAR QYAR 207-2RF/HV 21.6 KN 15.3 KN 35 mm 0.45 kg
25 QYAR QYAR 207-2RFGR/HV 21.6 KN 15.3 KN 35 mm 0.45 kg
26 QYARAG QYARAG 207 25.5 KN 15.3 KN 35 mm 0.44 kg
27 QYAR QYAR 207-2RF 25.5 KN 15.3 KN 35 mm 0.45 kg
28 QYAR QYAR 207-2F 25.5 KN 15.3 KN 35 mm 0.45 kg
29 QYAT QYAT 208 30.7 KN 19 KN 40 mm 0.5 kg
30 QYAR QYAR 208-2RF/HV 24.7 KN 19 KN 40 mm 0.6 kg
31 QYAR QYAR 208-2RFGR/HV 24.7 KN 19 KN 40 mm 0.6 kg
32 QYARAG QYARAG 208 30.7 KN 19 KN 40 mm 0.59 kg
33 QYAR QYAR 208-2RF 30.7 KN 19 KN 40 mm 0.6 kg
34 QYAR QYAR 208-2F 30.7 KN 19 KN 40 mm 0.6 kg
35 QYAT QYAT 209 33.2 KN 21.6 KN 45 mm 0.56 kg
36 QYARAG QYARAG 209 33.2 KN 21.6 KN 45 mm 0.66 kg
37 QYAR QYAR 209-2RF 33.2 KN 21.6 KN 45 mm 0.67 kg
38 QYAR QYAR 209-2F 33.2 KN 21.6 KN 45 mm 0.67 kg
39 QYAT QYAT 210 35.1 KN 23.2 N 50 mm 0.63 kg
40 QYAR QYAR 210-2RF/HV 29.6 KN 23.2 N 50 mm 0.76 kg
41 QYAR QYAR 210-2RFGR/HV 29.6 KN 23.2 N 50 mm 0.76 kg
42 QYARAG QYARAG 210 35.1 KN 23.2 N 50 mm 0.75 kg
43 QYAR QYAR 210-2RF 35.1 KN 23.2 KN 50 mm 0.77 kg
44 QYAR QYAR 210-2F 35.1 KN 23.2 N 50 mm 0.76 kg
45 QYAR QYAR 211-2RF 43.6 KN 29 N 55 mm 1.05 kg
46 QYAR QYAR 211-2F 43.6 KN 29 N 55 mm 1.05 kg
47 QYAR QYAR 212-2RF 52.7 KN 36 N 1.53 KN 60 mm 1.4 kg
48 QYAR QYAR 212-2F 52.7 KN 36 N 60 mm 1.4 kg
49 QYAR QYAR 213-2RF 57.2 KN 40 KN 65 mm 1.8 kg
50 QYAR QYAR 213-2F 57.2 KN 40 KN 65 mm 1.8 kg
51 QYAR QYAR 214-2F 62.4 KN 45 KN 70 mm 1.95 kg
52 QYAR QYAR 215-2F 66.3 KN 49 KN 75 mm 2.15 kg
53 QYAR QYAR 216-2F 72.8 KN 53 KN 80 mm 2.5 kg
54 QYAR QYAR 218-2F 95.6 KN 72 KN 90 mm 4 kg
55 QYAR QYAR 220-2F 124 KN 93 KN 100 mm 5.6 kg
56 UCS201/ UCS201 9600 N 4600 N 12 mm 0.12 kg
57 UCS202/ UCS202 9600 N 4600 N 15 mm 0.11 kg
58 UCS203/ UCS203 9600 N 4600 N 17 mm 0.10 kg
59 UC201/ UC201 12800 N 6600 N 12 mm 0.20 kg
60 UC202 UC202 12800 N 6600 N 15 mm 0.19 kg
61 UC203/ UC203 12800 N 6600 N 17 mm 0.18 kg
62 UC204/ UC204 12800 N 6600 N 20 mm 0.16 kg
63 UC205/ UC205 12800 N 6600 N 25 mm 0.16 kg
64 UC206/ UC206 19450 N 11250 N 30 mm 0.3 kg
65 UC207/ UC207 25700 N 15200 N 35 mm 0.45 kg
66 UC208/ UC208 29500 N 18100 N 40 mm 0.60 kg
67 UC209/ UC209 32700 N 20900 N 45 mm 0.65 kg
68 UC210/ UC210 35000 N 23200 N 50 mm 0.75 kg
69 UC211/ UC211 43300 N 29200 N 55 mm 0.99 kg
70 UC212/ UC212 47700 N 32800 N 60 mm 1.32 kg
71 UC213/ UC213 57200 N 40000 N 65 mm 1.70 kg
72 UC214/ UC214 62100 N 44800 N 70 mm 1.94kg
73 UC215/ UC215 66200 N 49300 N 75 mm 2.16 kg
74 UC216/ UC216 72600 N 53300 N 80 mm 2.65 kg
75 UC217/ UC217 83300 N 63700 N 85 mm 3.29 kg
76 UC218/ UC218 96000 N 71100 N 90 mm 4.04 kg
77 UC305/ UC305 22400 N 11500 N 25 mm 0.35 kg
78 UC306/ UC306 26500 N 14900 N 30 mm 0.56 kg
79 UC307/ UC307 33300 N 19100 N 35 mm 0.71 kg
80 UC308/ UC308 40600 N 23700 N 40 mm 0.96 kg
81 UC309/ UC309 48600 N 28900 N 45 mm 1.28 kg
82 UC310/ UC310 62000 N 35000 N 50 mm 1.65 kg
83 UC311/ UC311 71600 N 44600 N 55 mm 2.07 kg
84 UC312/ UC312 61600 N 51800 N 60 mm 2.60 kg
85 UC313/ UC313 93700 N 60400 N 65 mm 3.25 kg
86 UC314/ UC314 103600 N 87100 N 70 mm 3.89 kg
87 UC315/ UC315 112800 N 75700 N 75 mm 4.72 kg
88 UC316/ UC316 123500 N 88200 N 80 mm 5.55 kg
89 UC317/ UC317 133000 N 97500 N 85 mm 6.57 kg
90 UC318/ UC318 144700 N 110600 N 90 mm 7.56 kg
91 UC319/ UC319 156600 N 122000 N 95 mm 8.70 kg
92 UC320/ UC320 173000 N 141000 N 100 mm 11.2 kg
93 UC322/ UC322 205000 N 179000 N 110 mm 15.1 kg
94 UC324/ UC324 227000 N 207000 N 120 mm 19.0 kg
95 UC326/ UC326 253000 N 241000 N 130 mm 23.6 kg
96 UC328/ UC328 274000 N 272000 N 140 mm 29.4 kg
97 UCX05/ UCX05 19450 N 11250 N 25 mm 0.36 kg
98 UCX06/ UCX06 25700 N 15200 N 30 mm 0.53 kg
99 UCX07/ UCX07 29500 N 18100 N 35 mm 0.7 kg
100 UCX08/ UCX08 32700 N 20900 N 40 mm 0.77 kg

 Features and advantages of QIBR insert bearings with grub screws (metric shafts)

QIBR insert bearings with grub screws (metric shafts) solve several key problems in various fields, particularly in the following aspects:

1. Self-aligning ability

The insert bearing has a self-aligning function. It consists of an inner ring, outer ring, rolling elements, and cage. The spherical shape of the outer ring allows the bearing to accommodate certain axial and radial errors. Even when the shaft is not perfectly aligned during installation, the bearing can still function properly, reducing damage caused by installation errors.

2. High load capacity

Insert bearings can typically bear large radial loads and certain axial loads, making them suitable for heavy-duty machinery.

3. Durability and reliability

Due to their structural characteristics, insert bearings are wear-resistant and impact-resistant, and show strong reliability in unfavorable working conditions (such as dusty or humid environments).

4. Easy fastening

The countersunk screw design makes both fastening and disassembly more convenient. This design is particularly useful in applications that require regular maintenance and replacement.

 Performance improvements and solutions for QIBR insert bearings with grub screws (metric shafts)

1. Material improvement

High-performance materials: Using high-strength, high-wear-resistant materials such as ceramics, advanced alloy steels, and stainless steel can significantly improve the durability and load-bearing capacity of insert bearings.

Surface treatment: Surface treatments like carburizing, nitriding, chrome plating, and hardening can enhance the bearing's wear resistance, corrosion resistance, and fatigue strength.

2. Precision improvement

High-precision manufacturing: Advanced processing technologies such as CNC machining and precision grinding improve the bearing’s processing accuracy, leading to smoother operation and lower noise.

High-precision fit: Improving the fit accuracy between the inner and outer rings of the insert bearing ensures the flexibility and stability of the bearing's rotation, reducing friction and wear.

3. Sealing performance improvement

Efficient sealing: More efficient sealing structures, such as double-lip seals or skeleton seals, can effectively prevent dust and dirt from entering the bearing, reducing contamination, and extending its service life.

Sealing materials: Using heat-resistant, wear-resistant, and corrosion-resistant sealing materials ensures bearing reliability in harsh environments.

4. Load capacity enhancement

Optimized design: By optimizing the geometry of insert bearings, such as increasing the contact area and adopting a stronger outer ring structure, their load-bearing capacity is improved, enhancing the bearing's ability to withstand loads.

 Main application areas of QIBR insert bearings with grub screws (metric shafts)

1. Agricultural machinery

Insert bearings are commonly used in agricultural machinery such as tractors, seeders, harvesters, etc. These machines are often subject to high loads and may experience axial or radial misalignment, making the self-aligning feature of insert bearings very suitable for this environment.

2. Construction machinery

Insert bearings are widely used in construction machinery such as cranes, excavators, and concrete mixers. Construction machinery often operates in high-load and high-impact environments, and the high load capacity and self-aligning features of insert bearings help equipment run more smoothly.

3. Automotive industry

In automotive suspension systems, wheel axles, and steering components, insert bearings are widely used. Insert bearings can withstand reverse impact forces and lateral forces from the tires and suspension systems, making them ideal for automotive applications.

4. Conveying equipment

Insert bearings are widely used in various conveying equipment such as conveyor belts, belt conveyors, and roller conveyors. Insert bearings can adapt to load variations in conveying equipment and axial misalignment caused by long-term operation of the equipment.
