Ball downwards UK Series
QIBR
Model Selection

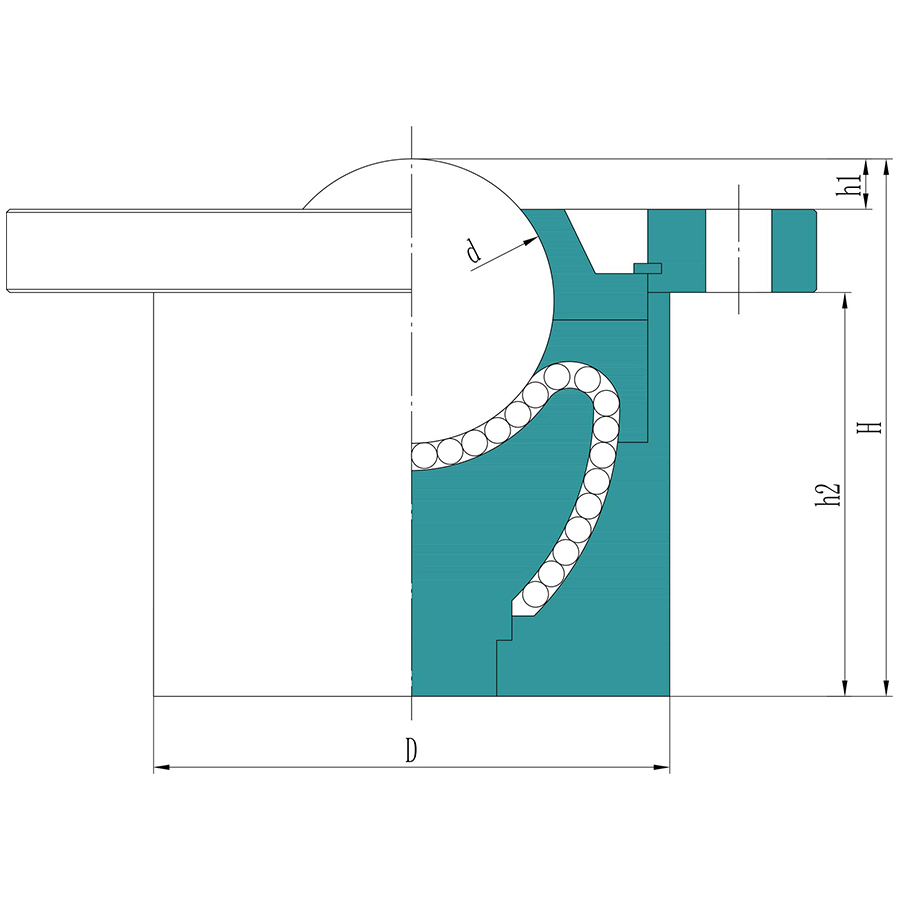

| NO. | Product | Product Number | Overall Width (H) | Material | Outside diameter (D) | Suggest Loading Capacity (kg) | Main Ball Diameter (d) |
|---|---|---|---|---|---|---|---|
| 1 |
|
UK-12 | 24 mm | BS/CS | 24 mm | 8 kg | 12.7 mm |
| 2 |
|
UK-25 | 42 mm | BS/CS | 45 mm | 150 kg | 25.4 mm |
| 3 |
|
UK-38 | 62 mm | BS/CS | 60 mm | 300 kg | 38.1 mm |
| 4 |
|
UK-51 | 98 mm | BS/CS | 102 mm | 450 kg | 51 mm |
| 5 |
|
UK-76 | 125 mm | BS/CS | 135 mm | 600 kg | 76 mm |
