Heavy Duty D-HB Series

Heavy Duty D-HB Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Main Ball Diameter (d)

25.4mm-76.2mm

Outside Diameter (D)

56mm-130mm

Weight

0.450kg-5.400kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Heavy Duty D-HB Series

QIBR

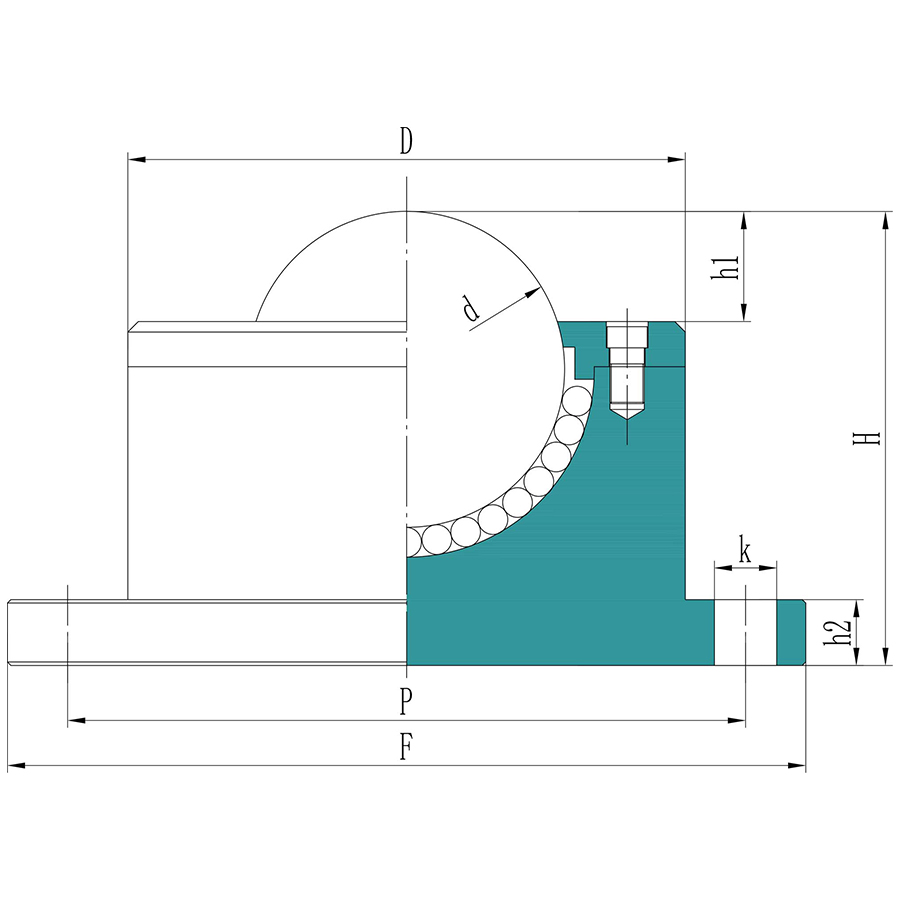

Model Selection

Filters

NO. Product Product Number Overall Width (H) Material Outside diameter (D) Suggest Loading Capacity (kg) Main Ball Diameter (d)
1 D-8HB/ D-8HB 32 mm BS/CS 56 mm 100 kg 25.4 mm
2 D-10H/ D-10H 48 mm BS/CS 65 mm 200 kg 30.1 mm
3 D-12H/ D-12H 60 mm BS/CS 70 mm 300 kg 38.1 mm
4 D-16H/ D-16H 80 mm BS/CS 95 mm 300 kg 50 mm
5 D-24H/ D-24H 120 mm BS/CS 130 mm 600 kg 76.2 mm
