Ball downwards Ik-N Series

Ball downwards Ik-N Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Main Ball Diameter (d)

19mm-51mm

Outside Diameter (D)

42mm-100mm

Weight

0.250kg-4.000kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Ball downwards Ik-N Series

QIBR

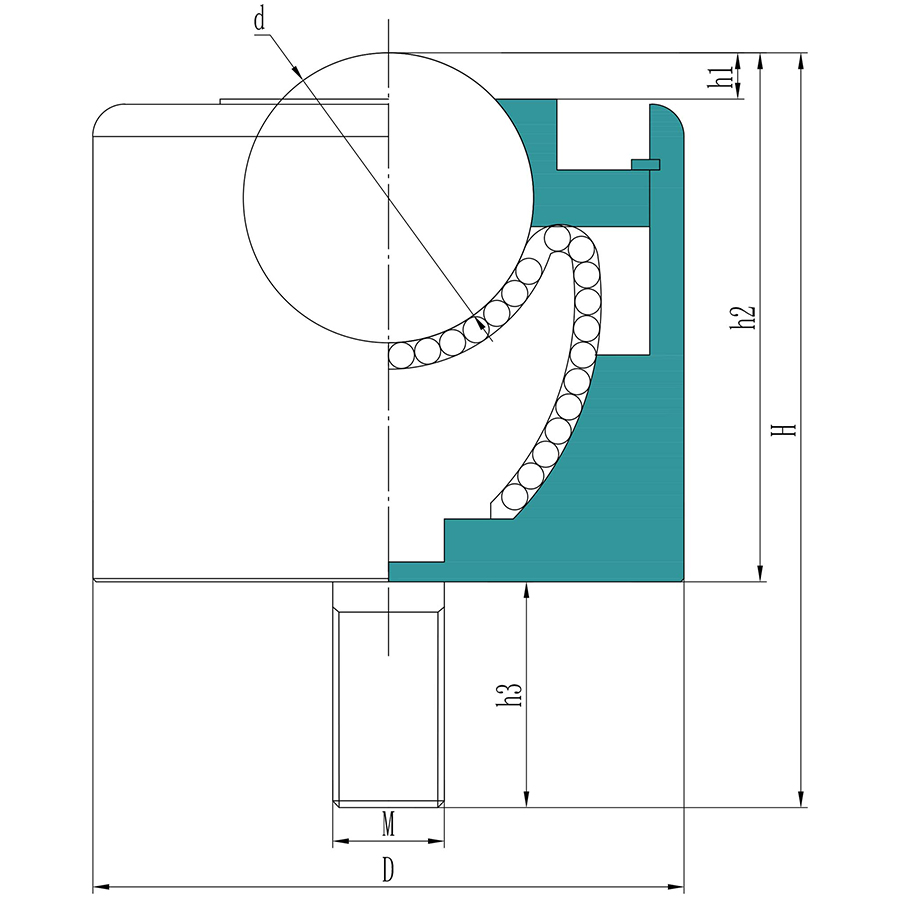

Model Selection

Filters

NO. Product Product Number Material Outside diameter (D) Suggest Loading Capacity (kg) Main Ball Diameter (d) Thread specification (M)
1 IK-19N/ IK-19N BS/CS 42 mm 60 kg 19 mm M12
2 IK-22N/ IK-22N BS/CS 48 mm 120 kg 22 mm M12
3 IK-25N/ IK-25N BS/CS 55 mm 150 kg 25.4 mm M16
4 IK-38N/ IK-38N BS/CS 80 mm 300 kg 38.1 mm M22
5 IK-51N/ IK-51N BS/CS 100 mm 450 kg 51 mm M24
