Machined Steel SI Series
QIBR

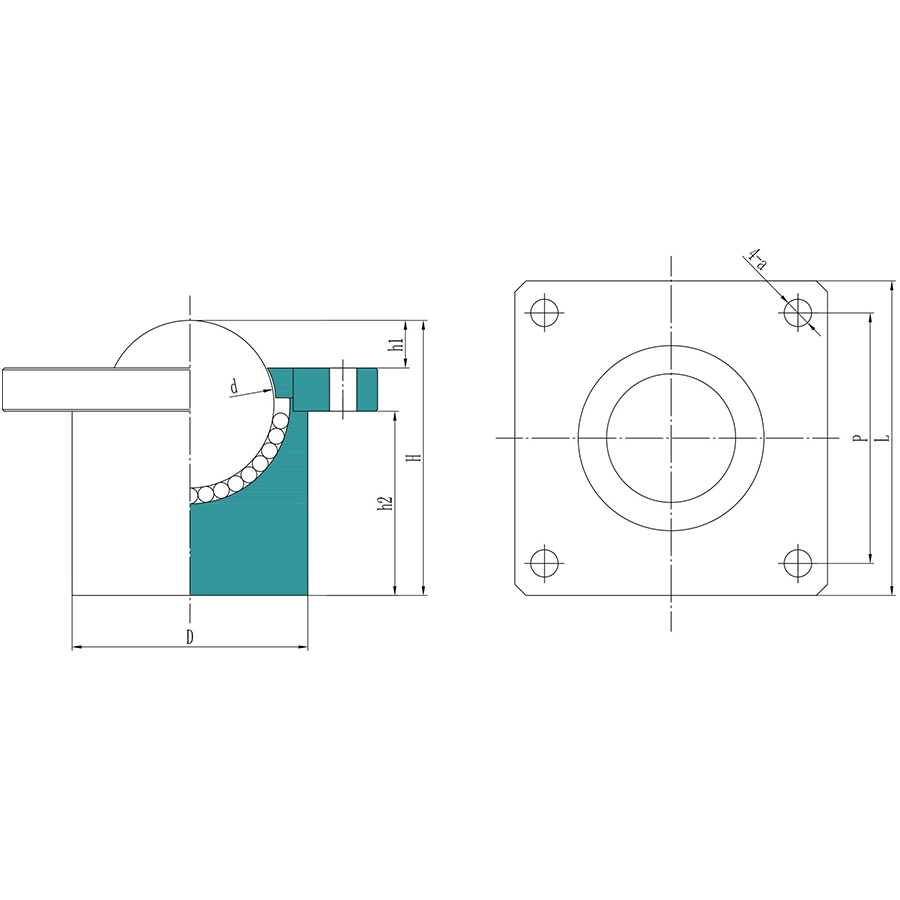

Model Selection
| NO. | Product | Product Number | Overall Width (H) | Material | Outside diameter (D) | Suggest Loading Capacity (kg) | Main Ball Diameter (d) |
|---|---|---|---|---|---|---|---|
| 1 |
|
SI-12 | 24 mm | BS/CS | 24 mm | 15 kg | 12 mm |
| 2 |
|
SI-25 | 42 mm | BS/CS | 45 mm | 150 kg | 25.4 mm |
| 3 |
|
SI-30 | 50 mm | BS/CS | 54 mm | 250 kg | 30.2 mm |
| 4 |
|
SI-38 | 62 mm | BS/CS | 60 mm | 350 kg | 38.1 mm |
| 5 |
|
SI-51 | 98 mm | BS/CS | 102 mm | 600 kg | 51 mm |
