Изображения могут отличаться от продукта. Подробнее см. технические характеристики.
Product number
DMB 4/5.5-DMB 32/36
Мин. диаметр конуса (d)
40mm-320mm
Макс. диаметр конуса (d)
55mm-360mm
Ширина
36mm-114mm
Расстояние (A1)
18mm-90mm
Высота (H)
140mm-290mm
Вес конусного измерителя
2.5kg-10.0kg
Стандарт
GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh
Бренд
QIBR/OEM/Neutral
Упаковка
Standard Export Package

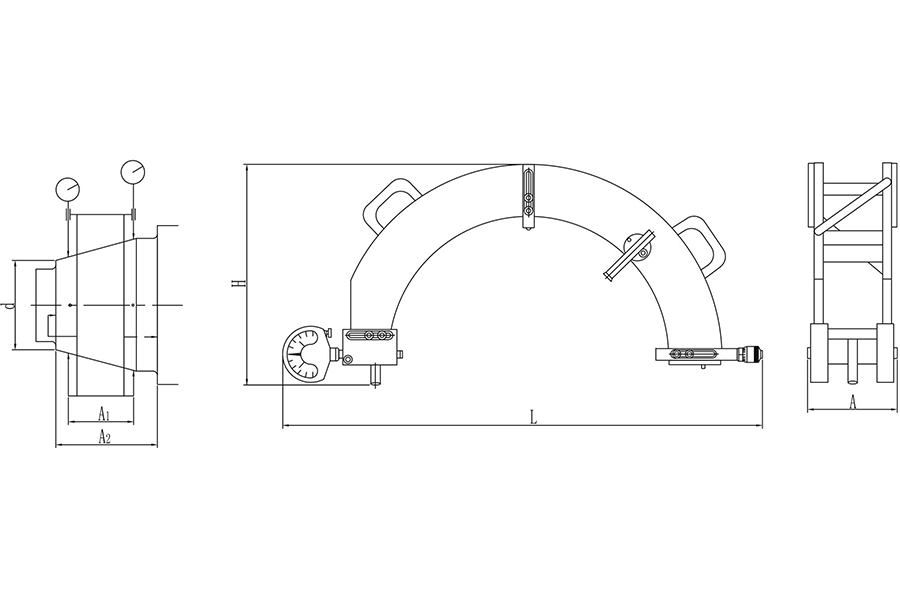

| NO. | Product | Product Number | Высота (H) | Вес | Макс. диаметр конуса (d) | Мин. диаметр конуса (d) | Ширина (A) |
|---|---|---|---|---|---|---|---|
| 1 |
|
DMB 4/5.5 | 140 mm | 2.5 kg | 55 mm | 40 mm | 36 mm |
| 2 |
|
DMB 5/8.5 | 160 mm | 2.5 kg | 85 mm | 50 mm | 38 mm |
| 3 |
|
DMB 8/12 | 190 mm | 3.0 kg | 120 mm | 80 mm | 48 mm |
| 4 |
|
DMB 12/16 | 190 mm | 3.5 kg | 160 mm | 120 mm | 58 mm |
| 5 |
|
DMB 16/20 | 190 mm | 4.5 kg | 200 mm | 160 mm | 74 mm |
| 6 |
|
DMB 20/24 | 215 mm | 5.5 kg | 240 mm | 200 mm | 84 mm |
| 7 |
|
DMB 24/28 | 240 mm | 7.0 kg | 280 mm | 240 mm | 99 mm |
| 8 |
|
DMB 28/32 | 265 mm | 8.5 kg | 320 mm | 280 mm | 114 mm |
| 9 |
|
DMB 32/36 | 290 mm | 10 kg | 360 mm | 320 mm | 114 mm |
Functions of DMB taper gauges
1. Dimension Measurement
Ensures that the dimensions of bearings conform to design specifications.
2. Angle inspection
Verifies that the taper angles meet production requirements, preventing bearing failures caused by assembly errors.
3. Quality control
Serves as part of production quality control, helping to check and verify the accuracy of products.
Measurement using DMB taper gauges
The gauge pins and the radial stops can be set to measure any taper angle between 0°and 6°and any diameter within the range of the gauge. Markings on the scales show the set-tings for 1:12 and 1:30 tapers.
