Needle Rollers

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Материал

52100

Применения

Bearing Manufacturing, Automotive and Medical Devices

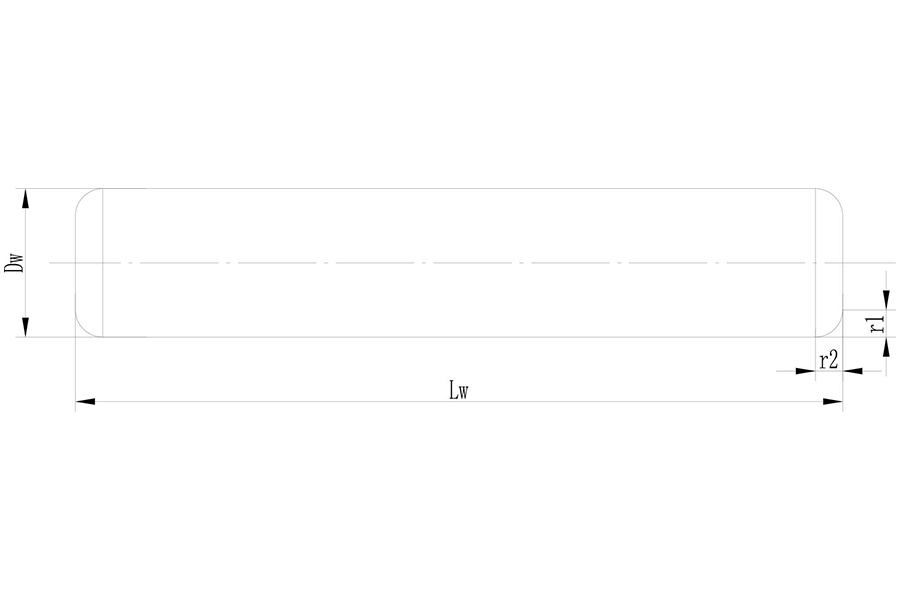

Диаметр (Dw)

1mm-6mm

Длина (Lw)

5.8mm-39.8mm

Вес

0.048kg-6.13kg (1000 pieces)

Needle Rollers

Filters

NO. Product Product Number Диаметр (Dw) Длина (Lw) Вес
1 Needle Needle Roller NRB1X7.8-G2 1 mm 7.8 mm 0.048 kg
2 Needle Needle Roller NRB1.5X5.8-G2 1.5 mm 5.8 mm 0.081 kg
3 Needle Needle Roller NRB1.5X6.8-G2 1.5 mm 6.8 mm 0.094 kg
4 Needle Needle Roller NRB1.5X7.8-G2 1.5 mm 7.8 mm 0.108 kg
5 Needle Needle Roller NRB1.5X9.8-G2 1.5 mm 9.8 mm 0.136 kg
6 Needle Needle Roller NRB1.5X11.8-G2 1.5 mm 11.8 mm 0.164 kg
7 Needle Needle Roller NRB1.5X13.8-G2 1.5 mm 13.8 mm 0.191 kg
8 Needle Needle Roller NRB2X6.3-G2 2 mm 6.3 mm 0.16 kg
9 Needle Needle Roller NRB2X7.8-G2 2 mm 7.8 mm 0.19 kg
10 Needle Needle Roller NRB2X9.8-G2 2 mm 9.8 mm 0.24 kg
11 Needle Needle Roller NRB2X11.8-G2 2 mm 11.8 mm 0.29 kg
12 Needle Needle Roller NRB2X13.8-G2 2 mm 13.8 mm 0.34 kg
13 Needle Needle Roller NRB2X15.8-G2 2 mm 15.8 mm 0.39 kg
14 Needle Needle Roller NRB2X17.8-G2 2 mm 17.8 mm 0.44 kg
15 Needle Needle Roller NRB2X19.8-G2 2 mm 19.8 mm 0.49 kg
16 Needle Needle Roller NRB2X21.8-G2 2 mm 21.8 mm 0.54 kg
17 Needle Needle Roller NRB2.5X7.8-G2 2.5 mm 7.8 mm 0.3 kg
18 Needle Needle Roller NRB2.5X9.8-G2 2.5 mm 9.8 mm 0.38 kg
19 Needle Needle Roller NRB2.5X11.8-G2 2.5 mm 11.8 mm 0.45 kg
20 Needle Needle Roller NRB2.5X13.8-G2 2.5 mm 13.8 mm 0.53 kg
21 Needle Needle Roller NRB2.5X15.8-G2 2.5 mm 15.8 mm 0.61 kg
22 Needle Needle Roller NRB2.5X17.8-G2 2.5 mm 17.8 mm 0.69 kg
23 Needle Needle Roller NRB2.5X19.8-G2 2.5 mm 19.8 mm 0.76 kg
24 Needle Needle Roller NRB2.5X21.8-G2 2.5 mm 21.8 mm 0.84 kg
25 Needle Needle Roller NRB2.5X23.8-G2 2.5 mm 23.8 mm 0.92 kg
26 Needle Needle Roller NRB3X9.8-G2 3 mm 9.8 mm 0.54 kg
27 Needle Needle Roller NRB3X11.8-G2 3 mm 11.8 mm 0.65 kg
28 Needle Needle Roller NRB3X13.8-G2 3 mm 13.8 mm 0.77 kg
29 Needle Needle Roller NRB3X15.8-G2 3 mm 15.8 mm 0.88 kg
30 Needle Needle Roller NRB3X17.8-G2 3 mm 17.8 mm 0.99 kg
31 Needle Needle Roller NRB3X19.8-G2 3 mm 19.8 mm 1.1 kg
32 Needle Needle Roller NRB3X21.8-G2 3 mm 21.8 mm 1.21 kg
33 Needle Needle Roller NRB3X23.8-G2 3 mm 23.8 mm 1.32 kg
34 Needle Needle Roller NRB3.5X11.8-G2 3.5 mm 11.8 mm 0.89 kg
35 Needle Needle Roller NRB3.5X13.8-G2 3.5 mm 13.8 mm 1.04 kg
36 Needle Needle Roller NRB3.5X15.8-G2 3.5 mm 15.8 mm 1.19 kg
37 Needle Needle Roller NRB3.5X17.8-G2 3.5 mm 17.8 mm 1.34 kg
38 Needle Needle Roller NRB3.5X19.8-G2 3.5 mm 19.8 mm 1.5 kg
39 Needle Needle Roller NRB3.5X21.8-G2 3.5 mm 21.8 mm 1.65 kg
40 Needle Needle Roller NRB3.5X29.8-G2 3.5 mm 29.8 mm 2.25 kg
41 Needle Needle Roller NRB3.5X34.8-G2 3.5 mm 34.8 mm 2.63 kg
42 Needle Needle Roller NRB4X11.8-G2 4 mm 11.8 mm 1.16 kg
43 Needle Needle Roller NRB4X13.8-G2 4 mm 13.8 mm 1.36 kg
44 Needle Needle Roller NRB4X15.8-G2 4 mm 15.8 mm 1.56 kg
45 Needle Needle Roller NRB4X17.8-G2 4 mm 17.8 mm 1.76 kg
46 Needle Needle Roller NRB4X19.8-G2 4 mm 19.8 mm 1.95 kg
47 Needle Needle Roller NRB4X21.8-G2 4 mm 21.8 mm 2.15 kg
48 Needle Needle Roller NRB4X23.8-G2 4 mm 23.8 mm 2.35 kg
49 Needle Needle Roller NRB4X25.8-G2 4 mm 25.8 mm 2.55 kg
50 Needle Needle Roller NRB4X27.8-G2 4 mm 27.8 mm 2.74 kg
51 Needle Needle Roller NRB4X29.8-G2 4 mm 29.8 mm 2.94 kg
52 Needle Needle Roller NRB4X34.8-G2 4 mm 34.8 mm 3.43 kg
53 Needle Needle Roller NRB4X39.8-G2 4 mm 39.8 mm 3.93 kg
54 Needle Needle Roller NRB5X15.8-G2 5 mm 15.8 mm 2.44 kg
55 Needle Needle Roller NRB5X19.8-G2 5 mm 19.8 mm 3.05 kg
56 Needle Needle Roller NRB5X21.8-G2 5 mm 21.8 mm 3.36 kg
57 Needle Needle Roller NRB5X23.8-G2 5 mm 23.8 mm 3.67 kg
58 Needle Needle Roller NRB5X25.8-G2 5 mm 25.8 mm 3.98 kg
59 Needle Needle Roller NRB5X27.8-G2 5 mm 27.8 mm 4.28 kg
60 Needle Needle Roller NRB5X29.8-G2 5 mm 29.8 mm 4.59 kg
61 Needle Needle Roller NRB5X34.8-G2 5 mm 34.8 mm 5.36 kg
62 Needle Needle Roller NRB5X39.8-G2 5 mm 39.8 mm 6.13 kg
63 Needle Needle Roller NRB6X17.8-G2 6 mm 17.8 mm 3.95 kg

Characteristics of needle rollers

Low friction: Due to the principle of rolling friction, needle roller bearings have less friction and high efficiency than sliding bearings.

High precision: Some high-precision needle rollers can be used in high-speed and precision equipment.


When choosing needle rollers, the following factors need to be considered:

Load requirements: Choose the appropriate specifications according to the load size required.

Speed requirements: When running at high speed, choose rollers made of materials that are suitable for high speed.

Temperature and environment: Choose appropriate materials and sealing methods according to the temperature and pollution conditions of the working environment.

Lubrication: Reasonable lubrication can reduce friction and extend the service life of the bearing.
