Inner Spring Heavy Duty KSF-B Series

Inner Spring Heavy Duty KSF-B Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Main Ball Diameter (d)

19.05mm-30.163mm

Outside Diameter (D)

38mm-60mm

Weight

0.260kg-1.1kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Inner Spring Heavy Duty KSF-B Series

QIBR

Model Selection

Filters

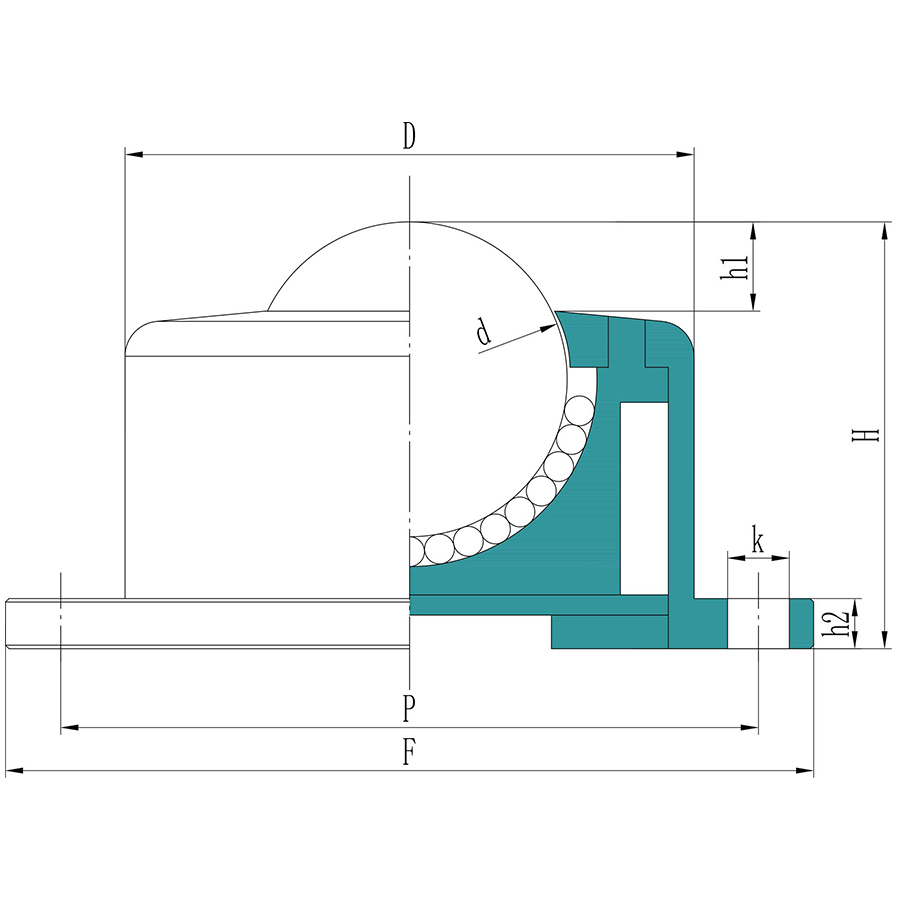

NO. Product Product Number Material Outside diameter (D) Main Ball Diameter (d) Compressed (kgf) Flange Diameter (F)
1 KSF-19B/ KSF-19B BS/CS 38 mm 19.05 mm 60 kgf 53 mm
2 KSF-25B/ KSF-25B BS/CS 50 mm 25.4 mm 100 kgf 70 mm
3 KSF-30B/ KSF-30B BS/CS 60 mm 30.163 mm 150 kgf 83 mm
