Machined Steel KSM-FL Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

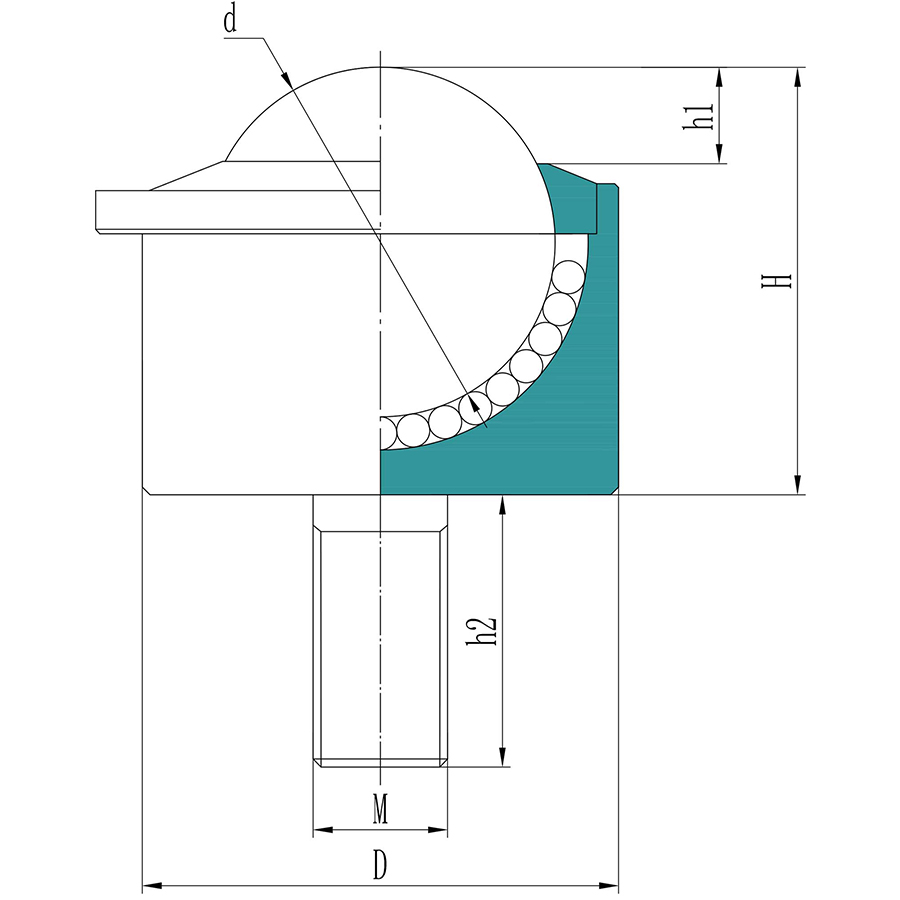

Main Ball Diameter (d)

8mm-45mm

Outside Diameter (D)

15mm-62mm

Weight

0.020kg-0.018kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

QIBR Model Selection

Filters

Material

Outside diameter (D)

Suggest Loading Capacity (kg)

Main Ball Diameter (d)

Thread specification (M)

NO.	Product Number	Material	Outside diameter (D)	Suggest Loading Capacity (kg)	Main Ball Diameter (d)	Thread specification (M)
1	KSM-8FL	BS/CS	15 mm	8 kg	8 mm	M5
2	KSM-8FL	SS/SS	15 mm	5 kg	8 mm	M5
3	KSM-8FL	PL/CS	15 mm	4 kg	8 mm	M5
4	KSM-12FL	BS/CS	22 mm	30 kg	12 mm	M8
5	KSM-12FL	SS/SS	22 mm	20 kg	12 mm	M8
6	KSM-12FL	PL/CS	22 mm	10 kg	12 mm	M8
7	KSM-15FL	BS/CS	24 mm	60 kg	15.88 mm	M8
8	KSM-15FL	SS/SS	24 mm	30 kg	15.88 mm	M8
9	KSM-15FL	PL/CS	24 mm	15 kg	15.88 mm	M8
10	KSM-22FL	BS/CS	36 mm	180 kg	22.23 mm	M10
11	KSM-22FL	SS/SS	36 mm	100 kg	22.23 mm	M10
12	KSM-22FL	PL/CS	36 mm	50 kg	22.23 mm	M10
13	KSM-25FL	BS/CS	37 mm	200 kg	25.4 mm	M12
14	KSM-25FL	SS/SS	37 mm	130 kg	25.4 mm	M12
15	KSM-25FL	PL/CS	37 mm	70 kg	25.4 mm	M12
16	KSM-30FL	BS/CS	44 mm	300 kg	30.16 mm	M16
17	KSM-30FL	SS/SS	44 mm	190 kg	30.16 mm	M16
18	KSM-30FL	PL/CS	44 mm	120 kg	30.16 mm	M16
19	KSM-38FL	BS/CS	54 mm	400 kg	38.1 mm	M16
20	KSM-38FL	SS/SS	54 mm	280 kg	38.1 mm	M16
21	KSM-38FL	PL/CS	54 mm	150 kg	38.1 mm	M16
22	KSM-45FL	BS/CS	62 mm	500 kg	45 mm	M20
23	KSM-45FL	SS/SS	62 mm	320 kg	45 mm	M20
24	KSM-45FL	PL/CS	62 mm	200 kg	45 mm	M20
