Ball downwards IK-B Series
QIBR

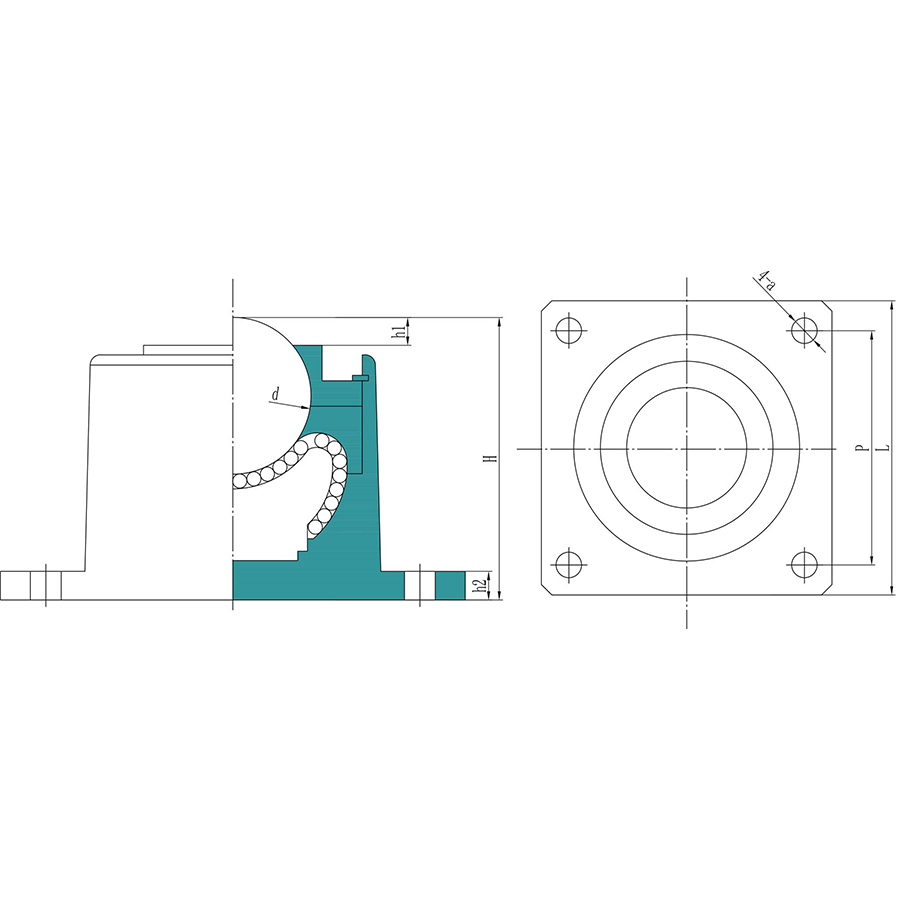

Model Selection
| NO. | Product | Product Number | Overall Width (H) | Weight (kg) | Material | Suggest Loading Capacity (kg) | Main Ball Diameter (d) |
|---|---|---|---|---|---|---|---|
| 1 |
|
IK-19B | 38 mm | 0.370 kg | BS/CS | 60 kg | 19.1 mm |
| 2 |
|
IK-22B | 40 mm | 0.750 kg | BS/CS | 120 kg | 22.2 mm |
| 3 |
|
IK-25B | 50 mm | 0.900 kg | BS/CS | 150 kg | 25.4 mm |
| 4 |
|
IK-38B | 75 mm | 2.600 kg | BS/CS | 300 kg | 38.1 mm |
| 5 |
|
IK-51B | 100 mm | 5.300 kg | BS/CS | 450 kg | 51 mm |
| 6 |
|
IK-76B | 150 mm | 19.600 kg | BS/CS | 650 kg | 76 mm |
