Machined Steel SP-FL Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

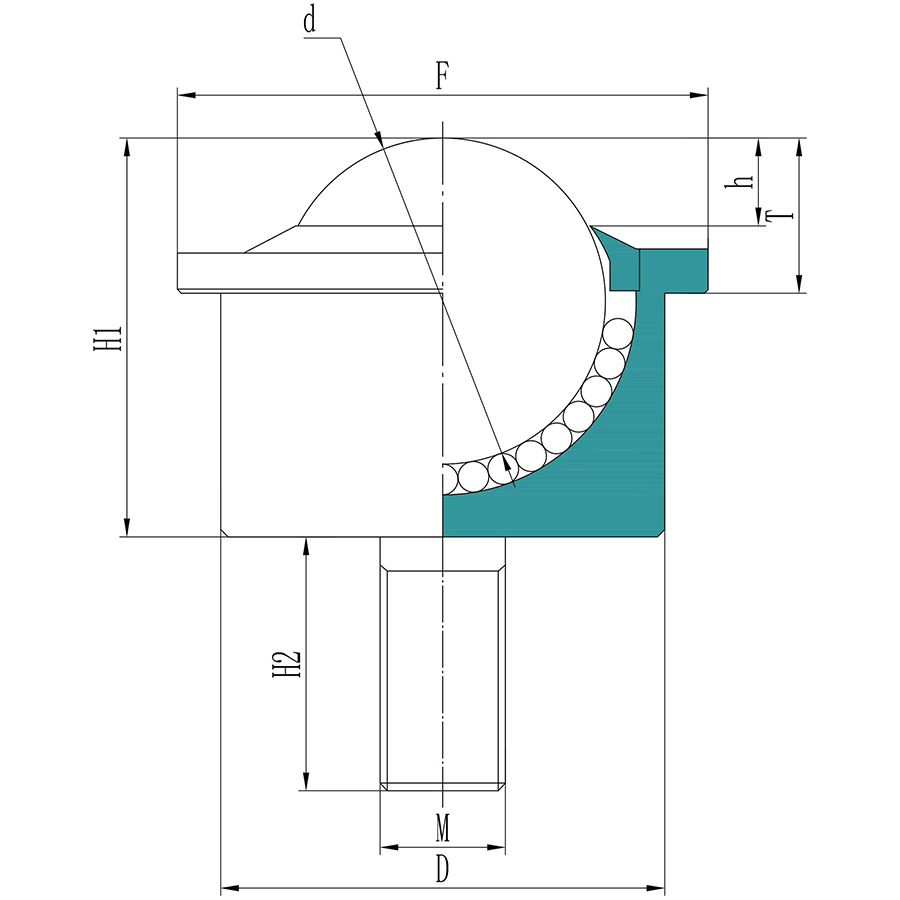

Main Ball Diameter (d)

8mm-60mm

Outside Diameter (D)

15mm-100mm

Weight

0.020kg-4.000kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

QIBR Model Selection

Filters

Material

Outside diameter (D)

Suggest Loading Capacity (kg)

Main Ball Diameter (d)

Thread specification (M)

NO.	Product Number	Material	Outside diameter (D)	Suggest Loading Capacity (kg)	Main Ball Diameter (d)	Thread specification (M)
1	SP-8FL	BS/CS	15 mm	8 kg	8 mm	M5/M6
2	SP-8FL	SS/SS	15 mm	5 kg	8 mm	M5/M6
3	SP-8FL	PL/CS	15 mm	3 kg	8 mm	M5/M6
4	SP-12FL	BS/CS	18 mm	30 kg	12 mm	M8
5	SP-12FL	SS/SS	18 mm	20 kg	12 mm	M8
6	SP-12FL	PL/CS	18 mm	15 kg	12 mm	M8
7	SP-15FL	BS/CS	24 mm	60 kg	15.875 mm	M8
8	SP-15FL	SS/SS	24 mm	30 kg	15.875 mm	M8
9	SP-15FL	PL/CS	24 mm	20 kg	15.875 mm	M8
10	SP-22FL	BS/CS	36 mm	180 kg	22.225 mm	M10
11	SP-22FL	SS/SS	36 mm	100 kg	22.225 mm	M10
12	SP-22FL	PL/CS	36 mm	50 kg	22.225 mm	M10
13	SP-25FL	BS/CS	38 mm	200 kg	25.4 mm	M12
14	SP-25FL	SS/SS	38 mm	130 kg	25.4 mm	M12
15	SP-25FL	PL/CS	38 mm	70 kg	25.4 mm	M12
16	SP-25FK	BS/CS	44 mm	200 kg	25.4 mm	M12
17	SP-25FK	SS/SS	44 mm	130 kg	25.4 mm	M12
18	SP-25FK	PL/CS	44 mm	70 kg	25.4 mm	M12
19	SP-30FL	BS/CS	45 mm	300 kg	30.163 mm	M16
20	SP-30FL	SS/SS	45 mm	190 kg	30.163 mm	M16
21	SP-30FL	PL/CS	45 mm	100 kg	30.163 mm	M16
22	SP-38FL	BS/CS	55 mm	400 kg	38.1 mm	M16
23	SP-38FL	SS/SS	55 mm	280 kg	38.1 mm	M16
24	SP-38FL	PL/CS	55 mm	150 kg	38.1 mm	M16
25	SP-45FL	BS/CS	62 mm	500 kg	45 mm	M20
26	SP-45FL	SS/SS	62 mm	320 kg	45 mm	M20
27	SP-45FL	PL/CS	62 mm	200 kg	45 mm	M20
28	SP-60FL	BS/CS	100 mm	1400 kg	60 mm	M24
29	SP-60FL	SS/SS	100 mm	550 kg	60 mm	M24
