Inner Spring Heavy Duty KSH Series

Inner Spring Heavy Duty KSH Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

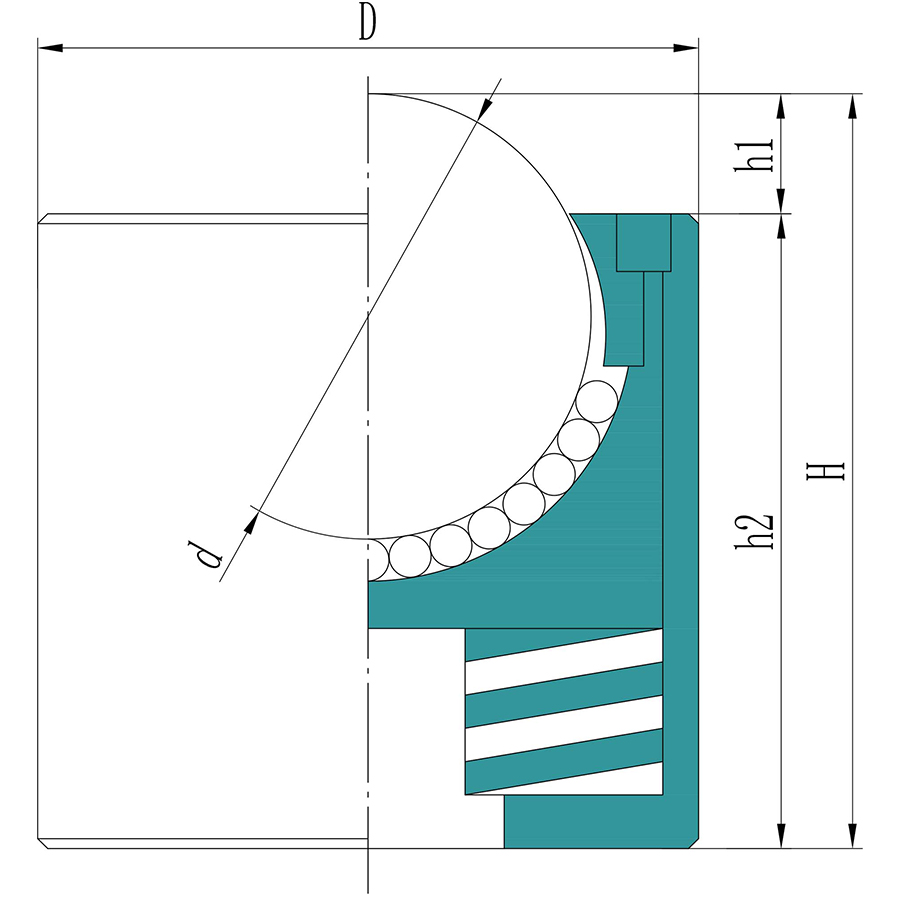

Main Ball Diameter (d)

9.52mm-25.4mm

Outside Diameter (D)

20mm-44mm

Weight

0.042kg-0.390kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Inner Spring Heavy Duty KSH Series

QIBR

Model Selection

Filters

NO. Product Product Number Overall Width (H) Material Outside diameter (D) Main Ball Diameter (d) Compressed (kgf)
1 KSH-10/ KSH-10 25 mm BS/CS 20 mm 9.52 mm 15 kgf
2 KSH-15/ KSH-15 36 mm BS/CS 28 mm 15.875 mm 40 kgf
3 KSH-20/ KSH-20 38 mm BS/CS 38 mm 19.05 mm 60 kgf
4 KSH-25/ KSH-25 45 mm BS/CS 44 mm 25.4 mm 100 kgf
