Machined Steel IA Series

Machined Steel IA Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Main Ball Diameter (d)

15.875mm-51mm

Outside Diameter (D)

30mm-91mm

Weight

0.120kg-4.000kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Machined Steel IA Series

QIBR

Model Selection

Filters

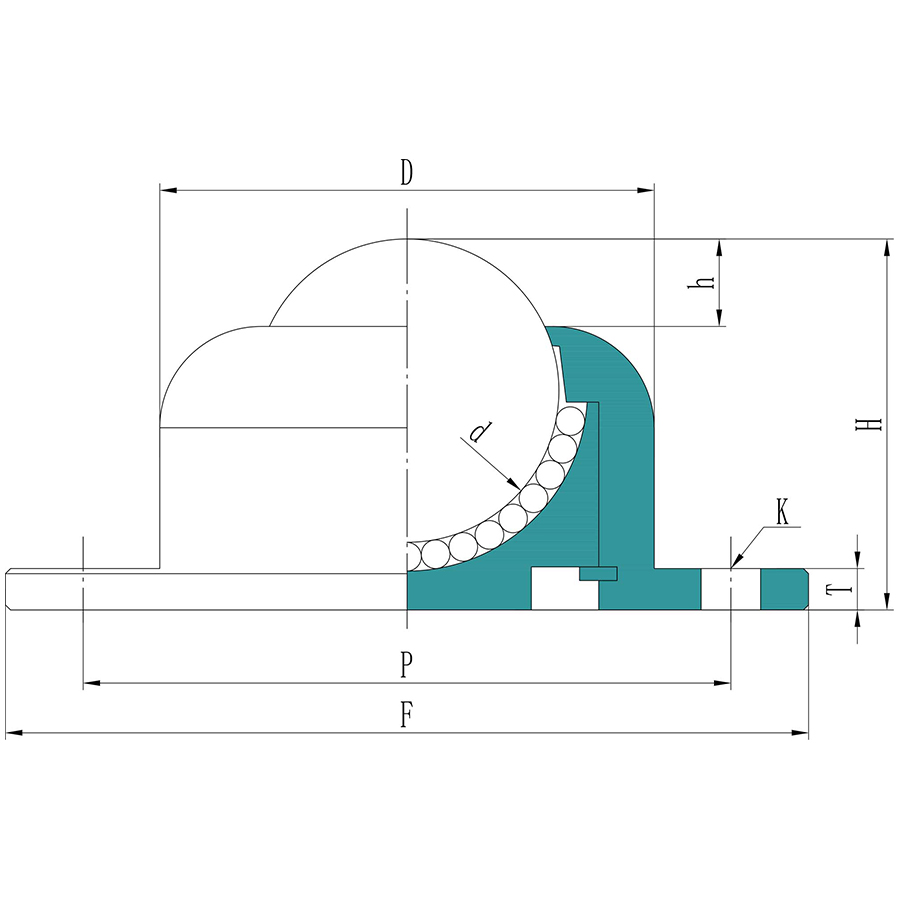

NO. Product Product Number Material Outside diameter (D) Suggest Loading Capacity (kg) Main Ball Diameter (d) Flange Diameter (F)
1 IA-15/ IA-15 BS/CS 30 mm 40 kg 15.875 mm 54.6 mm
2 IA-19/ IA-19 BS/CS 40 mm 100 kg 19.05 mm 67 mm
3 IA-25/ IA-25 BS/CS 45 mm 150 kg 25.4 mm 72 mm
4 IA-30/ IA-30 BS/CS 60 mm 200 kg 30.163 mm 94 mm
5 IA-38/ IA-38 BS/CS 60 mm 250 kg 38.1 mm 95 mm
6 IA-45/ IA-45 BS/CS 66 mm 350 kg 45 mm 104 mm
7 IA-51/ IA-51 BS/CS 91 mm 450 kg 51 mm 149 mm
