Inner Spring Heavy Duty KSF Series

Inner Spring Heavy Duty KSF Series

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Main Ball Diameter (d)

15.875mm-45mm

Outside Diameter (D)

28mm-66.5mm

Weight

0.130kg-2.120kg

Structures

main ball, shell

Brand

QIBR/OEM/Neutral

Material

Carbon steel, Bearing steel, GCr15, 440 Stainless steel, 304 Stainless steel, Plastic

ODM/OEM

Support

Applications

electronics, hardware, machinery, chemical industry,transmission systems, feeding systems, processing systems, processing machinery and packaging machinery auxiliary equipment.

Inner Spring Heavy Duty KSF Series

QIBR

Model Selection

Filters

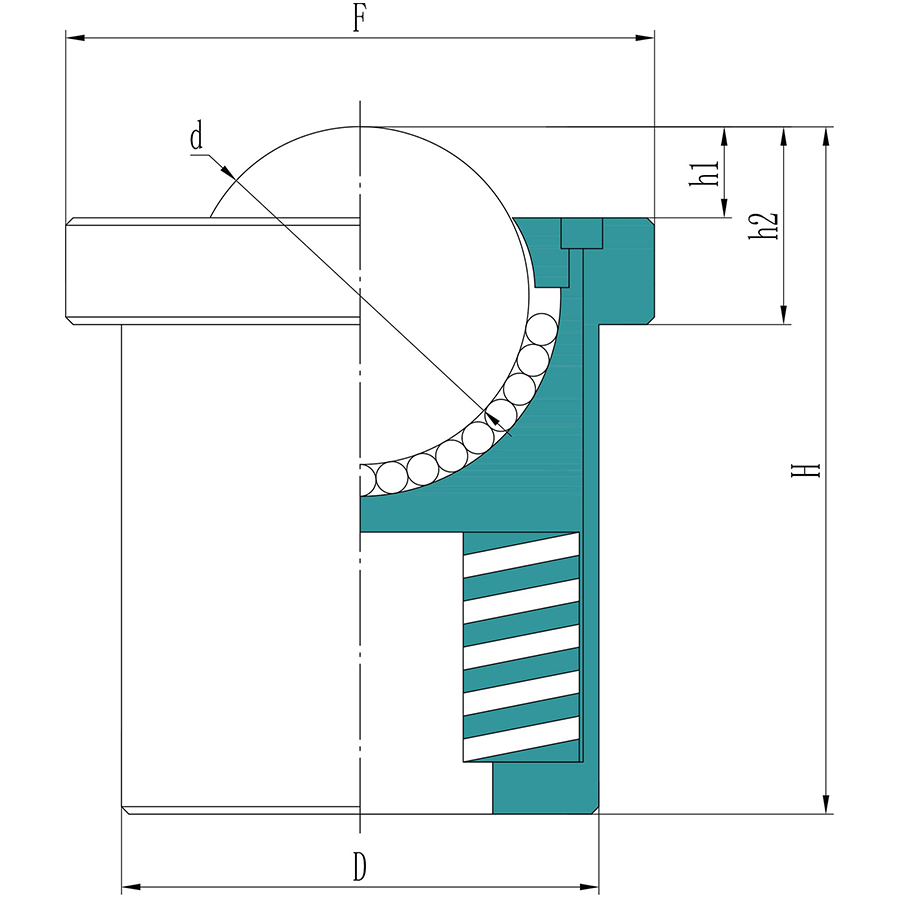

NO. Product Product Number Overall Width (H) Material Outside diameter (D) Main Ball Diameter (d) Compressed (kgf)
1 KSF-15/ KSF-15 36 mm BS/CS 28 mm 15.875 mm 40 kgf
2 KSF-22/ KSF-22 54 mm BS/CS 39 mm 22.225 mm 60 kgf
3 KSF-30/ KSF-30 67 mm BS/CS 49 mm 30.163 mm 100 kgf
4 KSF-45/ KSF-45 101.5 mm BS/CS 66.5 mm 45 mm 200 kgf
