Machined Steel Bolt D Series
QIBR
Model Selection

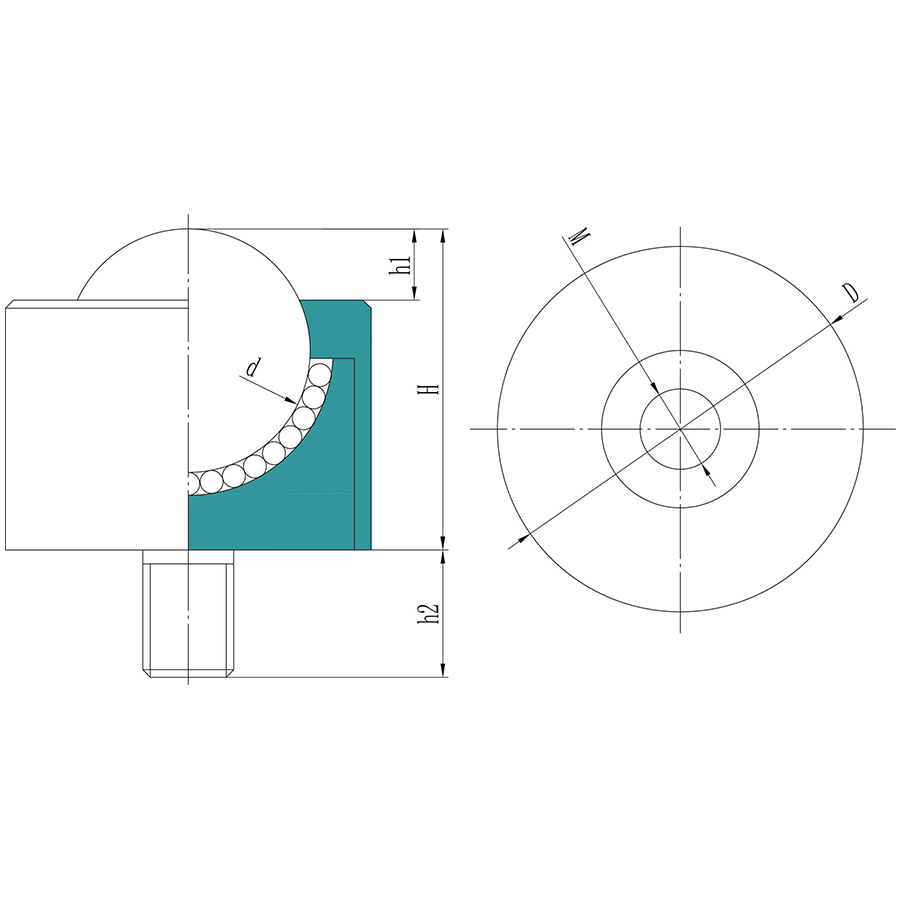

| NO. | Product | Product Number | Material | Outside diameter (D) | Suggest Loading Capacity (kg) | Main Ball Diameter (d) | Thread specification (M) |
|---|---|---|---|---|---|---|---|
| 1 |
|
D-2H(6) | BS/CS | 12 mm | 5 kg | 6.35 mm | M6 |
| 2 |
|
D-3H(9) | BS/CS | 15 mm | 7 kg | 9.525 mm | M6 |
| 3 |
|
D-4H(12) | BS/CS | 20 mm | 8 kg | 12.0 mm | M8 |
| 4 |
|
D-5H(15) | BS/CS | 24 mm | 15 kg | 15.875 mm | M6/M8 |
| 5 |
|
D-6H(19) | BS/CS | 32 mm | 40 kg | 19.05 mm | M8 |
| 6 |
|
D-8H(25) | BS/CS | 42 mm | 100 kg | 25.4 mm | M10 |
