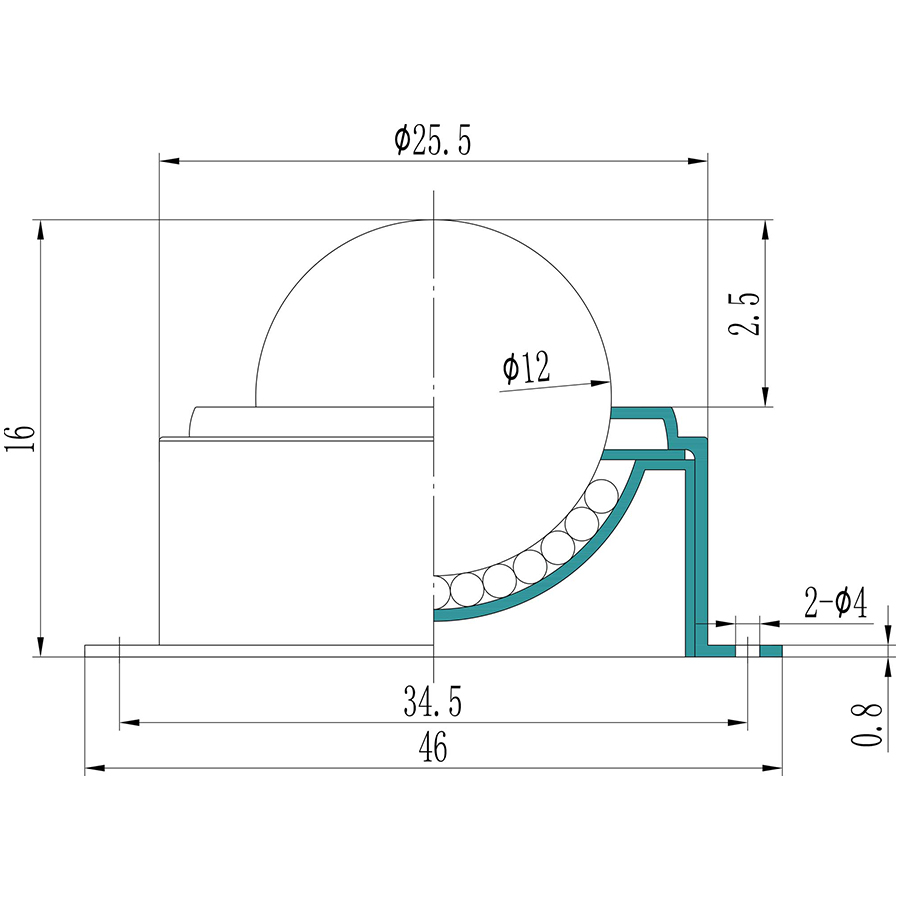

Pressed Metal CY Series
QIBR
Model Selection
| NO. | Product | Product Number | Weight (kg) | Material | Suggest Loading Capacity (kg) | Max. Loading Capacity (kg) |
|---|---|---|---|---|---|---|
| 1 |
|
CY-12A | 0.025 kg | CS/CS | 7 kg | 10 kg |
| 2 |
|
CY-12A | 0.021 kg | PL/CS | 3 kg | 5 kg |
| 3 |
|
CY-12A | 0.025 kg | SS/SS | 5 kg | 8 kg |
| 4 |
|
CY-12A | 0.021 kg | PL/SS | 3 kg | 5 kg |
| 5 |
|
CY-15A | 0.040 kg | CS/CS | 10 kg | 15 kg |
| 6 |
|
CY-15A | 0.030 kg | PL/CS | 5 kg | 10 kg |
| 7 |
|
CY-15A | 0.040 kg | SS/SS | 8 kg | 10 kg |
| 8 |
|
CY-15A | 0.030 kg | PL/SS | 5 kg | 10 kg |
| 9 |
|
CY-25A | 0.125 kg | CS/CS | 25 kg | 30 kg |
| 10 |
|
CY-25A | 0.070 kg | PL/CS | 12 kg | 18 kg |
| 11 |
|
CY-25A | 0.125 kg | SS/SS | 15 kg | 20 kg |
| 12 |
|
CY-25A | 0.070 kg | PL/SS | 12 kg | 18 kg |
| 13 |
|
CY-38A | 0.495 kg | CS/CS | 90 kg | 100 kg |
| 14 |
|
CY-38A | 0.350 kg | PL/CS | 50 kg | 60 kg |
| 15 |
|
CY-38A | 0.495 kg | SS/SS | 65 kg | 85 kg |
| 16 |
|
CY-38A | 0.350 kg | PL/SS | 50 kg | 60 kg |
| 17 |
|
CY-30A | 0.230 kg | CS/CS | 40 kg | 50 kg |
| 18 |
|
CY-30A | 0.135 kg | PL/CS | 20 kg | 25 kg |
| 19 |
|
CY-30A | 0.230 kg | SS/SS | 30 kg | 40 kg |
| 20 |
|
CY-30A | 0.135 kg | PL/SS | 20 kg | 25 kg |
| 21 |
|
CY-25B | 0.140 kg | CS/CS | 25 kg | 30 kg |
| 22 |
|
CY-25B | 0.085 kg | PL/CS | 12 kg | 18 kg |
| 23 |
|
CY-25B | 0.140 kg | SS/SS | 20 kg | 25 kg |
| 24 |
|
CY-25B | 0.085 kg | PL/SS | 12 kg | 18 kg |
| 25 |
|
CY-12B | 0.031 kg | CS/CS | 8 kg | 10 kg |
| 26 |
|
CY-12B | 0.025 kg | PL/CS | 4 kg | 5 kg |
| 27 |
|
CY-12B | 0.031 kg | SS/SS | 6 kg | 8 kg |
| 28 |
|
CY-12B | 0.025 kg | PL/SS | 4 kg | 5 kg |
| 29 |
|
CY-16B | 0.045 kg | CS/CS | 10 kg | 15 kg |
| 30 |
|
CY-16B | 0.035 kg | PL/CS | 5 kg | 8 kg |
| 31 |
|
CY-16B | 0.045 kg | SS/SS | 8 kg | 10 kg |
| 32 |
|
CY-16B | 0.035 kg | PL/SS | 5 kg | 8 kg |
| 33 |
|
CY-22B | 0.100 kg | CS/CS | 20 kg | 25 kg |
| 34 |
|
CY-22B | 0.050 kg | PL/CS | 10 kg | 15 kg |
| 35 |
|
CY-22B | 0.100 kg | SS/SS | 15 kg | 20 kg |
| 36 |
|
CY-22B | 0.050 kg | PL/SS | 10 kg | 15 kg |
| 37 |
|
CY-30B | 0.220 kg | CS/CS | 35 kg | 45 kg |
| 38 |
|
CY-30B | 0.120 kg | PL/CS | 17 kg | 20 kg |
| 39 |
|
CY-30B | 0.220 kg | SS/SS | 25 kg | 35 kg |
| 40 |
|
CY-30B | 0.120 kg | PL/SS | 17 kg | 20 kg |
| 41 |
|
CY-19D | 0.050 kg | CS/CS | 15 kg | 20 kg |
| 42 |
|
CY-19D | 0.030 kg | PL/CS | 7 kg | 10 kg |
| 43 |
|
CY-19D | 0.050 kg | SS/SS | 10 kg | 15 kg |
| 44 |
|
CY-19D | 0.030 kg | PL/SS | 7 kg | 10 kg |
| 45 |
|
CY-25D | 0.120 kg | CS/CS | 30 kg | 40 kg |
| 46 |
|
CY-25D | 0.060 kg | PL/CS | 15 kg | 20 kg |
| 47 |
|
CY-25D | 0.120 kg | SS/SS | 20 kg | 30 kg |
| 48 |
|
CY-25D | 0.060 kg | PL/SS | 15 kg | 20 kg |
| 49 |
|
CY-30H | 0.225 kg | CS/CS | 70 kg | 85 kg |
| 50 |
|
CY-30H | 0.135 kg | PL/CS | 35 kg | 40 kg |
| 51 |
|
CY-30H | 0.225 kg | SS/SS | 40 kg | 50 kg |
| 52 |
|
CY-30H | 0.135 kg | PL/SS | 35 kg | 40 kg |
| 53 |
|
CY-15H | 0.040 kg | CS/CS | 15 kg | 25 kg |
| 54 |
|
CY-15H | 0.035 kg | PL/CS | 7 kg | 12 kg |
| 55 |
|
CY-15H | 0.040 kg | SS/SS | 10 kg | 20 kg |
| 56 |
|
CY-15H | 0.035 kg | PL/SS | 7 kg | 10 kg |
| 57 |
|
CY-22H | 0.120 kg | CS/CS | 40 kg | 50 kg |
| 58 |
|
CY-22H | 0.100 kg | PL/CS | 20 kg | 25 kg |
| 59 |
|
CY-22H | 0.120 kg | SS/SS | 30 kg | 40 kg |
| 60 |
|
CY-22H | 0.100 kg | PL/SS | 20 kg | 25 kg |
| 61 |
|
CY-25H | 0.135 kg | CS/CS | 50 kg | 60 kg |
| 62 |
|
CY-25H | 0.100 kg | PL/CS | 30 kg | 35 kg |
| 63 |
|
CY-25H | 0.135 kg | SS/SS | 40 kg | 50 kg |
| 64 |
|
CY-25H | 0.100 kg | PL/SS | 30 kg | 35 kg |
