Измерители внутреннего зазора GB30 и GB10 для цилиндрических роликоподшипников
QIBR's internal clearance gauges in the GB 30 and GB 10 series are meticulously engineered for precision in assessing double row cylindrical roller bearings from NN 3006 K to NN 3068 K (GB 30 series) and single row cylindrical roller bearings from N 1010 K to NN 1020 K (GB 10 series). Additionally, GB 30 gauges can be effectively utilized for single row bearings in the N10 K series. These gauges excel in accurately measuring the outer envelope diameter of the roller set when rollers are in contact with the inner ring raceway, ensuring reliable dimensional checks crucial for maintaining optimal performance and assembly integrity in industrial applications.
QIBR
Model Selection

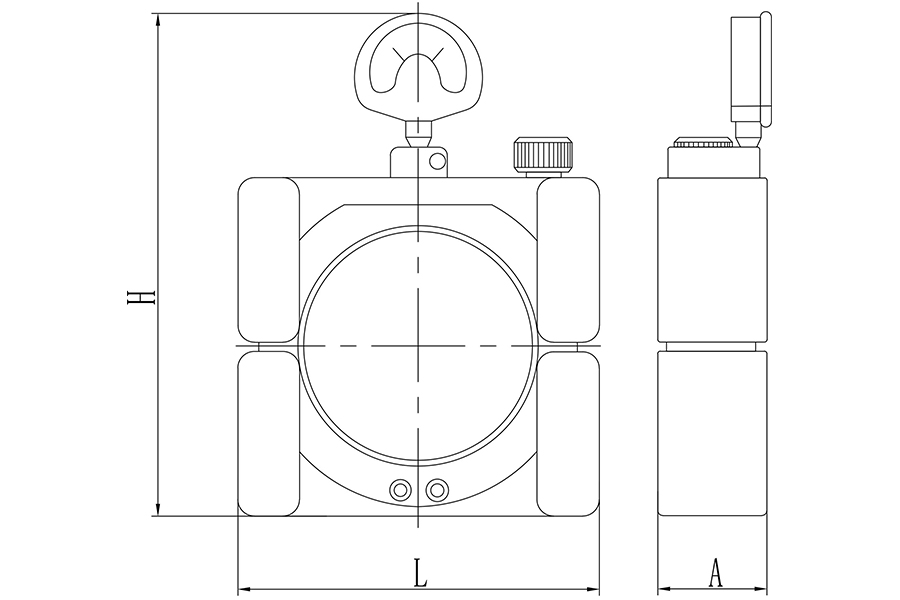

| NO. | Product | Product Number | Length(L) | Bearing Designation | Height(H) | Width(A) | Mass gauge |
|---|---|---|---|---|---|---|---|
| 1 |
|
GB 3006 | 107mm | NN 3006 KTN | 175mm | 36mm | 2kg |
| 2 |
|
GB 3007 | 112mm | NN 3007 K | 180mm | 37mm | 2kg |
| 3 |
|
GB 3008 | 117mm | NN 3008 KTN | 185mm | 39mm | 2kg |
| 4 |
|
GB 3009 | 129mm | NN 3009 KTN | 197mm | 40mm | 2.5kg |
| 5 |
|
GB 3010 | 134mm | NN 3010 KTN | 202mm | 40mm | 2.5kg |
| 6 |
|
GB 1010 | 134mm | N 1010 K | 207mm | 33mm | 2kg |
| 7 |
|
GB 3011 | 144mm | NN 3011 KTN | 212mm | 43mm | 3.5kg |
| 8 |
|
GB 1011 | 144mm | N 1011 K | 217mm | 35mm | 2.3kg |
| 9 |
|
GB 3012 | 152mm | NN 3012 KTN | 222mm | 44mm | 4kg |
| 10 |
|
GB 1012 | 152mm | N 1012 K | 225mm | 36mm | 2.7kg |
| 11 |
|
GB 3013 | 157mm | NN 3013 KTN | 225mm | 44mm | 4kg |
| 12 |
|
GB 1013 | 157mm | N 1013 K | 230mm | 36mm | 3kg |
| 13 |
|
GB 3014 | 164mm | NN 3014 KTN | 232mm | 48mm | 5kg |
| 14 |
|
GB 1014 | 164mm | N 1014 K | 237mm | 38mm | 3.2kg |
| 15 |
|
GB 3015 | 168mm | NN 3015 KTN | 236mm | 48mm | 5kg |
| 16 |
|
GB 1015 | 168mm | N 1015 K | 241mm | 38mm | 3.4kg |
| 17 |
|
GB 3016 | 176mm | NN 3016 KTN | 244mm | 52mm | 6kg |
| 18 |
|
GB 1016 | 176mm | N 1016 K | 249mm | 40mm | 4kg |
| 19 |
|
GB 3017 | 185mm | NN 3017 KTN | 253mm | 53mm | 6.5kg |
| 20 |
|
GB 3018 | 198mm | NN 3018 KTN | 266mm | 56mm | 8kg |
| 20 |
|
GB 1017 | 185mm | N 1017 K | 258mm | 41mm | 4.5kg |
| 22 |
|
GB 3019 | 203mm | NN 3019 KTN | 271mm | 56mm | 9kg |
| 22 |
|
GB 1018 | 198mm | N 1018 K | 271mm | 43mm | 5.5kg |
| 24 |
|
GB 3020 | 212mm | NN 3020 KTN | 280mm | 56mm | 9kg |
| 24 |
|
GB 1019 | 203mm | N 1019 K | 276mm | 43mm | 5.8kg |
| 26 |
|
GB 1020 | 212mm | N 1020 K | 285mm | 43mm | 6.5kg |
| 26 |
|
GB 3021 | 322mm | NN 3021 KTN | 350mm | 46mm | 10.5kg |
| 27 |
|
GB 3022 | 332mm | NN 3022 KTN | 362mm | 46mm | 11kg |
| 28 |
|
GB 3024 | 342mm | NN 3024 KTN | 376mm | 48mm | 12kg |
| 29 |
|
GB 3026 | 364mm | NN 3026 KTN | 396mm | 54mm | 13kg |
| 30 |
|
GB 3028 | 378mm | NN 3028 K | 410mm | 54mm | 14.5kg |
| 31 |
|
GB 3030 | 391mm | NN 3030 K | 426mm | 58mm | 15kg |
| 32 |
|
GB 3032 | 414mm | NN 3032 K | 446mm | 60mm | 16kg |
| 33 |
|
GB 3034 | 430mm | NN 3034 K | 464mm | 62mm | 17kg |
| 34 |
|
GB 3036 | 454mm | NN 3036 K | 490mm | 70mm | 17.5kg |
| 35 |
|
GB 3038 | 468mm | NN 3038 K | 504mm | 70mm | 18kg |
| 36 |
|
GB 3040 | 488mm | NN 3040 K | 520mm | 74mm | 19kg |
| 37 |
|
GB 3044 | 575mm | NN 3044 K | 514mm | 85mm | 26kg |
| 38 |
|
GB 3048 | 605mm | NN 3048 K | 534mm | 87mm | 28kg |
| 39 |
|
GB 3052 | 654mm | NN 3052 K | 580mm | 104mm | 41kg |
| 40 |
|
GB 3056 | 680mm | NN 3056 K | 607mm | 106mm | 45kg |
| 41 |
|
GB 3064 | 725mm | NN 3064 K | 640mm | 122mm | 60kg |
| 42 |
|
GB 3068 | 738mm | NN 3068 K | 665mm | 122mm | 64kg |
