Polyurethane Coated Bearing

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Внутренний диаметр

1.5mm-25mm

Наружный диаметр

7mm-80mm

Ширина

3mm-36mm

Динамическая радиальная нагрузка

2lbf-1888lbf

Материал покрытия

NDI/POM Polyurethane

Номинальная статическая нагрузка, радиальная

1lbf-1059lbf

Макс. частота вращения

7.8-78 (X1000 rpm)

Бренд

QIBR/OEM/Neutral

Polyurethane Coated Bearing

Filters

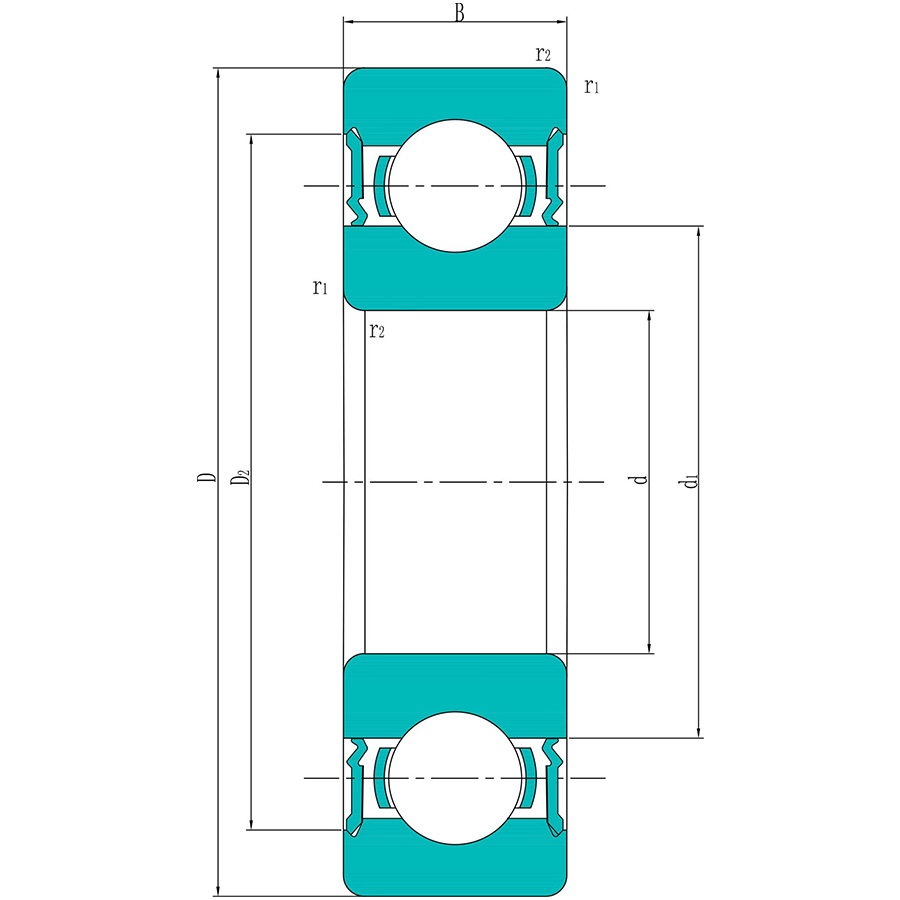

NO. Product Product Number Наружный диаметр (D) Отверстие Ширина Тип внутреннего кольца Тип уплотнения Материал щита
1 6817 6817 2rs 7 mm 1.5 mm 4 mm Normal Sealed NBR
2 6818 6818 2rs 8 mm 1.5 mm 4 mm Normal Sealed NBR
3 6203 6203 2rs 50 mm 17 mm 18 mm Normal Sealed NBR
4 6203 6203 2rs 60 mm 17 mm 18 mm Normal Sealed NBR
5 6903 6903 2rs 40 mm 17 mm 10 mm Normal Sealed NBR
6 683 683 2rs 10 mm 3mm 3 mm Normal Sealed NBR
7 683 683 2rs 12 mm 3 mm 3 mm Normal Sealed NBR
8 693 693 2rs 10 mm 3 mm 4 mm Normal Sealed NBR
9 693 693 2rs 10 mm 3 mm 5 mm Normal Sealed NBR
10 693 693 2rs 12 mm 3 mm 4 mm Normal Sealed NBR
11 604 604 2rs 16 mm 4 mm 5 mm Normal Sealed NBR
12 624 624 2rs 15 mm 4 mm 5 mm Normal Sealed NBR
13 624 624 2rs 18 mm 4 mm 5 mm Normal Sealed NBR
14 624 624 2rs 30 mm 4 mm 5 mm Normal Sealed NBR
15 684 684 2rs 11 mm 4 mm 4 mm Normal Sealed NBR
16 684 684 2rs 12 mm 4 mm 4 mm Normal Sealed NBR
17 684 684 2rs 12 mm 4 mm 6 mm Normal Sealed NBR
18 684 684 2rs 13 mm 4 mm 4 mm Normal Sealed NBR
19 684 684 2rs 13 mm 4 mm 8 mm Normal Sealed NBR
20 684 684 2rs 14 mm 4 mm 6 mm Normal Sealed NBR
21 605 605 2rs 18 mm 5 mm 5 mm Normal Sealed NBR
22 605 605 2rs 19 mm 5 mm 7 mm Normal Sealed NBR
23 605 605 2rs 21 mm 5 mm 8 mm Normal Sealed NBR
24 625 625 2rs 20 mm 5 mm 5 mm Normal Sealed NBR
25 625 625 2rs 22 mm 5 mm 5 mm Normal Sealed NBR
26 625 625 2rs 22 mm 5 mm 7 mm Normal Sealed NBR
27 625 625 2rs 22 mm 5 mm 9 mm Normal Sealed NBR
28 625 625 2rs 24 mm 5 mm 5 mm Normal Sealed NBR
29 625 625 2rs 25 mm 5 mm 9 mm Normal Sealed NBR
30 685 685 2rs 16 mm 5 mm 5 mm Normal Sealed NBR
31 685 685 2rs 16 mm 5 mm 8 mm Normal Sealed NBR
32 685 685 2rs 17 mm 5 mm 10 mm Normal Sealed NBR
33 695 695 2rs 18 mm 5 mm 5 mm Normal Sealed NBR
34 606 606 2rs 21 mm 6 mm 9 mm Normal Sealed NBR
35 606 606 2rs 22 mm 6 mm 6 mm Normal Sealed NBR
36 606 606 2rs 24 mm 6 mm 6 mm Normal Sealed NBR
37 626 626 2rs 24 mm 6 mm 24 mm Normal Sealed NBR
38 626 626 2rs 25 mm 6 mm 18 mm Normal Sealed NBR
39 626 626 2rs 26 mm 6 mm 10 mm Normal Sealed NBR
40 626 626 2rs 26 mm 6 mm 12 mm Normal Sealed NBR
41 626 626 2rs 26 mm 6 mm 8 mm Normal Sealed NBR
42 626 626 2rs 28 mm 6 mm 13 mm Normal Sealed NBR
43 626 626 2rs 28 mm 6 mm 6 mm Normal Sealed NBR
44 626 626 2rs 30 mm 6 mm 10 mm Normal Sealed NBR
45 626 626 2rs 30 mm 6 mm 12 mm Normal Sealed NBR
46 626 626 2rs 30 mm 6 mm 9 mm Normal Sealed NBR
47 626 626 2rs 33 mm 6 mm 7 mm Normal Sealed NBR
48 626 626 2rs 35 mm 6 mm 14 mm Normal Sealed NBR
49 626 626 2rs 40 mm 6 mm 10 mm Normal Sealed NBR
50 696 696 2rs 18 mm 6 mm 7 mm Normal Sealed NBR
51 696 696 2rs 19 mm 6 mm 5 mm Normal Sealed NBR
52 696 696 2rs 20 mm 6 mm 5 mm Normal Sealed NBR
53 696 696 2rs 20 mm 6 mm 6 mm Normal Sealed NBR
54 696 696 2rs 20 mm 6 mm 8 mm Normal Sealed NBR
55 696 696 2rs 22 mm 6 mm 5 mm Normal Sealed NBR
56 696 696 2rs 22 mm 6 mm 7 mm Normal Sealed NBR
57 608 608 2rs 24 mm 8 mm 7 mm Normal Sealed NBR
58 608 608 2rs 26 mm 8 mm 7 mm Normal Sealed NBR
59 608 608 2rs 28 mm 8 mm 10 mm Normal Sealed NBR
60 608 608 2rs 28 mm 8 mm 7 mm Normal Sealed NBR
61 608 608 2rs 28 mm 8 mm 8 mm Normal Sealed NBR
62 608 608 2rs 30 mm 8 mm 11 mm Normal Sealed NBR
63 608 608 2rs 30 mm 8 mm 7 mm Normal Sealed NBR
64 608 608 2rs 30 mm 8 mm 9 mm Normal Sealed NBR
65 608 608 2rs 32 mm 8 mm 10 mm Normal Sealed NBR
66 608 608 2rs 32 mm 8 mm 12 mm Normal Sealed NBR
67 608 608 2rs 35 mm 8 mm 12 mm Normal Sealed NBR
68 608 608 2rs 35 mm 8 mm 15 mm Normal Sealed NBR
69 608 608 2rs 35 mm 8 mm 18 mm Normal Sealed NBR
70 608 608 2rs 36 mm 8 mm 10 mm Normal Sealed NBR
71 608 608 2rs 40 mm 8 mm 11 mm Normal Sealed NBR
72 608 608 2rs 40 mm 8 mm 13 mm Normal Sealed NBR
73 608 608 2rs 45 mm 8 mm 14 mm Normal Sealed NBR
74 608 608 2rs 48 mm 8 mm 16 mm Normal Sealed NBR
75 628 628 2rs 45 mm 8 mm 8 mm Normal Sealed NBR
76 638 638 2rs 40 mm 8 mm 20 mm Normal Sealed NBR
77 638 638 2rs 45 mm 8 mm 20 mm Normal Sealed NBR
78 688 688 2rs 22 mm 8 mm 5 mm Normal Sealed NBR
79 688 688 2rs 22 mm 8 mm 7 mm Normal Sealed NBR
80 6000 6000 2rs 30 mm 10 mm 11 mm Normal Sealed NBR
81 6000 6000 2rs 32 mm 10 mm 10 mm Normal Sealed NBR
82 6000 6000 2rs 34 mm 10 mm 11 mm Normal Sealed NBR
83 6000 6000 2rs 35 mm 10 mm 11 mm Normal Sealed NBR
84 6000 6000 2rs 38 mm 10 mm 10 mm Normal Sealed NBR
85 6000 6000 2rs 40 mm 10 mm 10 mm Normal Sealed NBR
86 6200 6200 2rs 36 mm 10 mm 13 mm Normal Sealed NBR
87 6200 6200 2rs 36 mm 10 mm 16 mm Normal Sealed NBR
88 6200 6200 2rs 40 mm 10 mm 11 mm Normal Sealed NBR
89 6200 6200 2rs 40 mm 10 mm 12 mm Normal Sealed NBR
90 6200 6200 2rs 50 mm 10 mm 12 mm Normal Sealed NBR
91 6200 6200 2rs 60 mm 10 mm 12 mm Normal Sealed NBR
92 6900 6900 2rs 25.4 mm 10 mm 7 mm Normal Sealed NBR
93 6900 6900 2rs 26 mm 10 mm 10 mm Normal Sealed NBR
94 6001 6001 2rs 40 mm 12 mm 13 mm Normal Sealed NBR
95 6001 6001 2rs 45 mm 12 mm 14 mm Normal Sealed NBR
96 6201 6201 2rs 38 mm 12 mm 10 mm Normal Sealed NBR
97 6201 6201 2rs 40 mm 12 mm 18 mm Normal Sealed NBR
98 6201 6201 2rs 50 mm 12 mm 20 mm Normal Sealed NBR
99 6901 6901 2rs 28 mm 12 mm 8 mm Normal Sealed NBR
100 6901 6901 2rs 40 mm 15 mm 12 mm Normal Sealed NBR

Features and advantages of QIBR polyurethane coated bearing

The QIBR polyurethane coated bearing solves several key issues across various fields, mainly reflected in the following aspects:

1. Wear resistance

The QIBR polyurethane coated bearing has excellent wear resistance, which reduces wear over long-term operation and extends its service life, especially suitable for high-load or high-friction environments.

2. Shock absorption and noise reduction

The QIBR polyurethane coated bearing has good elasticity and buffering properties, effectively absorbing vibrations and reducing noise.

3. Oil and chemical corrosion resistance

The QIBR polyurethane coated bearing has good resistance to oils, solvents, and various chemicals.

4. Impact resistance

The high elasticity of the QIBR polyurethane coated bearing gives it good impact resistance, making it suitable for environments with impact loads.

 Performance improvements and solutions for QIBR polyurethane coated bearing

1. Enhanced wear resistance

By adding reinforcing materials such as carbon black, ceramics, and metal powders, the hardness and wear resistance of polyurethane can be improved, enabling it to maintain stable performance under higher loads and long-term use.

2. Improved oil and chemical resistance

Depending on the bearing’s operating environment, polyurethane formulas with stronger chemical corrosion and oil resistance can be selected, improving the bearing's lifespan in chemical and oil-contaminated environments.

3. Optimization of polyurethane layer thickness

The thickness of the polyurethane layer directly affects the performance of the outsourcing polyurethane bearing. An appropriate thickness can improve the bearing's impact resistance and wear resistance. However, too thick a polyurethane layer may reduce the bearing's rigidity and affect performance. A reasonable design of the polyurethane layer thickness can meet the requirements for shock absorption and wear resistance while maintaining the bearing's load capacity and operational stability.

4. Inner and outer ring structure optimization

By optimizing the geometric shapes and dimensions of the inner and outer rings, the polyurethane layer can be evenly stressed, preventing local over-wear.

Main application areas of QIBR polyurethane coated bearing

1. Automotive industry

Polyurethane bearings are widely used in the automotive industry, especially in suspension systems, drive systems, and brake systems. Due to the polyurethane material's ability to absorb vibrations, reduce noise, and provide strong durability, it is used in: automotive wheel axles and suspension systems, engine and transmission components, wheels, and brake systems.

2. Mechanical engineering

In mechanical engineering, polyurethane bearings are used in various mechanical equipment requiring wear resistance and high load capacity. Their elasticity and toughness enable them to operate under heavy loads and high-impact conditions.

3. Sports equipment

Polyurethane bearings are commonly used in various sports equipment and tools, especially in components that require wear resistance and impact resistance. These include: skateboards, skis, rollerblades, and other sporting goods.

4. Aerospace

In the aerospace industry, polyurethane bearings are used in some aircraft components due to their excellent high-temperature and wear-resistant properties. They can withstand high-speed operation and extreme environmental loads.

5. Robotics and automation

Polyurethane bearings are also widely used in robotics and automation equipment. They can reduce friction and noise while ensuring high-precision and high-speed motion, thus extending the service life of the equipment.
