GE..DO,GE..DO-2RS

Designed for reliability, this high-quality spherical plain bearing necessitates lubrication to maintain its exceptional functionality. Facilitating lubrication is made effortless with the inclusion of a dedicated lubrication groove on the outer ring, enhancing its longevity and performance over time.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material：

GCr15

Range of Inner Ring Dia.:

6-1000mm

Range of Outer Ring Dia.:

14-1320mm

Range of Weight:

0.004-1755kg

Brand:

QIBR/OEM/Neutral

Package:

QIBR/Standard Industrial Package/OEM

Applications:

steering systems, suspension systems, and linkage mechanisms

QIBR

Model Selection

Filters

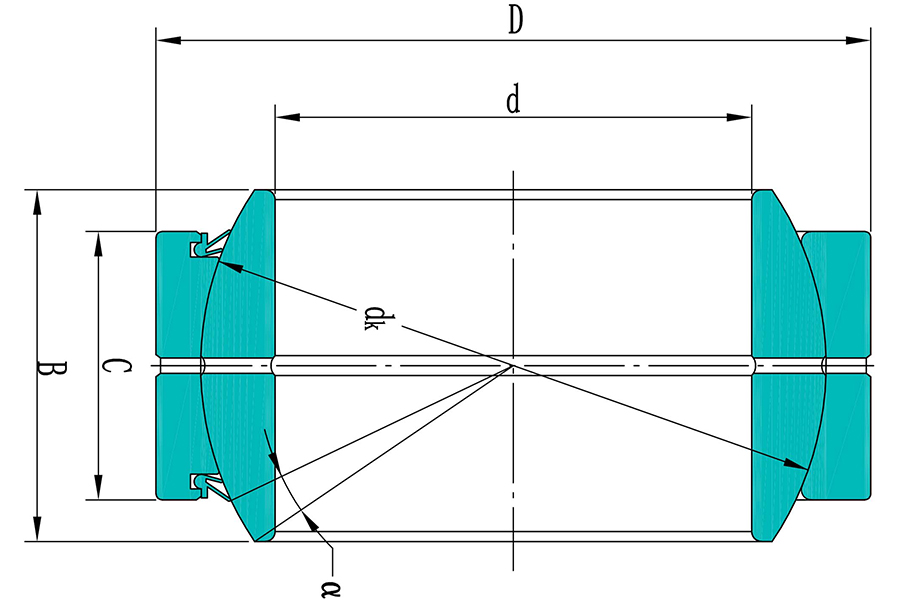

NO. Product Product Number Outer Diameter (D) Weight Width (B) Shaft (d)
1 GE6DO/ GE6DO 0.551"/14mm 0.009lbs/0.004kg 0.236"/6mm 0.236”/6mm
2 GE8DO/ GE8DO 0.63"/16mm 0.015lbs/0.007kg 0.315"/8mm 0.315”/8mm
3 GE10DO/ GE10DO 0.748"/19mm 0.024lbs/0.011kg 0.354"/9mm 0.394”/10mm
4 GE12DO/ GE12DO 0.866"/22mm 0.035lbs/0.016kg 0.394"/10mm 0.472”/12mm
5 GE15DO/ GE15DO 1.024"/26mm 0.055lbs/0.025kg 0.472"/12mm 0.591”/15mm
6 GE16DO/ GE16DO 1.181"/30mm 0.084lbs/0.038kg 0.551"/14mm 0.63”/16mm
7 GE17DO/ GE17DO 1.181"/30mm 0.090lbs/0.041kg 0.551"/14mm 0.669”/17mm
8 GE17DO2RS/ GE17DO2RS 1.181"/30mm 0.09lbs/0.04kg 0.551"/14mm 0.669”/17mm
9 GE20DO/ GE20DO 1.378"/35mm 0.135lbs/0.061kg 0.63"/16mm 0.787”/20mm
10 GE20DO-2RS/ GE20DO-2RS 1.378"/35mm 0.135lbs/0.061kg 0.63"/16mm 0.787”/20mm
11 GE25DO/ GE25DO 1.654"/42mm 0.243lbs/0.110kg 0.787"/20mm 0.984”/25mm
12 GE25DO-2RS/ GE25DO-2RS 1.654"/42mm 0.243lbs/0.110kg 0.787"/20mm 0.984”/25mm
13 GE30DO/ GE30DO 1.85"/47mm 0.309lbs/0.14kg 0.866"/22mm 1.181”/30mm
14 GE30DO-2RS/ GE30DO-2RS 1.85"/47mm 0.309lbs/0.14kg 0.866"/22mm 1.181”/30mm
15 GE35DO/ GE35DO 2.165"/55mm 0.485lbs/0.22kg 0.984"/25mm 1.378”/35mm
16 GE35DO-2RS/ GE35DO-2RS 2.165"/55mm 0.485lbs/0.22kg 0.984"/25mm 1.378”/35mm
17 GE40DO/ GE40DO 2.441"/62mm 0.662lbs/0.300kg 1.102"/28mm 1.575”/40mm
18 GE40DO-2RS/ GE40DO-2RS 2.441"/62mm 0.662lbs/0.300kg 1.102"/28mm 1.575”/40mm
19 GE45DO/ GE45DO 2.677"/68mm 0.882lbs/0.400kg 1.26"/32mm 1.772”/45mm
20 GE45DO-2RS/ GE45DO-2RS 2.677"/68mm 0.882lbs/0.400kg 1.26"/32mm 1.772”/45mm
21 GE50DO/ GE50DO 2.953"/75mm 1.191lbs/0.54kg 1.378"/35mm 1.969”/50mm
22 GE50DO-2RS/ GE50DO-2RS 2.953"/75mm 1.191lbs/0.54kg 1.378"/35mm 1.969”/50mm
23 GE60DO/ GE60DO 3.543"/90mm 2.205lbs/1.000kg 1.732"/44mm 2.362”/60mm
24 GE60DO-2RS/ GE60DO-2RS 3.543"/90mm 2.205lbs/1.000kg 1.732"/44mm 2.362”/60mm
25 GE70DO/ GE70DO 4.134"/105mm 3.308lbs/1.500kg 1.929"/49mm 2.756”/70mm
26 GE70DO-2RS/ GE70DO-2RS 4.134"/105mm 3.308lbs/1.500kg 1.929"/49mm 2.756”/70mm
27 GE80DO-2RS/ GE80DO-2RS 4.724"/120mm 4.815lbs/2.200kg 2.165"/55mm 3.15”/80mm
28 GE80DO/ GE80DO 4.724"/120mm 4.815lbs/2.200kg 2.165"/55mm 3.15”/80mm
29 GE90DO/ GE90DO 5.118"/130mm 5.95lbs/2.700kg 2.362"/60mm 3.543”/90mm
30 GE90DO-2RS/ GE90DO-2RS 5.118"/130mm 5.954lbs/2.700kg 2.362"/60mm 3.543”/90mm
31 GE100DO/ GE100DO 5.906"/150mm 9.48lbs/4.3kg 2.756"/70mm 3.937”/100mm
32 GE100DO-2RS/ GE100DO-2RS 5.906"/150mm 9.482lbs/4.3kg 2.756"/70mm 3.937”/100mm
33 GE110DO/ GE110DO 6.299"/160mm 10.36lbs/4.700kg 2.756"/70mm 4.331”/110mm
34 GE110DO-2RS/ GE110DO-2RS 6.299"/160mm 10.36lbs/4.700kg 2.756"/70mm 4.331”/110mm
35 GE120DO/ GE120DO 7.087"/180mm 17.64lbs/8.00kg 3.346"/85mm 4.724”/120mm
36 GE120DO-2RS/ GE120DO-2RS 7.087"/180mm 17.64lbs/8.00kg 3.346"/85mm 4.724”/120mm
37 GE140DO/ GE140DO 8.268"/210mm 24.26lbs/11.00kg 3.543"/90mm 5.512”/140mm
38 GE140DO-2RS/ GE140DO-2RS 8.268"/210mm 24.26lbs/11.00kg 3.543"/90mm 5.512”/140mm
39 GE160DO/ GE160DO 9.055‘’/230mm 29.77lbs/13.5kg 4.134"/105mm 6.299”/160mm
40 GE160DO-2RS/ GE160DO-2RS 9.055‘’/230mm 29.77lbs/13.5kg 4.134"/105mm 6.299”/160mm
41 GE180DO/ GE180DO 10.236‘’/260mm 40.79lbs/18.5kg 4.134"/105mm 7.087”/180mm
42 GE180DO-2RS/ GE180DO-2RS 10.236‘’/260mm 40.79lbs/18.5kg 4.134"/105mm 7.087”/180mm
43 GE200DO/ GE200DO 11.417‘’/290mm 61.74lbs/28kg 5.118"/130mm 7.874”/200mm
44 GE200DO-2RS/ GE200DO-2RS 11.417‘’/290mm 61.74lbs/28kg 5.118"/130mm 7.874”/200mm
45 GE220DO-2RS/ GE220DO-2RS 12.598‘’/320mm 78.28lbs/35.5kg 5.315"/135mm 8.661”/220mm
46 GE240DO-2RS/ GE240DO-2RS 13.386‘’/340mm 88.2lbs/40kg 5.512"/140mm 9.449”/240mm
47 GE260DO-2RS/ GE260DO-2RS 14.567‘’/370mm 110lbs/50kg 5.906"/150mm 10.236”/260mm
48 GE280DO-2RS/ GE280DO-2RS 15.748‘’/400mm 141lbs/64kg 6.102"/155mm 11.024”/280mm
49 GE300DO-2RS/ GE300DO-2RS 16.929‘’/430mm 165lbs/75kg 6.496"/165mm 11.811”/300mm
50 GE320DO/ GE320DO 17.323‘’/440mm 170lbs/77kg 6.299"/160mm 12.598”/320mm
51 GE340DO/ GE340DO 18.11‘’/460mm 181lbs/82kg 6.299"/160mm 13.386”/340mm
52 GE360DO/ GE360DO 18.898‘’/480mm 194lbs/88kg 6.299"/160mm 14.173”/360mm
53 GE380DO/ GE380DO 20.472‘’/520mm 280lbs/127kg 7.48/190mm 14.961”/380mm
54 GE400DO/ GE400DO 21.26’/540mm 291lbs/132kg 7.48/190mm 15.748”/400
55 GE420DO/ GE420DO 22.047'’/560mm 320lbs/145kg 7.48/190mm 16.535”/420
56 GE440DO/ GE440DO 23.622'’/600mm 419lbs/190kg 8.583/218mm 17.323”/440
58 GE480DO/ GE480DO 25.591'’/650mm 525lbs/237kg 9.055'/230mm 25.591''/650mm
59 GE500DO/ GE500DO 26.378'’/670mm 538lbs/244kg 9.055'/230mm 19.685''/500mm
60 GE530DO/ GE530DO 27.953'’/710mm 639lbs/290kg 9.567''/243mm 20.866''/530mm
61 GE560DO/ GE560DO 29.528'’/750mm 750lbs/340kg 10.157''/258mm 22.047''/560mm
62 GE600DO/ GE600DO 31.496'’/800mm 902lbs/409kg 10.709''/272mm 23.622''/600mm
63 GE630DO/ GE630DO 33.465'’/850mm 1160lbs/526kg 11.811''/300mm 24.803''/630mm
64 GE670DO/ GE670DO 35.433'’/900mm 1314lbs/596kg 12.126''/308mm 26.378''/670mm
65 GE710DO/ GE710DO 37.402'’/950mm 1528lbs/693kg 12.795''/325mm 27.953''/710mm
66 GE750DO/ GE750DO 39.37'’/1000mm 1729lbs/784kg 13.189''/335mm 29.528''/750mm
67 GE800DO/ GE800DO 41.732'’/1060mm 2040lbs/925kg 13.976''/355mm 31.496''/800mm
68 GE850DO/ GE850DO 44.094'’/1120mm 2326lbs/1055kg 14.37''/365mm 33.465''/850mm
69 GE900DO/ GE900DO 46.457'’/1180mm 2624lbs/1190kg 14.764''/375mm 35.433''/900mm
70 GE950DO/ GE950DO 49.213'’/1250mm 3140lbs/1424kg 15.748''/400mm 34.402''/950mm
71 GE1000DO/ GE1000DO 51.969'’/1320mm 3870lbs/1755kg 17.244''/438mm 39.37''/1000mm
