Needle Roller / Thrust Ball Bearings, Full Complement Thrust Bearing
The NX series consists of radial needle roller bearings and full complement thrust ball bearings for applications with moderate radial loads and light unidirectional axial loads. The low section height allows the shaft centerline to be precisely located like bearings used in multi-spindle drilling machines.
QIBR
Model Selection

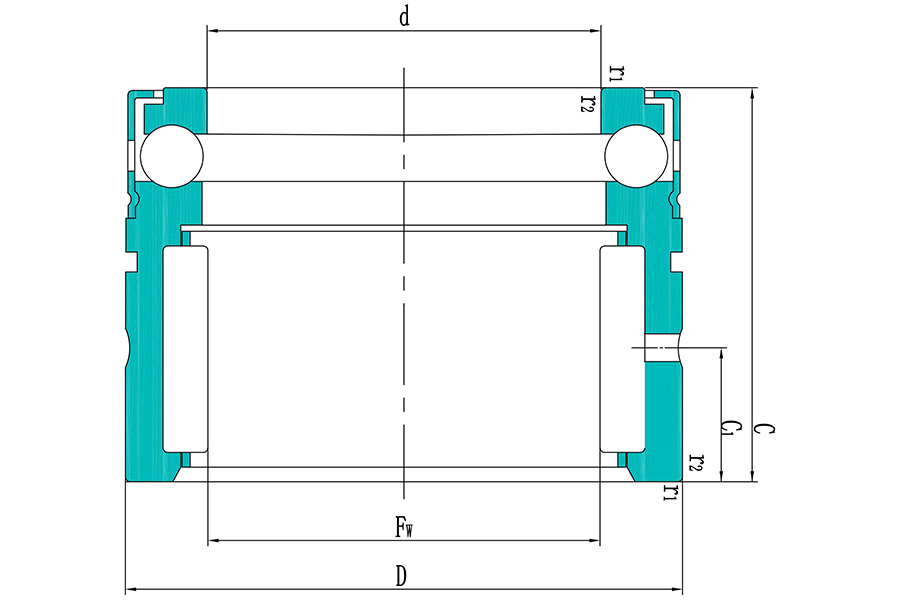

| NO. | Product | Product Number | Outside diameter (D) | Width(C) | Diameter Under Rollers(Fw) | Basic dynamic load rating, radial(C) | Basic static load rating, radial(C0) | Basic dynamic load rating, axial(C) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
NX 7TN | 14mm | 18mm | 7mm | 2.81kN | 2.75kN | 3.45kN |
| 2 |
|
NX 7 ZTN | 14mm | 18mm | 7mm | 2.81kN | 2.75kN | 3.45kN |
| 3 |
|
NX 10Z | 19mm | 18mm | 10mm | 4.95kN | 4.55kN | 5.07kN |
| 4 |
|
NX 10 | 19mm | 18mm | 10mm | 4.95kN | 4.55kN | 5.07kN |
| 5 |
|
NX 12Z | 21mm | 18mm | 12mm | 5.39kN | 5.2kN | 5.27kN |
| 6 |
|
NX 12 | 21mm | 18mm | 12mm | 5.39kN | 5.2kN | 5.27kN |
| 7 |
|
NX 15Z | 24mm | 28mm | 15mm | 11kN | 14kN | 6.18kN |
| 8 |
|
NX 15 | 24mm | 28mm | 15mm | 11kN | 14kN | 6.18kN |
| 9 |
|
NX 17Z | 26mm | 28mm | 17mm | 12.1kN | 16.6kN | 6.37kN |
| 10 |
|
NX 17 | 26mm | 28mm | 17mm | 12.1kN | 16.6kN | 6.37kN |
| 11 |
|
NX 20Z | 30mm | 28mm | 20mm | 13.2kN | 19.3kN | 7.8kN |
| 12 |
|
NX 20 | 30mm | 28mm | 20mm | 13.2kN | 19.3kN | 7.8kN |
| 13 |
|
NX 25Z | 37mm | 30mm | 25mm | 15.1kN | 24.5kN | 12.4kN |
| 14 |
|
NX 25 | 37mm | 30mm | 25mm | 15.1kN | 24.5kN | 12.4kN |
| 15 |
|
NX 30Z | 42mm | 30mm | 30mm | 22.9kN | 38kN | 12.7kN |
| 16 |
|
NX30 | 42mm | 30mm | 30mm | 22.9kN | 38kN | 12.7kN |
| 17 |
|
NX35Z | 47mm | 30mm | 35mm | 24.6kN | 45kN | 13.5kN |
| 18 |
|
NX35 | 47mm | 30mm | 35mm | 24.6kN | 45kN | 13.5kN |
