GE..LO

GE spherical plain bearing: an exceptional component engineered to excel under radial loads and misalignment. Crafted with precision, its unique design features a sliding alignment surface, ensuring optimal performance even in challenging conditions. This bearing is meticulously crafted to endure heavy static and fluctuating loads with ease.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material

GCr15

Range of Inner Ring Dia.:

12-320mm

Range of Outer Ring Dia.:

22-520mm

Range of Weight:

0.02-240kg

Brand:

QIBR/OEM/Neutral

Package:

QIBR/Standard Industrial Package/OEM

Applications:

steering systems, suspension systems, and linkage mechanisms

QIBR

Model Selection

Filters

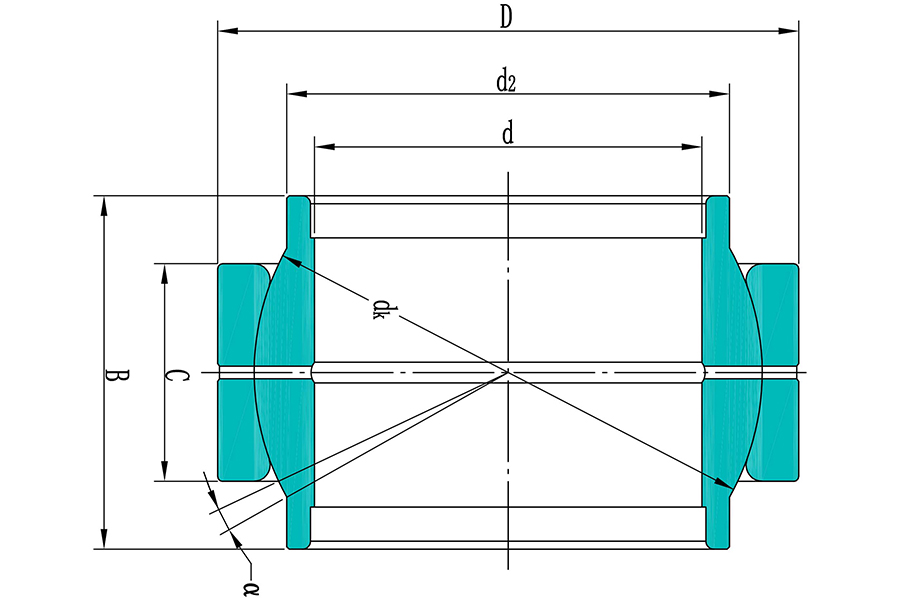

NO. Product Product Number Outer Diameter (D) Weight Width (B) Shaft (d) Width(C)
1 GE12LO/ GE12LO 0.866"/22mm 0.044lbs/0.02kg 0.472"/12mm 0.472”/12mm 0.276"/7mm
2 GE16LO/ GE16LO 1.102''/28mm 0.066lbs/0.03kg 0.630"/16mm 0.630”/16mm 0.354"/9mm
3 GE20LO/ GE20LO 1.378''/35mm 0.154lbs/0.07kg 0.787"/20mm 0.787”/20mm 0.472"/12mm
4 GE25LO/ GE25LO 1.654''/42mm 0.265lbs/0.12kg 0.984"/25mm 0.984”/25mm 0.630"/16mm
5 GE32LO/ GE32LO 2.047''/52mm 0.441lbs/0.2kg 1.260"/32mm 1.260”/32mm 0.709"/18mm
6 GE40LO/ GE40LO 2.441''/62mm 0.75lbs/0.34kg 1.575"/40mm 1.575”/40mm 0.866"/22mm
7 GE50LO/ GE50LO 2.953''/75mm 0.56lbs/0.4kg 1.969"/50mm 1.969”/50mm 1.102"/28mm
8 GE63LO/ GE63LO 3.740''/95mm 2.646lbs/1.2kg 2.480"/63mm 2.480”/63mm 1.417"/36mm
9 GE70LO/ GE70LO 4.134''/105mm 3.749lbs/1.7kg 2.756"/70mm 2.756''/70mm 1.575"/40mm
10 GE80LO/ GE80LO 4.724''/120mm 5.292lbs/2.4kg 3.150"/80mm 3.15''/80mm 1.772"/45mm
11 GE90LO/ GE90LO 5.118''/130mm 7.056lbs/3.2kg 3.543"/90mm 3.543''/90mm 1.969"/50mm
12 GE100LO/ GE100LO 5.906''/150mm 10.58lbs/4.8kg 3.937"/100mm 3.937''/100mm 2.165"/55mm
13 GE110LO/ GE110LO 6.299''/160mm 12.79lbs/5.8kg 4.331"/110mm 4.331''/110mm 2.165"/55mm
14 GE125LO/ GE125LO 7.087''/180mm 18.74lbs/8.5kg 4.921"/125mm 4.921''/125mm 2.756"/70mm
15 GE160LO/ GE160LO 9.055''/230mm 36.38lbs/16.5kg 6.299"/160mm 6.299''/160mm 3.150"/80mm
16 GE200LO/ GE200LO 11.417''/290mm 70.56lbs/32kg 7.874"/200mm 7.874''/200mm 3.937"/100mm
17 GE250LO/ GE250LO 15.748''/400mm 218.30lbs/99kg 9.843"/250mm 9.843''/250mm 4.724"/120mm
18 GE320LO/ GE320LO 20.472''/520mm 529.20lbs/240kg 12.598"/320mm 12.598''/320mm 6.299"/160mm
