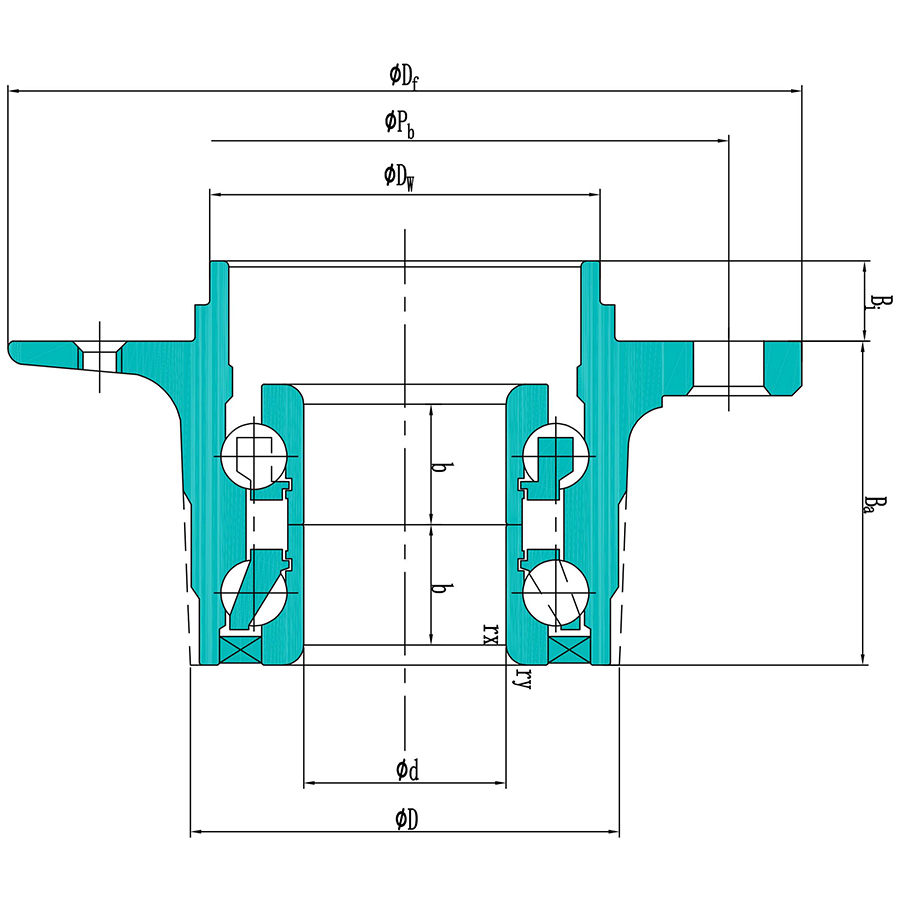

Hub Generation II

Hub bearing is one of the key components of automobiles, and its role is not only limited to bearing axial loads, but also includes radial loads. This dual load bearing capability makes hub bearings play a vital role in the vehicle driving process.

QIBR

Model Selection

Filters

NO. Product Product Number Outer Diameter (D) Inner Diameter (d) Mass (approx.) Width of Outer ring (B)
1 28BWK16A-Y-2+X3 28BWK16A-Y-2+X3 F 66.4mm 28mm 1.5kg 67.9mm
2 28BWK16A-Y-2+X4 28BWK16A-Y-2+X4 F 66.4mm 28mm 1.5kg 67.9mm
3 ZA-28BWK19B-Y-2CP-01/ ZA-28BWK19B-Y-2CP-01 62.5mm 28mm 1.5kg 66mm
4 ZA-28BWK20A-Y-2CP-01/ ZA-28BWK20A-Y-2CP-01 62.5mm 28mm 1.683kg 66mm
5 ZA-30BWK21 ZA-30BWK21 D-Y-A-01 E 67.4mm 30mm 1.09kg 67.8mm
6 ZA-32BWK08A-Y-2-01 ZA-32BWK08A-Y-2-01 H 72mm 32mm 2.18kg 69.5mm
7 ZA-32BWK04B-Y-2-01 ZA-32BWK04B-Y-2-01 E 78mm 32mm 1.59kg 60.3mm
8 32BWK09-Y-2CP17-01 32BWK09-Y-2CP17-01 E 78mm 32mm 1.9kg 69.3mm
9 32BWK10-Y-2CP17-01 32BWK10-Y-2CP17-01 H 78mm 32mm 2.06kg 75.3mm
10 ZA-28BWK12-Y-CP4*01/ ZA-28BWK12-Y-CP4*01 65mm 28mm 1.05kg 51.8mm
11 ZA-30BWK17A-Y-2CP-01/ ZA-30BWK17A-Y-2CP-01 66mm 30mm 1.2kg 51.8mm
12 ZA-30BWK10-G-3-Y--01/ ZA-30BWK10-G-3-Y--01 66mm 30mm 1.02kg 51.8mm
13 ZA-35BWK04-Y-2CA15**/ ZA-35BWK04-Y-2CA15** 69mm 35mm 1.05kg 53mm
14 ZA-38BWK01J-Y-2CA-01/ ZA-38BWK01J-Y-2CA-01 87.4mm 38mm 1.35kg 58mm
15 ZA-43BWK03D-Y-2CA-01/ ZA-43BWK03D-Y-2CA-01 83mm 43mm 1.22kg 42.5mm
16 ZA-/H0/50KWH01M-Y-01/ ZA-/H0/50KWH01M-Y-01 86mm 50mm 1.5kg 55mm
17 ZA-/H0/50KWH02A-Y-01/ ZA-/H0/50KWH02A-Y-01 84mm 50mm 1.5kg 55mm
18 ZA-/H0/52KWH01-Y--01/ ZA-/H0/52KWH01-Y--01 91mm 52mm 1.8kg 53mm
19 ZA-54KWH01M-Y-2CA-01/ ZA-54KWH01M-Y-2CA-01 96mm 54mm 2kg 50.9mm
20 ZA-54KWH02D-Y-2CA-01/ ZA-54KWH02D-Y-2CA-01 90mm 54mm 2kg 59mm
