Bearing with combined bolt and OILAMID insert Type KB P & Type KB PR P
These bearings have large radial and axial load carrying capacities and are highly replaceable, making them ideal for use in a wide range of equipment requiring high load carrying capacity and simplified mounting.
QIBR
Model Selection

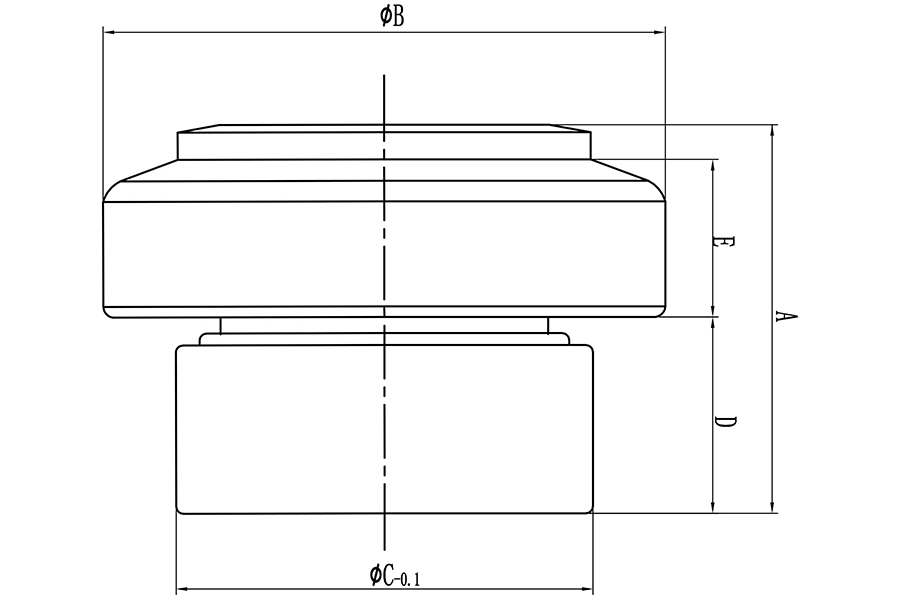

| NO. | Product | Product Number | Weight | Outer diameter B | Bolt diameter C | Overall height A |
|---|---|---|---|---|---|---|
| 1 |
|
KB 4.072 P | 0.53kg | 62.5mm | 50mm | 43mm, without washers |
| 2 |
|
KB 4.073 P | 1kg | 70.1mm | 60mm | 55mm, without washers |
| 3 |
|
KB 4.074 P | 1.1kg | 78.1mm | 60mm | 54.5mm, without washers |
| 4 |
|
KB 4.076 P | 1.93kg | 88.4mm | 70mm | 68mm, without washers |
| 5 |
|
KB 4.0784 P | 3kg | 107.7mm | 80mm | 75mm, without washers |
| 6 |
|
KB 4.079 P | 4.72kg | 123mm | 100mm | 79.2mm, without washers |
| 7 |
|
KB 4.080 P | 7.8kg | 149mm | 120mm | 82mm, without washers |
| 8 |
|
KB PR 4.072 P | 0.56kg | 64.8mm | 50mm | 43mm, without washers |
| 9 |
|
KB PR 4.073 P | 1.05kg | 73.8mm | 60mm | 55mm, without washers |
| 10 |
|
KB PR 4.074 P | 1.2kg | 81.8mm | 60mm | 54.5mm, without washers |
| 11 |
|
KB PR 4.076 P | 2kg | 92.8mm | 70mm | 68mm, without washers |
| 12 |
|
KB PR 4.0784 P | 3.14kg | 111.8mm | 80mm | 75mm, without washers |
| 13 |
|
KB PR 4.079 P | 4.9kg | 127.8mm | 100mm | 79.2mm, without washers |
| 14 |
|
KB PR 4.080 P | 8.1kg | 153.8mm | 120mm | 82mm, without washers |
