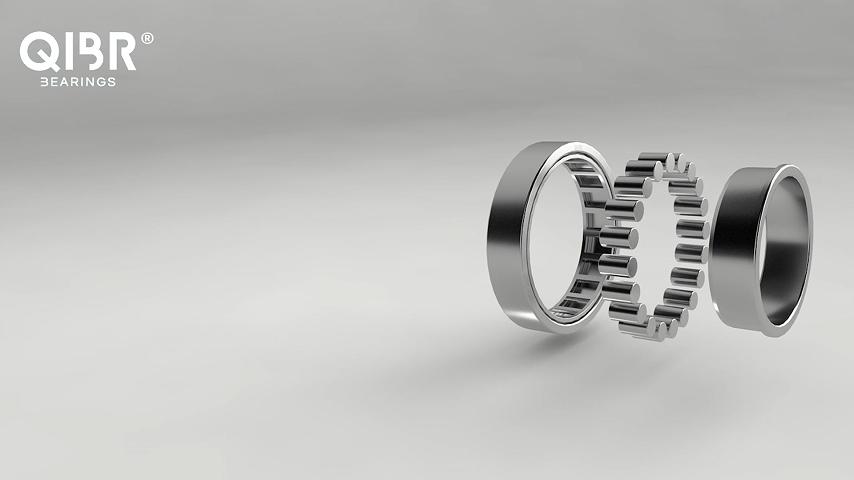

Standard single row cylindrical roller bearings

Single row cylindrical roller bearings include high radial load capacity, ability to accommodate axial displacement in one direction, low friction, and relatively high speed capabilities, making them suitable for a wide range of industrial applications such as motors, pumps, gearboxes, and machine tools. Additionally, their design simplicity and ease of assembly contribute to their widespread use in various machinery and equipment.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh,DIN / VDEh

Material：

GCr15

Range of Inner Ring Dia.:

100-240 mm

Range of Outer Ring Dia.:

180-500 mm

Range of Weight:

5.1-143kg

Brand:

QIBR/OEM/Neutral

Package:

QIBR/Standard Industrial Package/OEM

Applications:

Large and medium-sized electric motors, Locomotive vehicles, Machine tool spindles, Internal combustion engines, Generators, Gas turbines, Gearboxes, Rolling mills, Vibrating screens, lifting and transportation machinery, etc.

QIBR Model Selection

Filters

Outer Diameter (D)

Inner Diameter (d)

Mass

Basic dynamic load ratings (C)

Basic static load ratings (C0)

NO.	Product Number	Outer Diameter (D)	Inner Diameter (d)	Mass	Basic dynamic load ratings (C)	Basic static load ratings (C0)
1	NU 202 ECP	35mm	15mm	0.047 kg	12.5 kN	10.2 kN
2	NJ 202 ECP	35mm	15mm	0.048 kg	12.5 kN	10.2 kN
3	N 203 ECP	40mm	17mm	0.066kg	20kN	14.3kN
4	NU 203 ECP	40mm	17mm	0.068kg	20kN	14.3kN
5	NJ 203 ECP	40mm	17mm	0.069kg	20kN	14.3kN
6	NUP 203 ECP	40mm	17mm	0.072kg	20kN	14.3kN
7	NU 2203 ECP	40mm	17mm	0.087kg	27.5kN	21.6kN
8	NJ 2203 ECP	40mm	17mm	0.093kg	27.5kN	21.6kN
9	NUP 2203 ECP	40mm	17mm	0.097kg	27.5kN	21.6kN
10	N 303 ECP	47mm	17mm	0.12kg	28.5kN	20.4kN
11	NJ 303 ECP	47mm	17mm	0.12kg	28.5kN	20.4kN
12	NU 303 ECP	47mm	17mm	0.12kg	28.5kN	20.4kN
13	N 204 ECP	47mm	20mm	0.11kg	28.5kN	22kN
14	NJ 204 ECP	47mm	20mm	0.11kg	28.5kN	22kN
15	NU 204 ECP	47mm	20mm	0.11kg	28.5kN	22kN
16	NUP 204 ECP	47mm	20mm	0.12kg	28.5kN	22kN
17	NJ 2204 ECP	47mm	20mm	0.14kg	34.5kN	27.5kN
18	NU 2204 ECP	47mm	20mm	0.14kg	34.5kN	27.5kN
19	NU 304 ECP	52mm	20mm	0.14kg	35.5kN	26kN
20	N 304 ECP	52mm	20mm	0.15kg	35.5kN	26kN
21	NJ 304 ECP	52mm	20mm	0.15kg	35.5kN	26kN
22	NUP 304 ECP	52mm	20mm	0.16kg	35.5kN	26kN
23	NU 2304 ECP	52mm	20mm	0.21kg	47.5kN	38kN
24	NJ 2304 ECP	52mm	20mm	0.22kg	47.5kN	38kN
25	NUP 2304 ECP	52mm	20mm	0.22kg	47.5kN	38kN
26	NU 1005	47mm	25mm	0.082kg	14.2kN	13.2kN
27	N 205 ECP	52mm	25mm	0.13kg	32.5kN	27kN
28	NU 205 ECP	52mm	25mm	0.13kg	32.5kN	27kN
29	NJ 205 ECP	52mm	25mm	0.14kg	32.5kN	27kN
30	NUP 205 ECP	52mm	25mm	0.14kg	32.5kN	27kN
31	NU 2205 ECP	52mm	25mm	0.16kg	39kN	34kN
32	NJ 2205 ECP	52mm	25mm	0.17kg	39kN	34kN
33	NUP 2205 ECP	52mm	25mm	0.17kg	39kN	34kN
34	N 305 ECP	62mm	25mm	0.23kg	46.5kN	36.5kN
35	NU 305 ECP	62mm	25mm	0.23kg	46.5kN	36.5kN
36	NJ 305 ECP	62mm	25mm	0.24kg	46.5kN	36.5kN
37	NUP 305 ECP	62mm	25mm	0.25kg	46.5kN	36.5kN
38	NU 2305 ECP	62mm	25mm	0.34kg	64kN	55kN
39	NJ 2305 ECP	62mm	25mm	0.35kg	64kN	55kN
40	NUP 2305 ECP	62mm	25mm	0.36kg	64kN	55kN
41	NU 1006	55mm	30mm	0.11kg	17.9kN	17.3kN
42	N 206 ECP	62mm	30mm	0.2kg	44kN	36.5kN
43	NU 206 ECP	62mm	30mm	0.2kg	44kN	36.5kN
44	NJ 206 ECP	62mm	30mm	0.2kg	44kN	36.5kN
45	NUP 206 ECP	62mm	30mm	0.21kg	44kN	36.5kN
46	NJ 2206 ECP	62mm	30mm	0.26kg	55kN	49kN
47	NU 2206 ECP	62mm	30mm	0.26kg	55kN	49kN
48	NUP 2206 ECP	62mm	30mm	0.27kg	55kN	49kN
49	N 306 ECP	72mm	30mm	0.36kg	58.5kN	48kN
50	NU 306 ECP	72mm	30mm	0.36kg	58.5kN	48kN
51	NJ 306 ECP	72mm	30mm	0.37kg	58.5kN	48kN
52	NUP 306 ECP	72mm	30mm	0.38kg	58.5kN	48kN
53	NU 2306 ECP	72mm	30mm	0.53kg	83kN	75kN
54	NJ 2306 ECP	72mm	30mm	0.54kg	83kN	75kN
55	NUP 2306 ECP	72mm	30mm	0.54kg	83kN	75kN
56	NU 406	90mm	30mm	0.75kg	60.5kN	53kN
57	NJ 406	90mm	30mm	0.78kg	60.5kN	53kN
58	NU 1007 ECP	62mm	35mm	0.16kg	35.8kN	38kN
59	NU 207 ECP	72mm	35mm	0.29kg	56kN	48kN
60	N 207 ECP	72mm	35mm	0.3kg	56kN	48kN
61	NJ 207 ECP	72mm	35mm	0.3kg	56kN	48kN
62	NUP 207 ECP	72mm	35mm	0.31kg	56kN	48kN
63	NU 2207 ECP	72mm	35mm	0.4kg	69.5kN	63kN
64	NJ 2207 ECP	72mm	35mm	0.41kg	69.5kN	63kN
65	NUP 2207 ECP	72mm	35mm	0.42kg	69.5kN	63kN
66	NU 307 ECP	80mm	35mm	0.47kg	75kN	63kN
67	N 307 ECP	80mm	35mm	0.48kg	75kN	63kN
68	NJ 307 ECP	80mm	35mm	0.49kg	75kN	63kN
69	NUP 307 ECP	80mm	35mm	0.49kg	75kN	63kN
70	NU 2307 ECP	80mm	35mm	0.72kg	106kN	98kN
71	NJ 2307 ECP	80mm	35mm	0.73kg	106kN	98kN
72	NUP 2307 ECP	80mm	35mm	0.76kg	106kN	98kN
73	NJ 407	100mm	35mm	1kg	76.5kN	69.5kN
74	NU 407	100mm	35mm	1kg	76.5kN	69.5kN
75	NU 1008 ML	68mm	40mm	0.23kg	25.1kN	26kN
76	N 208 ECP	80mm	40mm	0.37kg	62kN	53kN
77	NU 208 ECP	80mm	40mm	0.37kg	62kN	53kN
78	NJ 208 ECP	80mm	40mm	0.38kg	62kN	53kN
79	NUP 208 ECP	80mm	40mm	0.39kg	62kN	53kN
80	NU 2208 ECP	80mm	40mm	0.49kg	81.5kN	75kN
81	NJ 2208 ECP	80mm	40mm	0.5kg	81.5kN	75kN
82	NUP 2208 ECP	80mm	40mm	0.51kg	81.5kN	75kN
83	N 308 ECP	90mm	40mm	0.65kg	93kN	78kN
84	NU 308 ECP	90mm	40mm	0.65kg	93kN	78kN
85	NJ 308 ECP	90mm	40mm	0.67kg	93kN	78kN
86	NUP 308 ECP	90mm	40mm	0.68kg	93kN	78kN
87	NU 2308 ECP	90mm	40mm	0.93kg	129kN	120kN
88	NJ 2308 ECP	90mm	40mm	0.95kg	129kN	120kN
89	NUP 2308 ECP	90mm	40mm	0.98kg	129kN	120kN
90	NJ 408	110mm	40mm	1.3kg	96.8kN	90kN
91	NU 408	110mm	40mm	1.3kg	96.8kN	90kN
92	NU 1009 ECP	75mm	45mm	0.25kg	44.6kN	52kN
93	NJ 1009 ECP	75mm	45mm	0.26kg	44.6kN	52kN
94	NU 209 ECP	85mm	45mm	0.42kg	69.5kN	64kN
95	N 209 ECP	85mm	45mm	0.43kg	69.5kN	64kN
96	NJ 209 ECP	85mm	45mm	0.44kg	69.5kN	64kN
97	NUP 209 ECP	85mm	45mm	0.44kg	69.5kN	64kN
98	NU 2209 ECP	85mm	45mm	0.52kg	85kN	81.5kN
99	NJ 2209 ECP	85mm	45mm	0.54kg	85kN	81.5kN
100	NUP 2209 ECP	85mm	45mm	0.55kg	85kN	81.5kN
