Stainless Steel Thin-Section Ball Bearing Series – Type A
Stainless Steel Thin-Section Ball Bearings are precision-engineered bearings specifically designed with reduced cross-sectional dimensions and constructed using high-quality stainless steel materials.
These bearings offer excellent corrosion resistance and durability, making them suitable for use in harsh environments where exposure to moisture, chemicals, or other corrosive elements is a concern.
Stainless Steel Thin-Section Ball Bearings maintain high levels of precision and reliability while providing reliable performance in a wide range of applications, including food processing equipment, medical devices, marine applications, and semiconductor manufacturing equipment.
QIBR

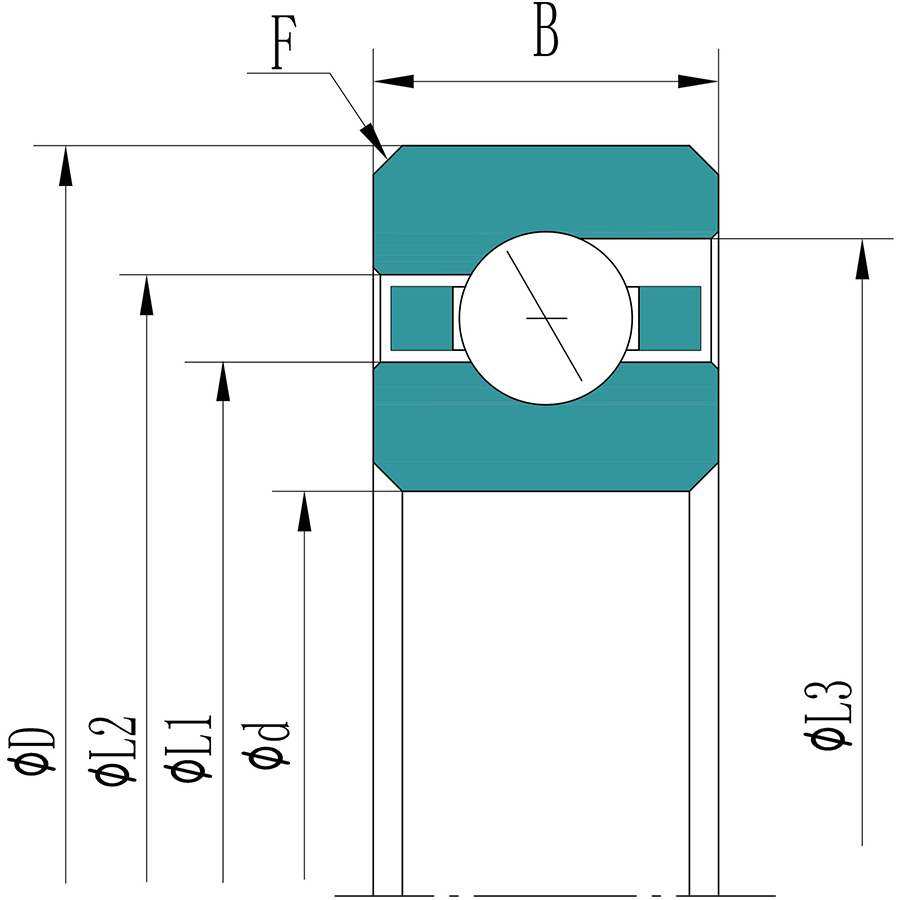

Model Selection
| NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Width(B) | Land Diameters (L1) | Land Diameters(L2) | Mass(lbs) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
QSAA10AG0 | 1.375(in) | 1.000(in) | 0.1875(in) | 1.140(in) | 1.235(in) | 0.025 |
| 2 |
|
QSAA15AG0 | 1.875(in) | 1.500(in) | 0.1875(in) | 1.640(in) | 1.735(in) | 0.038 |
| 3 |
|
QSAA17AG0 | 2.125(in) | 1.750(in) | 0.1875(in) | 1.890(in) | 1.985(in) | 0.045 |
| 4 |
|
QSA020AR0 | 2.500(in) | 2.000(in) | 0.250(in) | 2.186(in) | 2.314(in) | 0.10 |
| 5 |
|
QSA025AR0 | 3.000(in) | 2.500(in) | 0.250(in) | 2.686(in) | 2.814(in) | 0.12 |
| 6 |
|
QSA030AR0 | 3.500(in) | 3.000(in) | 0.250(in) | 3.186(in) | 3.314(in) | 0.14 |
| 7 |
|
QSA035AR0 | 4.000(in) | 3.500(in) | 0.250(in) | 3.686(in) | 3.814(in) | 0.17 |
| 8 |
|
QSA040AR0 | 4.500(in) | 4.000(in) | 0.250(in) | 4.186(in) | 4.314(in) | 0.19 |
| 9 |
|
QSB020AR0 | 2.625(in) | 2.000(in) | 0.3125(in) | 2.231(in) | 2.393(in) | 0.15 |
| 10 |
|
QSB025AR0 | 3.125(in) | 2.500(in) | 0.3125(in) | 2.731(in) | 2.893(in) | 0.19 |
| 11 |
|
QSB030AR0 | 3.625(in) | 3.000(in) | 0.3125(in) | 3.231(in) | 3.393(in) | 0.22 |
| 12 |
|
QSB035AR0 | 4.125(in) | 3.500(in) | 0.3125(in) | 3.731(in) | 3.893(in) | 0.27 |
| 13 |
|
QSB040AR0 | 4.625(in) | 4.000(in) | 0.3125(in) | 4.231(in) | 4.393(in) | 0.30 |
