Metric Thin-Section Ball Bearing Series – Open Type X

The Metric Thin-Section Ball Bearing Series - Open Type X comprises precision-engineered bearings designed with minimized cross-sectional dimensions, specifically tailored for applications requiring compactness and reduced weight, while ensuring high precision and durability.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material:

GCr15/100Cr6/Bearing Steel

Brand:

QIBR/OEM/Neutral

Application:

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR

Model Selection

Filters

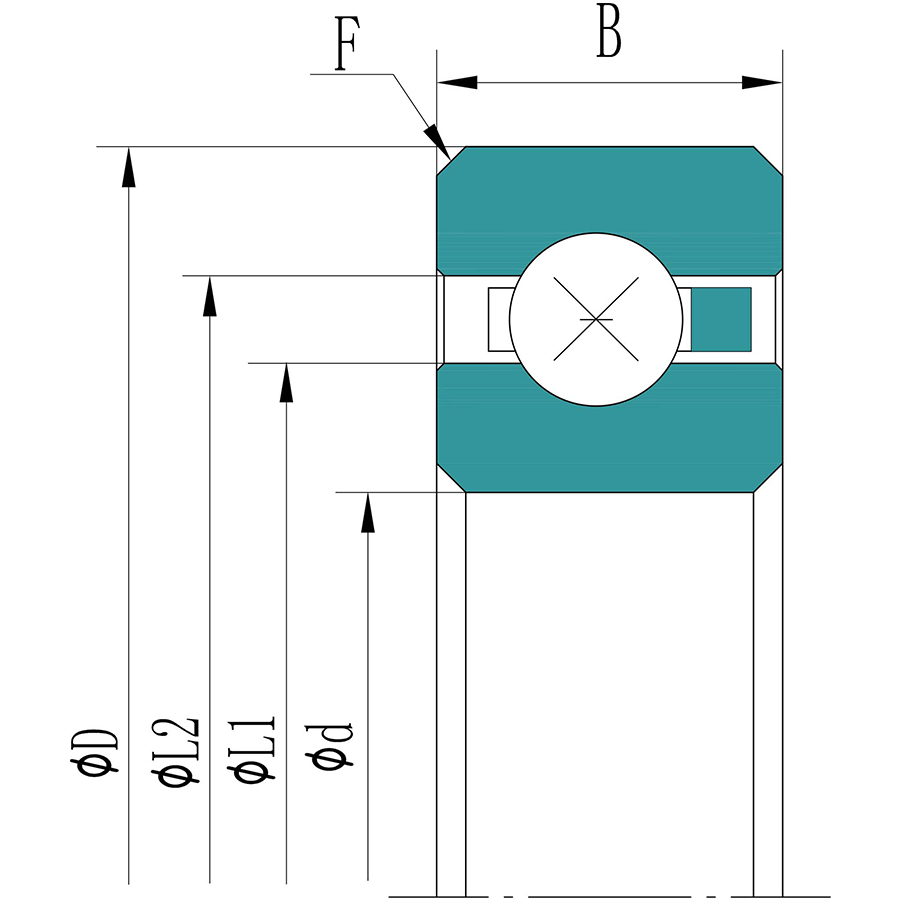

NO. Product Product Number Outer Diameter (D) Inner Diameter (d) Width(B) Land Diameters (L1) Land Diameters(L2) Mass(kg)
1 QK02508XP0/ QK02508XP0 41mm 25mm 8mm 30.9mm 35.1mm 0.06
2 QK05008XP0/ QK05008XP0 66mm 50mm 8mm 55.9mm 60.1mm 0.08
3 QK06008XP0/ QK06008XP0 76mm 60mm 8mm 65.9mm 70.1mm 0.09
4 QK07008XP0/ QK07008XP0 86mm 70mm 8mm 75.9mm 80.1mm 0.10
5 QK08008XP0/ QK08008XP0 96mm 80mm 8mm 85.9mm 90.1mm 0.11
6 QK09008XP0/ QK09008XP0 106mm 90mm 8mm 95.9mm 100.1mm 0.13
7 QK10008XP0/ QK10008XP0 116mm 100mm 8mm 105.9mm 110.1mm 0.14
8 QK11008XP0/ QK11008XP0 126mm 110mm 8mm 115.9mm 120.1mm 0.15
9 QK12008XP0/ QK12008XP0 136mm 120mm 8mm 125.9mm 130.1mm 0.16
10 QK13008XP0/ QK13008XP0 116mm 130mm 8mm 135.9mm 140.1mm 0.18
11 QK14008XP0/ QK14008XP0 156mm 140mm 8mm 145.9mm 150.1mm 0.19
12 QK15008XP0/ QK15008XP0 166mm 150mm 8mm 155.9mm 160.1mm 0.20
13 QK16008XP0/ QK16008XP0 176mm 160mm 8mm 165.9mm 170.1mm 0.20
14 QK17008XP0/ QK17008XP0 186mm 170mm 8mm 175.9mm 180.1mm 0.20
15 QK18008XP0/ QK18008XP0 196mm 180mm 8mm 185.9mm 190.1mm 0.21
16 QK19008XP0/ QK19008XP0 206mm 190mm 8mm 195.9mm 200.1mm 0.21
17 QK20008XP0/ QK20008XP0 216mm 200mm 8mm 205.9mm 210.1mm 0.22
18 QK25008XP0/ QK25008XP0 266mm 250mm 8mm 255.9mm 260.1mm 0.28
19 QK30008XP0/ QK30008XP0 266mm 300mm 8mm 305.9mm 310.1mm 0.35
20 QK32008XP0/ QK32008XP0 336mm 320mm 8mm 325.9mm 330.1mm 0.39
21 QK34008XP0/ QK34008XP0 356mm 340mm 8mm 345.9mm 350.1mm 0.42
22 QK36008XP0/ QK36008XP0 376mm 360mm 8mm 365.9mm 370.1mm 0.46
23 QK02513XP0/ QK02513XP0 51mm 25mm 13mm 34.7mm 41.3mm 0.13
24 QK05013XP0/ QK05013XP0 76mm 50mm 13mm 59.7mm 66.3mm 0.20
25 QK06013XP0/ QK06013XP0 86mm 60mm 13mm 69.7mm 76.3mm 0.23
26 QK07013XP0/ QK07013XP0 96mm 70mm 13mm 79.7mm 86.3mm 0.26
27 QK08013XP0/ QK08013XP0 106mm 80mm 13mm 89.7mm 96.3mm 0.28
28 QK09013XP0/ QK09013XP0 116mm 90mm 13mm 99.7mm 106.3mm 0.31
29 QK10013XP0/ QK10013XP0 126mm 100mm 13mm 109.7mm 116.3mm 0.34
30 QK11013XP0/ QK11013XP0 136mm 110mm 13mm 119.7mm 126.3mm 0.37
31 QK12013XP0/ QK12013XP0 146mm 120mm 13mm 129.7mm 136.3mm 0.40
32 QK13013XP0/ QK13013XP0 156mm 130mm 13mm 139.7mm 146.3mm 0.43
33 QK14013XP0/ QK14013XP0 166mm 140mm 13mm 149.7mm 156.3mm 0.46
34 QK15013XP0/ QK15013XP0 176mm 150mm 13mm 159.7mm 166.3mm 0.48
35 QK16013XP0/ QK16013XP0 186mm 160mm 13mm 169.7mm 176.3mm 0.51
36 QK17013XP0/ QK17013XP0 196mm 170mm 13mm 179.7mm 186.3mm 0.54
37 QK18013XP0/ QK18013XP0 206mm 180mm 13mm 189.7mm 196.3mm 0.57
38 QK19013XP0/ QK19013XP0 216mm 190mm 13mm 199.7mm 206.3mm 0.60
39 QK20013XP0/ QK20013XP0 226mm 200mm 13mm 209.7mm 216.3mm 0.63
40 QK25013XP0/ QK25013XP0 276mm 250mm 13mm 259.7mm 266.3mm 0.77
41 QK30013XP0/ QK30013XP0 326mm 300mm 13mm 309.7mm 316.3mm 0.91
42 QK32013XP0/ QK32013XP0 346mm 320mm 13mm 329.7mm 336.3mm 0.97
43 QK34013XP0/ QK34013XP0 366mm 340mm 13mm 349.7mm 356.3mm 1.02
44 QK36013XP0/ QK36013XP0 386mm 360mm 13mm 369.7mm 376.3mm 1.08
45 QK02520XP0/ QK02520XP0 65mm 25mm 20mm 40.0mm 50.0mm 0.34
46 QK05020XP0/ QK05020XP0 90mm 50mm 20mm 65.0mm 75.0mm 0.52
47 QK06020XP0/ QK06020XP0 100mm 60mm 20mm 75.0mm 85.0mm 0.59
48 QK07020XP0/ QK07020XP0 110mm 70mm 20mm 85.0mm 95.0mm 0.66
49 QK08020XP0/ QK08020XP0 120mm 80mm 20mm 95.0mm 105.0mm 0.73
50 QK09020XP0/ QK09020XP0 130mm 90mm 20mm 105.0mm 115.0mm 0.80
51 QK10020XP0/ QK10020XP0 140mm 100mm 20mm 115.0mm 125.0mm 0.87
52 QK11020XP0/ QK11020XP0 150mm 110mm 20mm 125.0mm 135.0mm 0.94
53 QK12020XP0/ QK12020XP0 160mm 120mm 20mm 135.0mm 145.0mm 1.01
54 QK13020XP0/ QK13020XP0 170mm 130mm 20mm 145.0mm 155.0mm 1.07
55 QK14020XP0/ QK14020XP0 180mm 140mm 20mm 155.0mm 165.0mm 1.15
56 QK15020XP0/ QK15020XP0 190mm 150mm 20mm 165.0mm 175.0mm 1.22
57 QK16020XP0/ QK16020XP0 200mm 160mm 20mm 175.0mm 185.0mm 1.30
58 QK17020XP0/ QK17020XP0 210mm 170mm 20mm 185.0mm 195.0mm 1.37
59 QK18020XP0/ QK18020XP0 220mm 180mm 20mm 195.0mm 205.0mm 1.44
60 QK19020XP0/ QK19020XP0 230mm 190mm 20mm 205.0mm 215.0mm 1.51
61 QK20020XP0/ QK20020XP0 240mm 200mm 20mm 215.0mm 225.0mm 1.57
62 QK25020XP0/ QK25020XP0 290mm 250mm 20mm 265.0mm 275.0mm 2.10
63 QK30020XP0/ QK30020XP0 340mm 300mm 20mm 315.0mm 325.0mm 2.30
64 QK32020XP0/ QK32020XP0 360mm 320mm 20mm 335.0mm 345.0mm 2.44
65 QK34020XP0/ QK34020XP0 380mm 340mm 20mm 355.0mm 365.0mm 2.58
66 QK36020XP0/ QK36020XP0 400mm 360mm 20mm 375.0mm 385.0mm 2.73
