Серия метрических тонкостенных шарикоподшипников-открытый тип A

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Поиск нужной модель подшипника.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100/100Cr6/SUJ2/Stainless Steel

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Внутренний диаметр

25~360mm

Наружный диаметр

41~400mm

Применения

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

Серия метрических тонкостенных шарикоподшипников-открытый тип A

Filters

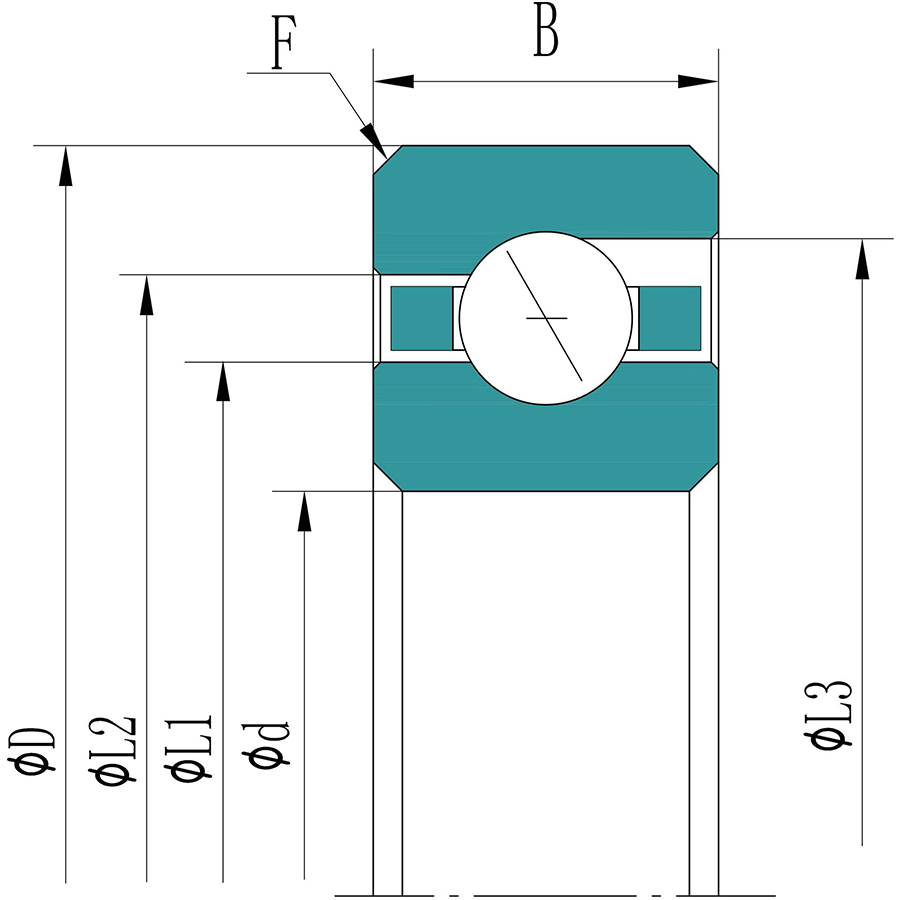

NO. Product Product Number Внутренний диаметр (d) Наружный диаметр внутреннего кольца (L1) Наружный диаметр внутреннего кольца (L2) Вес Наружный диаметр (D) Ширина (B)
1 K02508AR0/ K02508AR0 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
1 K02508BR0/ K02508BR0 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
1 K02508AR0A/ K02508AR0A 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
1 K02508FR0/ K02508FR0 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
1 K02508AR0K/ K02508AR0K 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
1 K02508AR0L/ K02508AR0L 25 mm 30.9 mm 35.1 mm 0.06 kg 41 mm 8 mm
2 K05008AR0/ K05008AR0 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
2 K05008AR0A/ K05008AR0A 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
2 K05008BR0/ K05008BR0 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
2 K05008FR0/ K05008FR0 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
2 K05008AR0K/ K05008AR0K 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
2 K05008AR0L/ K05008AR0L 50 mm 55.9 mm 60.1 mm 0.08 kg 66 mm 8 mm
3 K06008AR0/ K06008AR0 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
3 K06008AR0A/ K06008AR0A 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
3 K06008BR0/ K06008BR0 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
3 K06008FR0/ K06008FR0 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
3 K06008AR0K/ K06008AR0K 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
3 K06008AR0L/ K06008AR0L 60 mm 65.9 mm 70.1 mm 0.09 kg 76 mm 8 mm
4 K07008AR0/ K07008AR0 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
4 K07008AR0A/ K07008AR0A 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
4 K07008BR0/ K07008BR0 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
4 K07008FR0/ K07008FR0 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
4 K07008AR0K/ K07008AR0K 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
4 K07008AR0L/ K07008AR0L 70 mm 75.9 mm 80.1 mm 0.10 kg 86 mm 8 mm
5 K08008AR0/ K08008AR0 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
5 K08008AR0A/ K08008AR0A 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
5 K08008BR0/ K08008BR0 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
5 K08008FR0/ K08008FR0 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
5 K08008AR0K/ K08008AR0K 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
5 K08008AR0L/ K08008AR0L 80 mm 85.9 mm 90.1 mm 0.12 kg 96 mm 8 mm
6 K09008AR0/ K09008AR0 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
6 K09008BR0/ K09008BR0 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
6 K09008AR0A/ K09008AR0A 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
6 K09008FR0/ K09008FR0 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
6 K09008AR0K/ K09008AR0K 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
6 K09008AR0L/ K09008AR0L 90 mm 95.9 mm 100.1 mm 0.13 kg 106 mm 8 mm
7 K10008AR0/ K10008AR0 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
7 K10008AR0A/ K10008AR0A 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
7 K10008BR0/ K10008BR0 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
7 K10008FR0/ K10008FR0 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
7 K10008AR0K/ K10008AR0K 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
7 K10008AR0L/ K10008AR0L 100 mm 105.9 mm 110.1 mm 0.14 kg 116 mm 8 mm
8 K11008AR0A/ K11008AR0A 110 mm 115.9 mm 120.1 mm 0.15 kg 126 mm 8 mm
8 K11008AR0/ K11008AR0 110 mm 115.9 mm 120.1 mm 0.15 kg 126 mm 8 mm
8 K11008BR0/ K11008BR0 110 mm 115.9 mm 120.1 mm 0.15 kg 126 mm 8 mm
8 K11008AR0K/ K11008AR0K 110 mm 115.9 mm 120.1 mm 0.15 kg 126 mm 8 mm
8 K11008AR0L/ K11008AR0L 110 mm 115.9 mm 120.1 mm 0.15 kg 126 mm 8 mm
9 K12008AR0A/ K12008AR0A 120 mm 125.9 mm 130.1 mm 0.16 kg 136 mm 8 mm
9 K12008AR0/ K12008AR0 120 mm 125.9 mm 130.1 mm 0.16 kg 136 mm 8 mm
9 K12008BR0/ K12008BR0 120 mm 125.9 mm 130.1 mm 0.16 kg 136 mm 8 mm
9 K12008FR0/ K12008FR0 120 mm 125.9 mm
