Endurakote – Plated Thin-Section Ball Bearing Series – Type X
Thin-section ring bearings have high accuracy, very quiet and strong load-carrying capacity. In order to get the low friction torque, high rigidity and good rotation precision of the bearing, the steel ball with small outside diameter is used. The use of hollow shafts ensures lightweight and wiring space. The Thin-section bearing realizes the extremely thin bearing section, also has realized the product miniaturization, the lightweight. The diversity of products extends its range of uses. Thin-section 6700,6800 series have a variety of dust cover form, with flange form, stainless steel form, wide form, etc. , variety is complete.
QIBR
Model Selection

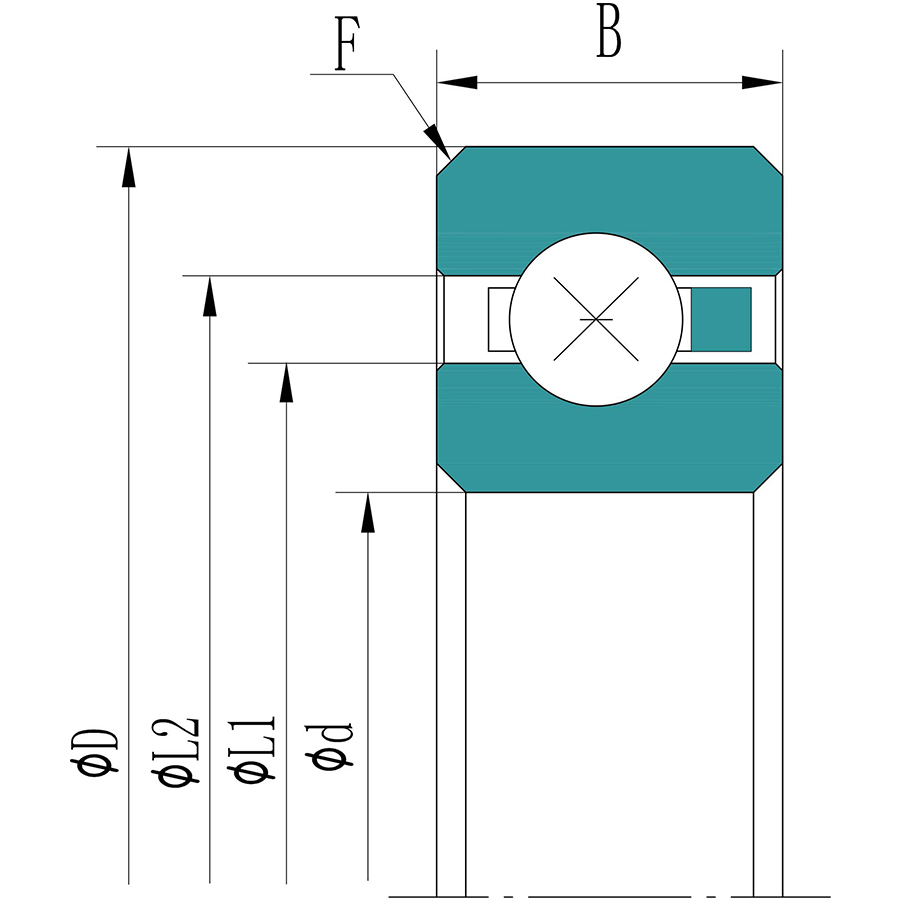

| NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Width(B) | Land Diameters (L1) | Land Diameters(L2) | Mass(lbs) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
QNAA10XL0 | 1.3752(in) | 1.0000(in) | 0.1875(in) | 1.140(in) | 1.235(in) | 0.026 |
| 2 |
|
QNAA15XL0 | 1.8752(in) | 1.5000(in) | 0.1875(in) | 1.640(in) | 1.735(in) | 0.039 |
| 3 |
|
QNAA17XL0 | 2.1252(in) | 1.7500(in) | 0.1875(in) | 1.890(in) | 1.985(in) | 0.045 |
| 4 |
|
QNA020XP0 | 2.5002(in) | 2.0000(in) | 0.250(in) | 2.186(in) | 2.314(in) | 0.10 |
| 5 |
|
QNA025XP0 | 3.0002(in) | 2.5000(in) | 0.250(in) | 2.686(in) | 2.814(in) | 0.13 |
| 6 |
|
QNA030XP0 | 3.5002(in) | 3.0000(in) | 0.250(in) | 3.186(in) | 3.314(in) | 0.15 |
| 7 |
|
QNA035XP0 | 4.0002(in) | 3.5000(in) | 0.250(in) | 3.686(in) | 3.814(in) | 0.18 |
| 8 |
|
QNA040XP0 | 4.5003(in) | 3.9998(in) | 0.250(in) | 4.186(in) | 4.314(in) | 0.19 |
| 9 |
|
QNA042XP0 | 4.7503(in) | 4.2498(in) | 0.250(in) | 4.436(in) | 4.564(in) | 0.20 |
| 10 |
|
QNA045XP0 | 5.0003(in) | 4.4998(in) | 0.250(in) | 4.686(in) | 4.814(in) | 0.22 |
| 11 |
|
QNA047XP0 | 5.2503(in) | 4.7498(in) | 0.250(in) | 4.936(in) | 5.064(in) | 0.23 |
| 12 |
|
QNA050XP0 | 5.5003(in) | 4.9998(in) | 0.250(in) | 5.186(in) | 5.314(in) | 0.24 |
| 13 |
|
QNA055XP0 | 6.0003(in) | 5.4998(in) | 0.250(in) | 5.686(in) | 5.814(in) | 0.25 |
| 14 |
|
QNA060XP0 | 6.5003(in) | 5.9998(in) | 0.250(in) | 6.186(in) | 6.314(in) | 0.28 |
| 15 |
|
QNA065XP0 | 7.0003(in) | 6.4998(in) | 0.250(in) | 6.686(in) | 6.814(in) | 0.30 |
| 16 |
|
QNA070XP0 | 7.5003(in) | 6.9998(in) | 0.250(in) | 7.186(in) | 7.314(in) | 0.31 |
| 17 |
|
QNA075XP0 | 8.0003(in) | 7.4998(in) | 0.250(in) | 7.686(in) | 7.814(in) | 0.34 |
| 18 |
|
QNA080XP0 | 8.5003(in) | 7.9998(in) | 0.250(in) | 8.186(in) | 8.314(in) | 0.38 |
| 19 |
|
QNA090XP0 | 9.5003(in) | 8.9998(in) | 0.250(in) | 9.186(in) | 9.314(in) | 0.44 |
| 20 |
|
QNA100XP0 | 10.5003(in) | 9.9998(in) | 0.250(in) | 10.186(in) | 10.314(in) | 0.50 |
| 21 |
|
QNA110XP0 | 11.5003(in) | 10.9998(in) | 0.250(in) | 11.186(in) | 11.314(in) | 0.52 |
| 22 |
|
QNA120XP0 | 12.5003(in) | 11.9998(in) | 0.250(in) | 12.186(in) | 12.314(in) | 0.56 |
| 23 |
|
QNB020XP0 | 2.6252(in) | 2.0000(in) | 0.3125(in) | 2.231(in) | 2.393(in) | 0.16 |
| 24 |
|
QNB025XP0 | 3.1252(in) | 2.5000(in) | 0.3125(in) | 2.731(in) | 2.893(in) | 0.19 |
| 25 |
|
QNB030XP0 | 3.6252(in) | 3.0000(in) | 0.3125(in) | 3.231(in) | 3.393(in) | 0.24 |
| 26 |
|
QNB035XP0 | 4.1252(in) | 3.5000(in) | 0.3125(in) | 3.731(in) | 3.893(in) | 0.27 |
| 27 |
|
QNB040XP0 | 4.6253(in) | 3.9998(in) | 0.3125(in) | 4.231(in) | 4.393(in) | 0.30 |
| 28 |
|
QNB042XP0 | 4.8753(in) | 4.2498(in) | 0.3125(in) | 4.481(in) | 4.643(in) | 0.31 |
| 29 |
|
QNB045XP0 | 5.1253(in) | 4.4998(in) | 0.3125(in) | 4.731(in) | 4.893(in) | 0.33 |
| 30 |
|
QNB047XP0 | 5.3753(in) | 4.7498(in) | 0.3125(in) | 4.981(in) | 5.143(in) | 0.34 |
| 31 |
|
QNB050XP0 | 5.6253(in) | 4.9998(in) | 0.3125(in) | 5.231(in) | 5.393(in) | 0.38 |
| 32 |
|
QNB055XP0 | 6.1253(in) | 5.4998(in) | 0.3125(in) | 5.731(in) | 5.893(in) | 0.41 |
| 33 |
|
QNB060XP0 | 6.6253(in) | 5.9998(in) | 0.3125(in) | 6.231(in) | 6.393(in) | 0.44 |
| 34 |
|
QNB065XP0 | 7.1253(in) | 6.4998(in) | 0.3125(in) | 6.731(in) | 6.893(in) | 0.47 |
| 35 |
|
QNB070XP0 | 7.6253(in) | 6.9998(in) | 0.3125(in) | 7.231(in) | 7.393(in) | 0.50 |
| 36 |
|
QNB075XP0 | 8.1253(in) | 7.4998(in) | 0.3125(in) | 7.731(in) | 7.893(in) | 0.53 |
| 37 |
|
QNB080XP0 | 8.6253(in) | 7.9998(in) | 0.3125(in) | 8.231(in) | 8.393(in) | 0.57 |
| 38 |
|
QNB090XP0 | 9.6253(in) | 8.9998(in) | 0.3125(in) | 9.231(in) | 9.393(in) | 0.66 |
| 39 |
|
QNB100XP0 | 10.6253(in) | 9.9998(in) | 0.3125(in) | 10.231(in) | 10.393(in) | 0.73 |
| 40 |
|
QNB110XP0 | 11.6253(in) | 10.9998(in) | 0.3125(in) | 11.231(in) | 11.393(in) | 0.75 |
| 41 |
|
QNB120XP0 | 12.6253(in) | 11.9998(in) | 0.3125(in) | 12.231(in) | 12.393(in) | 0.83 |
| 42 |
|
QNB140XP0 | 14.6253(in) | 13.9998(in) | 0.3125(in) | 14.231(in) | 14.393(in) | 1.05 |
| 43 |
|
QNB160XP0 | 16.6253(in) | 15.9998(in) | 0.3125(in) | 16.231(in) | 16.393(in) | 1.20 |
| 44 |
|
QNB180XP0 | 18.6253(in) | 17.9998(in) | 0.3125(in) | 18.231(in) | 18.393(in) | 1.35 |
| 45 |
|
QNB200XP0 | 20.6253(in) | 19.9998(in) | 0.3125(in) | 20.231(in) | 20.393(in) | 1.50 |
| 46 |
|
QNC040XP0 | 4.7503(in) | 3.9998(in) | 0.375(in) | 4.277(in) | 4.473(in) | 0.45 |
| 47 |
|
QNC042XP0 | 5.0003(in) | 4.2498(in) | 0.375(in) | 4.527(in) | 4.723(in) | 0.47 |
| 48 |
|
QNC045XP0 | 5.2503(in) | 4.4998(in) | 0.375(in) | 4.777(in) | 4.973(in) | 0.48 |
| 49 |
|
QNC047XP0 | 5.5003(in) | 4.7498(in) | 0.375(in) | 5.027(in) | 5.223(in) | 0.50 |
| 50 |
|
QNC050XP0 | 5.7503(in) | 4.9998(in) | 0.375(in) | 5.277(in) | 5.473(in) | 0.58 |
| 51 |
|
QNC055XP0 | 6.2503(in) | 5.4998(in) | 0.375(in) | 5.777(in) | 5.973(in) | 0.59 |
| 52 |
|
QNC060XP0 | 6.7503(in) | 5.9998(in) | 0.375(in) | 6.277(in) | 6.473(in) | 0.63 |
| 53 |
|
QNC065XP0 | 7.2503(in) | 6.4998(in) | 0.375(in) | 6.777(in) | 6.973(in) | 0.68 |
| 54 |
|
QNC070XP0 | 7.7503(in) | 6.9998(in) | 0.375(in) | 7.277(in) | 7.473(in) | 0.73 |
| 55 |
|
QNC075XP0 | 8.2503(in) | 7.4998(in) | 0.375(in) | 7.777(in) | 7.973(in) | 0.78 |
| 56 |
|
QNC080XP0 | 8.7503(in) | 7.9998(in) | 0.375(in) | 8.277(in) | 8.473(in) | 0.84 |
| 57 |
|
QNC090XP0 | 9.7503(in) | 8.9998(in) | 0.375(in) | 9.277(in) | 9.473(in) | 0.94 |
| 58 |
|
QNC100XP0 | 10.7503(in) | 9.9998(in) | 0.375(in) | 10.277(in) | 10.473(in) | 1.06 |
| 59 |
|
QNC110XP0 | 11.7503(in) | 10.9998(in) | 0.375(in) | 11.277(in) | 11.473(in) | 1.16 |
| 60 |
|
QNC120XP0 | 12.7503(in) | 11.9998(in) | 0.375(in) | 12.277(in) | 12.473(in) | 1.25 |
| 61 |
|
QNC140XP0 | 14.7503(in) | 13.9998(in) | 0.375(in) | 14.277(in) | 14.473(in) | 1.52 |
| 62 |
|
QNC160XP0 | 16.7503(in) | 15.9998(in) | 0.375(in) | 16.277(in) | 16.473(in) | 1.73 |
| 63 |
|
QNC180XP0 | 18.7503(in) | 17.9998(in) | 0.375(in) | 18.277(in) | 18.473(in) | 1.94 |
| 64 |
|
QNC200XP0 | 20.7503(in) | 19.9998(in) | 0.375(in) | 20.277(in) | 20.473(in) | 2.16 |
| 65 |
|
QNC250XP0 | 25.7503(in) | 24.9998(in) | 0.375(in) | 25.277(in) | 25.473(in) | 2.69 |
| 66 |
|
QNC300XP0 | 30.7503(in) | 29.9998(in) | 0.375(in) | 30.277(in) | 30.473(in) | 3.21 |
| 67 |
|
QND040XP0 | 5.0003(in) | 3.9998(in) | 0.500(in) | 4.370(in) | 4.630(in) | 0.78 |
| 68 |
|
QND042XP0 | 5.2503(in) | 4.2498(in) | 0.500(in) | 4.620(in) | 4.880(in) | 0.83 |
| 69 |
|
QND045XP0 | 5.5003(in) | 4.4998(in) | 0.500(in) | 4.870(in) | 5.130(in) | 0.88 |
| 70 |
|
QND047XP0 | 5.7503(in) | 4.7498(in) | 0.500(in) | 5.120(in) | 5.380(in) | 0.94 |
| 71 |
|
QND050XP0 | 6.0003(in) | 4.9998(in) | 0.500(in) | 5.370(in) | 5.630(in) | 1.00 |
| 72 |
|
QND055XP0 | 6.5003(in) | 5.4998(in) | 0.500(in) | 5.870(in) | 6.130(in) | 1.06 |
| 73 |
|
QND060XP0 | 7.0003(in) | 5.9998(in) | 0.500(in) | 6.370(in) | 6.630(in) | 1.16 |
| 74 |
|
QND065XP0 | 7.5003(in) | 6.4998(in) | 0.500(in) | 6.870(in) | 7.130(in) | 1.22 |
| 75 |
|
QND070XP0 | 8.0003(in) | 6.9998(in) | 0.500(in) | 7.370(in) | 7.630(in) | 1.31 |
| 76 |
|
QND075XP0 | 8.5003(in) | 7.4998(in) | 0.500(in) | 7.870(in) | 8.130(in) | 1.41 |
| 77 |
|
QND080XP0 | 9.0003(in) | 7.9998(in) | 0.500(in) | 8.370(in) | 8.630(in) | 1.53 |
| 78 |
|
QND090XP0 | 10.0003(in) | 8.9998(in) | 0.500(in) | 9.370(in) | 9.630(in) | 1.72 |
| 79 |
|
QND100XP0 | 11.0003(in) | 9.9998(in) | 0.500(in) | 10.370(in) | 10.630(in) | 1.88 |
| 80 |
|
QND110XP0 | 12.0003(in) | 10.9998(in) | 0.500(in) | 11.370(in) | 11.630(in) | 2.06 |
| 81 |
|
QND120XP0 | 13.0003(in) | 11.9998(in) | 0.500(in) | 12.370(in) | 12.630(in) | 2.25 |
| 82 |
|
QND140XP0 | 15.0003(in) | 13.9998(in) | 0.500(in) | 14.370(in) | 14.630(in) | 2.73 |
| 83 |
|
QND160XP0 | 17.0003(in) | 15.9998(in) | 0.500(in) | 16.370(in) | 16.630(in) | 3.10 |
| 84 |
|
QND180XP0 | 19.0003(in) | 17.9998(in) | 0.500(in) | 18.370(in) | 18.630(in) | 3.48 |
| 85 |
|
QND200XP0 | 21.0003(in) | 19.9998(in) | 0.500(in) | 20.370(in) | 20.630(in) | 3.85 |
| 86 |
|
QND210XP0 | 22.0003(in) | 20.9998(in) | 0.500(in) | 21.370(in) | 21.630(in) | 4.04 |
| 87 |
|
QND250XP0 | 26.0003(in) | 24.9998(in) | 0.500(in) | 25.370(in) | 25.630(in) | 4.79 |
| 88 |
|
QND300XP0 | 31.0003(in) | 29.9998(in) | 0.500(in) | 30.370(in) | 30.630(in) | 5.73 |
| 89 |
|
QNF040XP0 | 5.5003(in) | 3.9998(in) | 0.750(in) | 4.555(in) | 4.945(in) | 1.9 |
| 90 |
|
QNF042XP0 | 5.7503(in) | 4.2498(in) | 0.750(in) | 4.805(in) | 5.195(in) | 2.0 |
| 91 |
|
QNF045XP0 | 6.0003(in) | 4.4998(in) | 0.750(in) | 5.055(in) | 5.445(in) | 2.1 |
| 92 |
|
QNF047XP0 | 6.2503(in) | 4.7498(in) | 0.750(in) | 5.305(in) | 5.695(in) | 2.2 |
| 93 |
|
QNF050XP0 | 6.5003(in) | 4.9998(in) | 0.750(in) | 5.555(in) | 5.945(in) | 2.3 |
| 94 |
|
QNF055XP0 | 7.0003(in) | 5.4998(in) | 0.750(in) | 6.055(in) | 6.445(in) | 2.5 |
| 95 |
|
QNF060XP0 | 7.5003(in) | 5.9998(in) | 0.750(in) | 6.555(in) | 6.945(in) | 2.7 |
| 96 |
|
QNF065XP0 | 8.0003(in) | 6.4998(in) | 0.750(in) | 7.055(in) | 7.445(in) | 2.9 |
| 97 |
|
QNF070XP0 | 8.5003(in) | 6.9998(in) | 0.750(in) | 7.555(in) | 7.945(in) | 3.2 |
| 98 |
|
QNF075XP0 | 9.0003(in) | 7.4998(in) | 0.750(in) | 8.055(in) | 8.445(in) | 3.4 |
| 99 |
|
QNF080XP0 | 9.5003(in) | 7.9998(in) | 0.750(in) | 8.555(in) | 8.945(in) | 3.5 |
| 100 |
|
QNF090XP0 | 10.5003(in) | 8.9998(in) | 0.750(in) | 9.555(in) | 9.945(in) | 3.9 |
