VSU

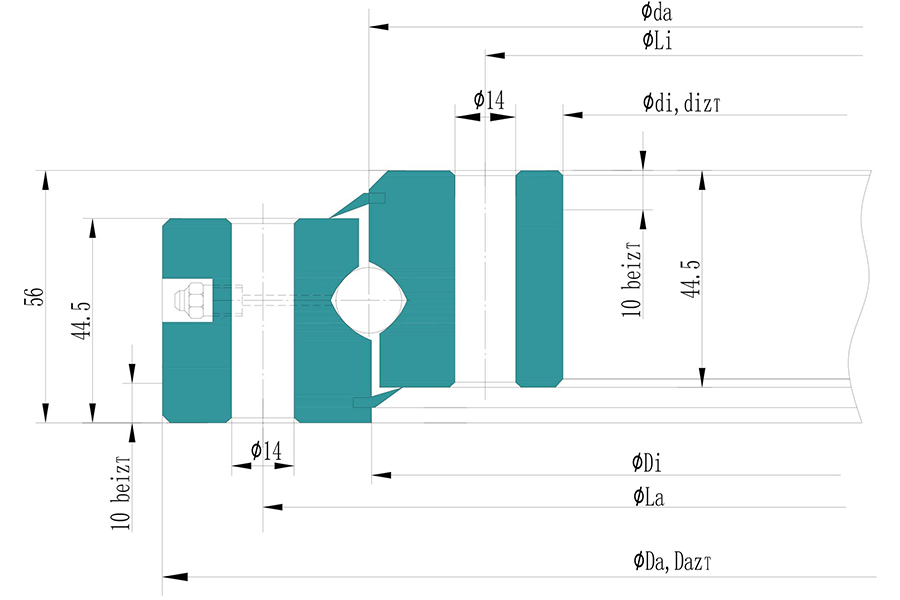

Standard series 20 bearings are designed without gear teeth and offer selectable internal clearance. They are sealed to prevent contamination and feature a lubrication nipple positioned on the circumference of the outer ring. These bearings are ideal for applications requiring precise internal clearance adjustment and reliable sealing against environmental elements, ensuring optimal performance and longevity in various industrial settings.
QIBR
Model Selection
| NO. | Product | Product Number | Outer Diameter (Da) | Inner diameter (Di) | Weight (kg) | Internal diameter on outer ring (Di) | External bolt circle diameter (La) | Gear Type |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
VSU 20 0414 | 486mm | 342mm | 29kg | 416mm | 460mm | No Gear |
| 2 |
|
VSU 20 0544 | 616mm | 472mm | 37kg | 546mm | 590mm | No Gear |
| 3 |
|
VSU 20 0644 | 716mm | 572mm | 44.0kg | 646mm | 690.0mm | No Gear |
| 4 |
|
VSU 20 0744 | 816mm | 672mm | 52kg | 746mm | 790mm | No Gear |
| 5 |
|
VSU 20 0844 | 916mm | 772mm | 60kg | 846mm | 890mm | No Gear |
| 6 |
|
VSU 20 0944 | 1016mm | 872mm | 67.0kg | 946mm | 990.0mm | No Gear |
| 7 |
|
VSU 20 1094 | 1166mm | 1022mm | 77kg | 1096mm | 1140mm | No Gear |
| 8 |
|
VSU 25 0755 | 855mm | 655mm | 90kg | 753mm | 815mm | No Gear |
| 9 |
|
VSU 25 0855 | 955mm | 755mm | 101kg | 853mm | 915mm | No Gear |
| 10 |
|
VSU 25 0955 | 1055mm | 855mm | 115kg | 953mm | 1015mm | No Gear |
| 11 |
|
VSU 25 1055 | 1155mm | 955mm | 128kg | 1053mm | 1115mm | No Gear |
