VI
The bearing features internal teeth, is sealed, offers selectable internal clearance, and includes a lubrication nipple positioned on the circumference of the internal toothed ring. This design is particularly advantageous for applications requiring precise rotational movement and reliable sealing against contaminants. The internal teeth facilitate seamless integration into machinery where precise positioning is critical, such as in cranes and excavators. The selectable internal clearance allows for customization based on specific operational requirements, ensuring optimal performance and longevity. The inclusion of a lubrication nipple on the internal toothed ring perimeter enables convenient maintenance, enhancing operational efficiency and extending the bearing's service life in demanding industrial environments.
QIBR
Model Selection

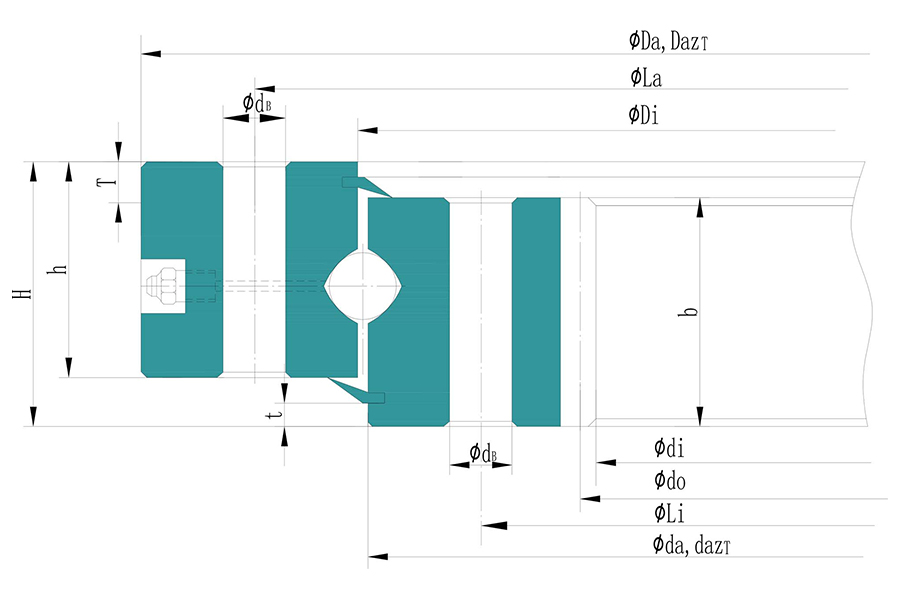

NO. | Product | Product Number | Outer Diameter (Da) | Weight (kg) | Internal diameter on outer ring (Di) | Overall height (H) | Inner diameter (di) | Gear Type |
---|---|---|---|---|---|---|---|---|
1 | VI 16 0288 N | 340mm | 12kg | 287mm | 39mm | 216mm | Internal Gear | |
2 | VI 14 0326 V | 382mm | 18kg | 333mm | 59mm | 250mm | Internal Gear | |
3 | VI 16 0420 N | 486mm | 24kg | 419mm | 39mm | 332mm | Internal Gear | |
4 | VI 25 0489 N | 562mm | 43kg | 488mm | 55mm | 384mm | Internal Gear | |
5 | VI 20 0575 N | 657mm | 55kg | 574mm | 55mm | 462mm | Internal Gear | |
6 | VI 25 0635 N | 722mm | 70kg | 634mm | 59mm | 504mm | Internal Gear | |
7 | VI 30 0720 N | 812mm | 100kg | 718mm | 68mm | 584mm | Internal Gear | |
8 | VI 20 0897 N | 976mm | 90kg | 896mm | 60mm | 776mm | Internal Gear |
