VA
Featuring external teeth and a sealed design, this component is engineered for versatility and durability. It offers selectable internal clearance, allowing for precise adjustments to optimize performance according to specific application needs. A lubrication nipple is strategically positioned on the circumference of the untoothed ring, facilitating easy and effective maintenance. This design ensures continuous lubrication, which helps reduce friction and extend the component's operational life.
QIBR

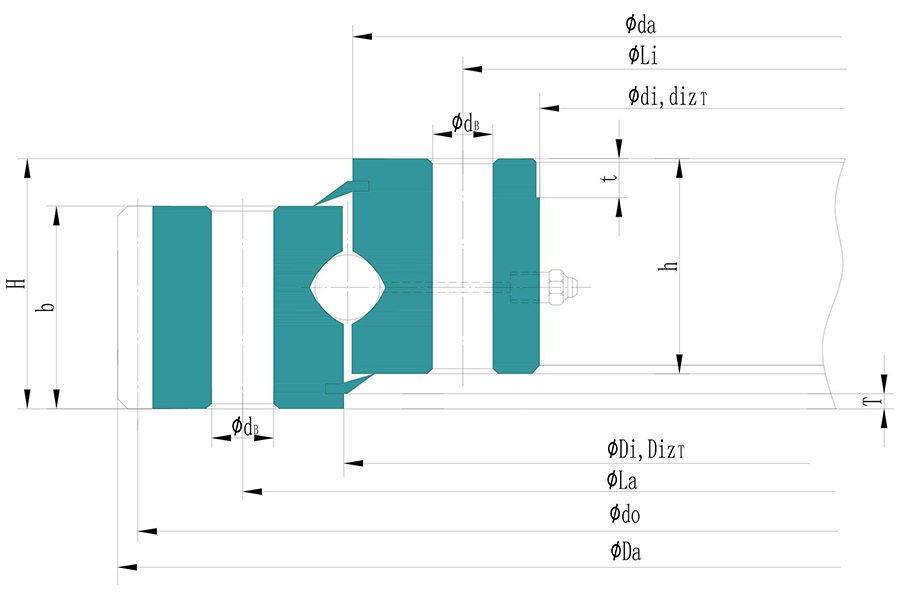

Model Selection
| NO. | Product | Product Number | Outer Diameter (Da) | Weight (kg) | Overall height (H) | Inner diameter (di) | Inner ring height (h) | Gear Type |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
VA 14 0188 V | 259.36mm | 7.5kg | 35mm | 135mm | 30mm | External Gear |
| 2 |
|
VA 16 0235 N | 318.6mm | 13kg | 40mm | 171mm | 35mm | External Gear |
| 3 |
|
VA 16 0302 N | 384mm | 13.6kg | 32mm | 240mm | 30mm | External Gear |
| 4 |
|
VA 25 0309 N | 408.4mm | 29.5kg | 60mm | 235mm | 52.5mm | External Gear |
| 5 |
|
VA 30 0475 N | 598.2mm | 64kg | 65mm | 382mm | 60mm | External Gear |
| 6 |
|
VA 22 0596 N | 712.2mm | 62kg | 55mm | 510mm | 48mm | External Gear |
| 7 |
|
VA 30 0685 N | 829.9mm | 112kg | 68mm | 577mm | 61mm | External Gear |
| 8 |
|
VA 30 0980 N | 1144mm | 230kg | 100mm | 870mm | 90mm | External Gear |
