RKS.060
A four-point contact ball slewing bearing is perfectly suited for rotary conveyors and tower cranes due to its ability to handle both axial and radial loads simultaneously. This bearing design ensures efficient load distribution across its four points of contact, enabling smooth rotation under varying loads and reducing frictional wear. Its compact profile makes it particularly advantageous in applications where space constraints are a concern. Furthermore, the robust construction of these bearings ensures durability and reliability in harsh environmental conditions typically encountered in industrial settings. Overall, the four-point contact ball slewing bearing offers a balanced combination of load capacity, rotational flexibility, and durability, making it an excellent choice for critical machinery like rotary conveyors and tower cranes.
QIBR
Model Selection

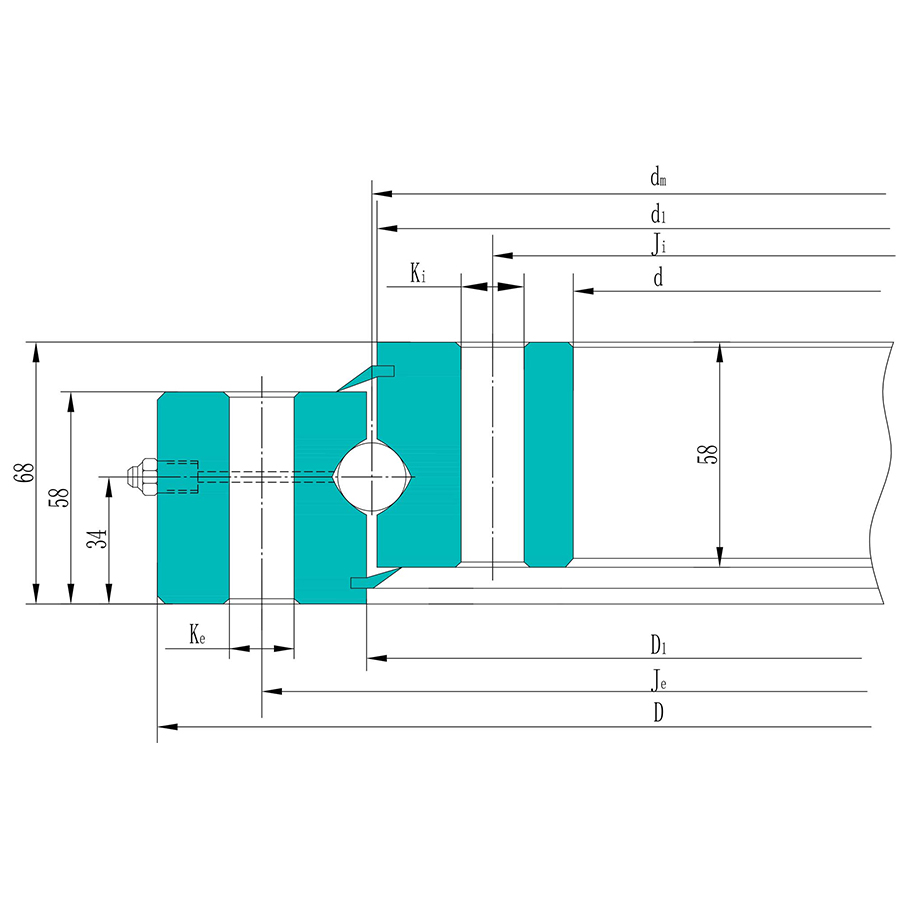

NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Raceway diameter(dm) | Internal diameter on outer ring (D1) | Gear Type | Internal Diameter on Inner Ring (d1) |
---|---|---|---|---|---|---|---|---|
1 | RKS.060.20.0414 | 486mm | 342mm | 414mm | 415.5mm | No Gear | 412.5mm | |
2 | RKS.060.20.0544 | 616mm | 472mm | 544mm | 545.5mm | No Gear | 542.5mm | |
3 | RKS.060.20.0644 | 716mm | 572mm | 644mm | 645.5mm | No Gear | 642.5mm | |
4 | RKS.060.20.0744 | 816mm | 672mm | 744mm | 745.5mm | No Gear | 742.5mm | |
5 | RKS.060.20.0844 | 916mm | 772mm | 844mm | 845.5mm | No Gear | 842.5mm | |
6 | RKS.060.20.0944 | 1016mm | 872mm | 944mm | 945.5mm | No Gear | 942.5mm | |
7 | RKS.060.20.1094 | 1166mm | 1022mm | 1094mm | 1095.5mm | No Gear | 1092.5mm | |
8 | RKS.060.25.1204 | 1289mm | 1119mm | 1204mm | 1207.5mm | No Gear | 1200.5mm | |
9 | RKS.060.25.1314 | 1399mm | 1229mm | 1314mm | 1317.5mm | No Gear | 1310.5mm | |
10 | RKS.060.25.1424 | 1509mm | 1339mm | 1424mm | 1427.5mm | No Gear | 1420.5mm | |
11 | RKS.060.25.1534 | 1619mm | 1449mm | 1534mm | 1537.5mm | No Gear | 1530.5mm | |
12 | RKS.060.25.1644 | 1752mm | 1536mm | 1644mm | 1647.5mm | No Gear | 1640.5mm | |
13 | RKS.060.25.1754 | 1862mm | 1646mm | 1754mm | 1757.5mm | No Gear | 1750.5mm | |
14 | RKS.060.30.1904 | 2012mm | 1796mm | 1904mm | 1907.5mm | No Gear | 1900.5mm |
