XSI

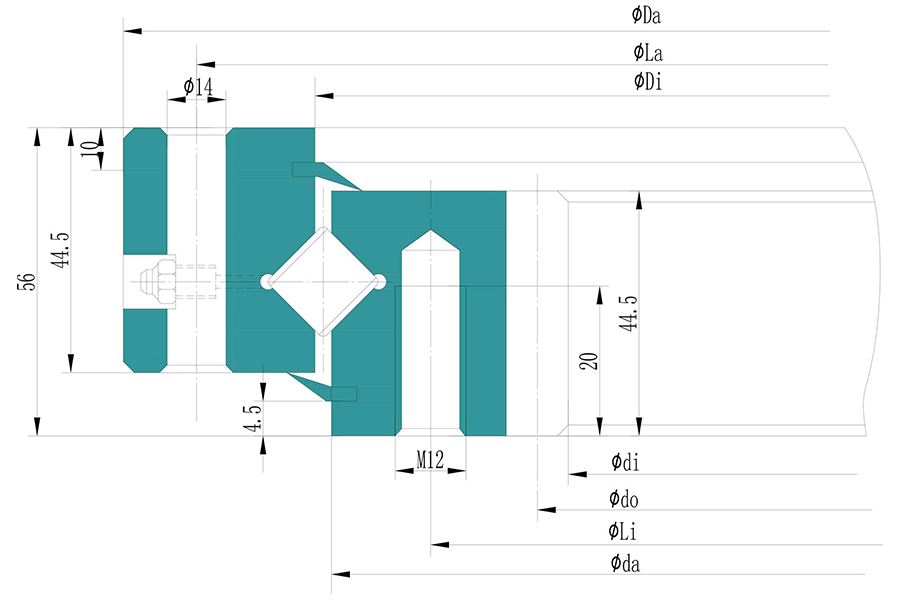

The standard series 14 slewing bearing with internal teeth is seated and preloaded, featuring a lubrication nipple on the circumference of the untoothed ring. This configuration is engineered for applications demanding precise rotational control and durability under heavy loads. The preloaded design minimizes clearance, enhancing rigidity and stability for accurate positioning and load distribution. The lubrication nipple facilitates easy access for maintenance, ensuring consistent lubrication to prolong operational life. Ideal for industrial machinery such as cranes, excavators, and wind turbines, this bearing type excels in environments requiring reliable performance and minimal downtime.
QIBR
Model Selection
| NO. | Product | Product Number | Outer Diameter (Da) | Internal diameter on outer ring (Di) | External bolt circle diameter (La) | Inner diameter (di) | Gear Type | External diameter on inner ring (da) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
XSI 14 0414 N | 484mm | 415mm | 460mm | 325mm | Internal Gear | 411mm |
| 2 |
|
XSI 14 0544 N | 614mm | 545mm | 590mm | 444mm | Internal Gear | 541mm |
| 3 |
|
XSI 14 0644 N | 714mm | 645mm | 690mm | 546mm | Internal Gear | 641mm |
| 4 |
|
XSI 14 0744 N | 814mm | 745mm | 790mm | 648mm | Internal Gear | 741mm |
| 5 |
|
XSI 14 0844 N | 914mm | 845mm | 890mm | 736mm | Internal Gear | 841mm |
| 6 |
|
XSI 14 0944 N | 1014mm | 945mm | 990mm | 840mm | Internal Gear | 941mm |
| 7 |
|
XSI 14 1094 N | 1164mm | 1095mm | 1140mm | 984mm | Internal Gear | 1091mm |
