Изображения могут отличаться от продукта. Подробнее см. технические характеристики.
Стандарт
GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh
Внутренний диаметр
120mm-8000mm
Наружный диаметр
280mm-8000mm
Вес
20kg-8000kg
Structures
Outer Ring, Inner Ring, Spacer, Rolling element, Seal
Бренд
QIBR/OEM/Neutral
Упаковка
Standard Export Package
Материал
42CrMo, 50Mn, or Stainless Steel
Применения
Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

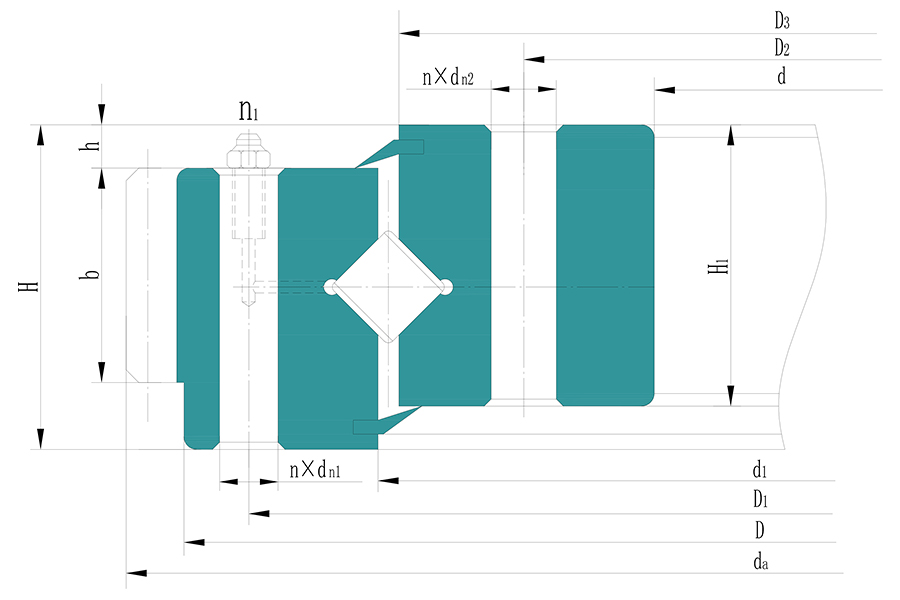

NO. | Product | Product Number | Внутренний диаметр (d) | Наружный диаметр (D) | Общая высота (H) | Глубина (L) | Диаметр наконечника (da) | Тип шестерни |
---|---|---|---|---|---|---|---|---|
1 |
![]() |
112.25.500 | 398 mm | 602 mm | 75 mm | 32 mm | 628.8 mm | External Gear |
2 |
![]() |
112.25.560 | 458 mm | 662 mm | 75 mm | 32 mm | 688.8 mm | External Gear |
3 |
![]() |
112.25.630 | 528 mm | 732 mm | 75 mm | 32 mm | 491.2 mm | External Gear |
4 |
![]() |
112.25.710 | 608 mm | 812 mm | 75 mm | 32 mm | 854.4 mm | External Gear |
5 |
![]() |
112.28.800 | 678 mm | 922 mm | 82 mm | 40 mm | 968 mm | External Gear |
6 |
![]() |
112.28.900 | 778 mm | 1022 mm | 82 mm | 40 mm | 1068 mm | External Gear |
7 |
![]() |
112.28.1000 | 878 mm | 1122 mm | 82 mm | 40 mm | 1185.6 mm | External Gear |
8 |
![]() |
112.25.1120 | 998 mm | 1242 mm | 82 mm | 40 mm | 1305.6 mm | External Gear |
9 |
![]() |
112.32.1250 | 1110 mm | 1390 mm | 91 mm | 48 mm | 1453.2 mm | External Gear |
10 |
![]() |
112.32.1400 | 1260 mm | 1540 mm | 91 mm | 48 mm | 1607.2 mm | External Gear |
11 |
![]() |
112.32.1600 | 1460 mm | 1740 mm | 91 mm | 48 mm | 1820.8 mm | External Gear |
12 |
![]() |
112.32.1800 | 1660 mm | 1940 mm | 91 mm | 48 mm | 2012.8 mm | External Gear |
13 |
![]() |
112.40.2000 | 1825 mm | 2178 mm | 112 mm | 60 mm | 2264.4 mm | External Gear |
14 |
![]() |
112.40.2240 | 2065 mm | 2418 mm | 112 mm | 60 mm | 2498.4 mm | External Gear |
15 |
![]() |
112.40.2500 | 2325 mm | 2678 mm | 112 mm | 60 mm | 2776 mm | External Gear |
16 |
![]() |
112.40.2800 | 2625 mm | 2978 mm | 112 mm | 60 mm | 3076 mm | External Gear |
17 |
![]() |
112.50.3150 | 2922 mm | 3376 mm | 134 mm | 84 mm | 3471.6 mm | External Gear |
18 |
![]() |
112.50.3550 | 3322 mm | 3776 mm | 134 mm | 84 mm | 3889.6 mm | External Gear |
19 |
![]() |
112.50.4000 | 3772 mm | 4226 mm | 134 mm | 84 mm | 4345 mm | External Gear |
20 |
![]() |
112.50.4500 | 4272 mm | 4726 mm | 134 mm | 84 mm | 4845 mm | External Gear |
Features and advantages of QIBR crossed cylindrical roller slewing bearing 112 series
The 112 series of QIBR crossed cylindrical roller slewing bearings have several significant features and advantages and play a key role in various fields, mainly reflected in the following aspects:
1.QIBR crossed cylindrical roller slewing bearing 112 series has high load-bearing capacity
The large module of the external teeth of QIBR crossed cylindrical roller slewing bearings 112 series allows greater tangential force on the surface of teeth, making it suitable for applications that bear heavy loads and impact loads.
2. QIBR crossed cylindrical roller slewing bearing series 112 has good stability and long life.
QIBR crossed cylindrical roller slewing bearing series 112 has high manufacturing precision and small assembly clearance. The bearing has high working stability, reduces system vibration and noise, improves the smoothness and reliability of operation, thereby extends the service life of the bearing.
3. The customized services of QIBR crossed cylindrical roller slewing bearing 112 series
QIBR crossed cylindrical roller slewing bearing 112 series can provide customized services and can design bearings according to specific needs to meet the special requirements and operating conditions of different industries.
4.QIBR crossed cylindrical roller slewing bearing 112 series has efficient transmission capability
The design of external teeth for QIBR crossed cylindrical roller slewing bearing 112 series allows direct connection with gear drive systems, resulting in efficient power transmission. This eliminates additional transmission components such as chains or belts, reducing mechanical wear and maintenance requirements.
The performance improvement and solutions of QIBR crossed cylindrical roller turntable bearing 112 series
1. Improve material performance of the bearing
QIBR Crossed Cylindrical Roller Turntable Bearing 112 Series can improve the material performance and service life of the bearing through surface corrosion protection.
2. Improve rotation accuracy of the bearing
The production of QIBR Crossed Cylindrical Roller Turntable Bearing 112 Series adopts advanced processing equipment and processes, such as machining centers and precision heat treatment, to improve the geometric accuracy of the inner and outer rings, reduce machining errors, and thus improve the rotation accuracy and stability of the bearing.
3. Reduce the need for bearing maintenance and replacement
QIBR Crossed Cylindrical Roller Turntable Bearing 112 Series is designed with seals and lubrication holes. The seals can prevent contaminants from entering the bearing and reduce grease leakage; the lubrication holes are convenient for grease filling, which extends the service life and reduces the cost of maintenance and replacement.
4. Personalized design
For different occasions, QIBR Crossed Cylindrical Roller Turntable Bearing 112 Series can provide personalized size solutions to meet special applications. This not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.
In conclusion, by optimizing materials, manufacturing precision, and personalized design, the performance of the QIBR crossed cylindrical roller slewing bearing 112 series can be significantly improved to meet increasingly demanding application requirements.
Main application areas of QIBR crossed cylindrical roller slewing bearing series 112
Machine tools
QIBR crossed cylindrical roller slewing bearing series 112 ensures high-precision rotation stability in the turntable system of CNC machine tools.
Medical equipment: QIBR crossed cylindrical roller slewing bearing series 112 is used in imaging equipment such as CT and operating tables to ensure smooth operation and high-precision positioning.
Heavy equipment: QIBR crossed cylindrical roller slewing bearing series 112 provides strong support and anti-overturning ability in mining machinery, cranes and construction equipment.
Shipping and offshore engineering: QIBR crossed cylindrical roller slewing bearing series 112 is used in ship's rotating devices and offshore platforms to withstand loads in harsh environments.
