VR

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Макс. ход

12mm-588mm

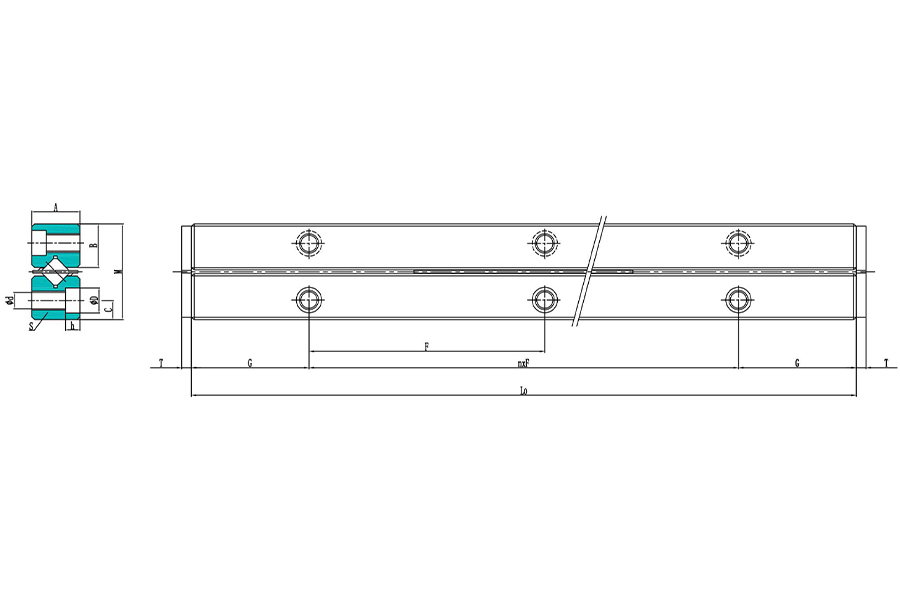

Общая высота рельса (M)

8.5mm-83mm

Ширина рельса (A)

4mm-40mm

Длина рельса (Lo)

20mm-1200mm

Вес

0.11kg/m-10.50kg/m

VR

Filters

NO. Product Product Number Макс. ход Общая высота рельса (M) Ширина рельса (A) Длина рельса (Lo) Вес
1 VR VR 1-20×5Z 12 mm 8.5 mm 4 mm 20 mm 0.11 kg/m
2 VR VR 1-30×7Z 22 mm 8.5 mm 4 mm 30 mm 0.11 kg/m
3 VR VR 1-40×10Z 27 mm 8.5 mm 4 mm 40 mm 0.11 kg/m
4 VR VR 1-50×13Z 32 mm 8.5 mm 4 mm 50 mm 0.11 kg/m
5 VR VR 1-60×16Z 37 mm 8.5 mm 4 mm 60 mm 0.11 kg/m
6 VR VR 1-70×19Z 42 mm 8.5 mm 4 mm 70 mm 0.11 kg/m
7 VR VR 1-80×21Z 52 mm 8.5 mm 4 mm 80 mm 0.11 kg/m
8 VR VR 2- 30×5Z 18 mm 12 mm 6 mm 30 mm 0.23 kg/m
9 VR VR 2- 45×8Z 24 mm 12 mm 6 mm 45 mm 0.23 kg/m
10 VR VR 2- 60×11Z 30 mm 12 mm 6 mm 60 mm 0.23 kg/m
11 VR VR 2- 75×13Z 44 mm 12 mm 6 mm 75 mm 0.23 kg/m
12 VR VR 2- 90×16Z 50 mm 12 mm 6 mm 90 mm 0.23 kg/m
13 VR VR 2-105×18Z 64 mm 12 mm 6 mm 105 mm 0.23 kg/m
14 VR VR 2-120×21Z 70 mm 12 mm 6 mm 120 mm 0.23 kg/m
15 VR VR 2-135×23Z 84 mm 12 mm 6 mm 135 mm 0.23 kg/m
16 VR VR 2-150×26Z 90 mm 12 mm 6 mm 150 mm 0.23 kg/m
17 VR VR 2-165×29Z 96 mm 12 mm 6 mm 165 mm 0.23 kg/m
18 VR VR 2-180×32Z 102 mm 12 mm 6 mm 180 mm 0.23 kg/m
19 VR VR 3- 50×7Z 28 mm 18 mm 8 mm 50 mm 0.45 kg/m
20 VR VR 3- 75×10Z 48 mm 18 mm 8 mm 75 mm 0.45 kg/m
21 VR VR 3-100×14Z 58 mm 18 mm 8 mm 100 mm 0.45 kg/m
22 VR VR 3-125×17Z 78 mm 18 mm 8 mm 125 mm 0.45 kg/m
23 VR VR 3-150×21Z 88 mm 18 mm 8 mm 150 mm 0.45 kg/m
24 VR VR 3-175×24Z 108 mm 18 mm 8 mm 175 mm 0.45 kg/m
25 VR VR 3-200×28Z 118 mm 18 mm 8 mm 200 mm 0.45 kg/m
26 VR VR 3-225×31Z 138 mm 18 mm 8 mm 225 mm 0.45 kg/m
27 VR VR 3-250×35Z 148 mm 18 mm 8 mm 250 mm 0.45 kg/m
28 VR VR 3-275×38Z 168 mm 18 mm 8 mm 275 mm 0.45 kg/m
29 VR VR 3-300×42Z 178 mm 18 mm 8 mm 300 mm 0.45 kg/m
30 VR VR 4- 80×7Z 58 mm 22 mm 11 mm 80 mm 0.80 kg/m
31 VR VR 4-120×11Z 82 mm 22 mm 11 mm 120 mm 0.80 kg/m
32 VR VR 4-160×15Z 106 mm 22 mm 11 mm 160 mm 0.80 kg/m
33 VR VR 4-200×19Z 130 mm 22 mm 11 mm 200 mm 0.80 kg/m
34 VR VR 4-240×23Z 154 mm 22 mm 11 mm 240 mm 0.80 kg/m
35 VR VR 4-280×27Z 178 mm 22 mm 11 mm 280 mm 0.80 kg/m
36 VR VR 4-320×31Z 202 mm 22 mm 11 mm 320 mm 0.80 kg/m
37 VR VR 4-360×35Z 226 mm 22 mm 11 mm 360 mm 0.80 kg/m
38 VR VR 4-400×39Z 250 mm 22 mm 11 mm 400 mm 0.80 kg/m
39 VR VR 4-440×43Z 274 mm 22 mm 11 mm 440 mm 0.80 kg/m
40 VR VR 4-480×47Z 298 mm 22 mm 11 mm 480 mm 0.80 kg/m
41 VR VR 6-100×7Z 56 mm 30 mm 15 mm 100 mm 1.50 kg/m
42 VR VR 6-150×10Z 96 mm 30 mm 15 mm 150 mm 1.50 kg/m
43 VR VR 6-200×13Z 136 mm 30 mm 15 mm 200 mm 1.50 kg/m
44 VR VR 6-250×17Z 156 mm 30 mm 15 mm 250 mm 1.50 kg/m
45 VR VR 6-300×20Z 196 mm 30 mm 15 mm 300 mm 1.50 kg/m
46 VR VR 6-350×24Z 216 mm 30 mm 15 mm 350 mm 1.50 kg/m
47 VR VR 6-400×27Z 256 mm 30 mm 15 mm 400 mm 1.50 kg/m
48 VR VR 6-450×31Z 276 mm 30 mm 15 mm 450 mm 1.50 kg/m
49 VR VR 6-500×34Z 316 mm 30 mm 15 mm 500 mm 1.50 kg/m
50 VR VR 6-550×38Z 336 mm 30 mm 15 mm 550 mm 1.50 kg/m
51 VR VR 6-600×41Z 376 mm 30 mm 15 mm 600 mm 1.50 kg/m
52 VR VR 9- 200×10Z 118 mm 40 mm(40.74 mm) 20 mm 200 mm 3.20 kg/m
53 VR VR 9- 300×15Z 178 mm 40 mm(40.74 mm) 20 mm 300 mm 3.20 kg/m
54 VR VR 9- 400×20Z 238 mm 40 mm(40.74 mm) 20 mm 400 mm 3.20 kg/m
55 VR VR 9- 500×25Z 298 mm 40 mm(40.74 mm) 20 mm 500 mm 3.20 kg/m
56 VR VR 9- 600×30Z 358 mm 40 mm(40.74 mm) 20 mm 600 mm 3.20 kg/m
57 VR VR 9- 700×35Z 418 mm 40 mm(40.74 mm) 20 mm 700 mm 3.20 kg/m
58 VR VR 9- 800×40Z 478 mm 40 mm(40.74 mm) 20 mm 800 mm 3.20 kg/m
59 VR VR 9- 900×45Z 538 mm 40 mm(40.74 mm) 20 mm 900 mm 3.20 kg/m
60 VR VR 9-1000×50Z 598 mm 40 mm(40.74 mm) 20 mm 1000 mm 3.20 kg/m
61 VR VR 9-1100×55Z 658 mm 40 mm(40.74 mm) 20 mm 1100 mm 3.20 kg/m
62 VR VR 9-1200×60Z 718 mm 40 mm(40.74 mm) 20 mm 1200 mm 3.20 kg/m
63 VR12- VR12- 200×7Z 110 mm 58 mm(57.86 mm) 28 mm 200 mm 5.30 kg/m
64 VR12- VR12- 300×10Z 190 mm 58 mm(57.86 mm) 28 mm 300 mm 5.30 kg/m
65 VR12- VR12- 400×14Z 230 mm 58 mm(57.86 mm) 28 mm 400 mm 5.30 kg/m
66 VR12- VR12- 500×17Z 310 mm 58 mm(57.86 mm) 28 mm 500 mm 5.30 kg/m
67 VR12- VR12- 600×21Z 350 mm 58 mm(57.86 mm) 28 mm 600 mm 5.30 kg/m
68 VR12- VR12- 700×24Z 430 mm 58 mm(57.86 mm) 28 mm 700 mm 5.30 kg/m
69 VR12- VR12- 800×28Z 470 mm 58 mm(57.86 mm) 28 mm 800 mm 5.30 kg/m
70 VR12- VR12- 900×31Z 550 mm 58 mm(57.86 mm) 28 mm 900 mm 5.30 kg/m
71 VR12-1000×34Z/ VR12-1000×34Z 630 mm 58 mm(57.86 mm) 28 mm 1000 mm 5.30 kg/m
72 VR12-1100×38Z/ VR12-1100×38Z 670 mm 58 mm(57.86 mm) 28 mm 1100 mm 5.30 kg/m
73 VR12-1200×41Z/ VR12-1200×41Z 750 mm 58 mm(57.86 mm) 28 mm 1200 mm 5.30 kg/m
74 VR15- VR15- 300×8Z 190 mm 71 mm(71.11 mm) 36 mm 300 mm 8.30 kg/m
75 VR15- VR15- 400×11Z 240 mm 71 mm(71.11 mm) 36 mm 400 mm 8.30 kg/m
76 VR15- VR15- 500×13Z 340 mm 71 mm(71.11 mm) 36 mm 500 mm 8.30 kg/m
77 VR15- VR15- 600×16Z 390 mm 71 mm(71.11 mm) 36 mm 600 mm 8.30 kg/m
78 VR15- VR15- 700×19Z 440 mm 71 mm(71.11 mm) 36 mm 700 mm 8.30 kg/m
79 VR15- VR15- 800×22Z 490 mm 71 mm(71.11 mm) 36 mm 800 mm 8.30 kg/m
80 VR15- VR15- 900×25Z 540 mm 71 mm(71.11 mm) 36 mm 900 mm 8.30 kg/m
81 VR15-1000×27Z/ VR15-1000×27Z 640 mm 71 mm(71.11 mm) 36 mm 1000 mm 8.30 kg/m
82 VR15-1100×30Z/ VR15-1100×30Z 690 mm 71 mm(71.11 mm) 36 mm 1100 mm 8.30 kg/m
83 VR15-1200×33Z/ VR15-1200×33Z 740 mm 71 mm(71.11 mm) 36 mm 1200 mm 8.30 kg/m
84 VR18- VR18- 300×6Z 228 mm 83 mm 40 mm 300 mm 10.50 kg/m
85 VR18- VR18- 400×9Z 248 mm 83 mm 40 mm 400 mm 10.50 kg/m
86 VR18- VR18- 500×11Z 328 mm 83 mm 40 mm 500 mm 10.50 kg/m
87 VR18- VR18- 600×13Z 408 mm 83 mm 40 mm 600 mm 10.50 kg/m
88 VR18- VR18- 700×16Z 428 mm 83 mm 40 mm 700 mm 10.50 kg/m
89 VR18- VR18- 800×18Z 508 mm 83 mm 40 mm 800 mm 10.50 kg/m
90 VR18- VR18- 900×20Z 588 mm 83 mm 40 mm 900 mm 10.50 kg/m
91 VR18-1000×23Z/ VR18-1000×23Z 608 mm 83 mm 40 mm 1000 mm 10.50 kg/m
92 VR18-1100×25Z/ VR18-1100×25Z 688 mm 83 mm 40 mm 1100 mm 10.50 kg/m
93 VR18-1200×27Z/ VR18-1200×27Z 768 mm 83 mm 40 mm 1200 mm 10.50 kg/m

Features and advantages of cross-roller guides VR series

The cross-roller guides VR series have addressed several key issues across various fields, primarily reflected in the following aspects:

1. High rigidity and load capacity

Multidirectional load-bearing: Since the rollers in the Cross-roller guides VR series are arranged at a 45° angle, they can simultaneously bear loads from multiple directions (such as axial, radial, and tilting forces), significantly enhancing system rigidity.

High load capacity: This design allows it to support greater loads, making it especially suitable for mechanical systems that require handling heavy weights or high loads.

2. High precision and low clearance

Precision motion: Due to the small contact area between the rollers and the guide rail, friction is minimized, ensuring extremely high motion accuracy and stability.

Low-clearance design: The precision manufacturing process ensures minimal clearance between the guide rail and rollers, making the VR Series ideal for applications requiring high-precision positioning.

3. Smooth operation and reduced vibration

Low friction: Unlike traditional ball guides, the contact method between the rollers and the guide rail significantly reduces friction, minimizing heat generation and wear.

Vibration reduction: Smooth motion characteristics help minimize vibrations caused by friction and uneven movement, further improving system stability and precision.

4. High durability and long service life

Strong wear resistance: The rollers and guide rails in the VR Series are typically made from high-hardness, wear-resistant materials (such as bearing steel and stainless steel), ensuring excellent wear resistance over long-term use.

High load resistance: Thanks to its specialized structure and material selection, the VR series maintains excellent performance under high-load conditions, reducing wear and failure rates.

5. Compact design

Space-saving: The VR series features a compact design that provides high load capacity within a limited space, making it ideal for applications where space is constrained.

Performance enhancements and solutions for cross-roller guides VR series

1. Material improvements

High-performance steel: The use of high-strength, wear-resistant steel, such as high-alloy steel or ceramic-coated steel, extends the service life and load-bearing capacity of the roller guide.

Surface coating technology: Treatments such as nitriding on the rollers and guide rails enhance wear resistance, reduce friction, and improve operational stability.

2. Precision machining

High-precision processing: Advanced manufacturing techniques such as CNC machining and ultra-precision grinding ensure dimensional accuracy and surface smoothness, minimizing errors that cause vibrations and motion instability.

3. Optimized roller design

Geometric optimization of rollers: Enhancing the roller shape increases the contact area and load capacity, reduces localized pressure, and extends the service life of the guide.

4. Increased rigidity and damping capabilities

Optimized rigidity design: Enhancing the rigidity of the guide rail reduces deformation during high-speed movement or under heavy loads. This can be achieved through optimized cross-section design or the use of composite materials.

Integration of damping systems: The introduction of damping elements such as springs and dampers into the guide rail system effectively absorbs movement-induced vibrations, maintaining smooth motion and positioning accuracy.

Main application fields of cross-roller guides VR series

1. Precision machinery equipment

The cross-roller guides VR series are widely used in precision machine tools, machining centers, CNC machines, and milling machines. These machines require high-precision linear motion, and the VR Series provides stable and precise support and guidance to ensure machining accuracy.

2. Automation equipment

In automated production lines, cross-roller guides VR series are used in transfer devices, automated handling systems, and sorting systems. These applications require stable linear motion and efficient load support, making the VR Series a key component.

3. Medical equipment

In high-precision medical devices such as CT scanners and MRI machines, cross-roller guides VR series enable precise component movement, ensuring high-quality imaging and diagnostic accuracy.

4. Laser cutting machines and 3D printers

Cross-roller guides VR series are used in laser cutting machines and 3D printers to handle machine movement loads, ensuring motion accuracy and stability, and ultimately improving cutting and printing quality.
