RUS Series
Linear roller bearings have the advantages of high precision, low friction, high rigidity and long life. They can operate smoothly at heavy loads and high speeds and are suitable for high-precision machine tools and automation equipment. The structural design of linear roller bearings enables them to withstand large radial and axial loads while maintaining high precision movement.
QIBR
Model Selection

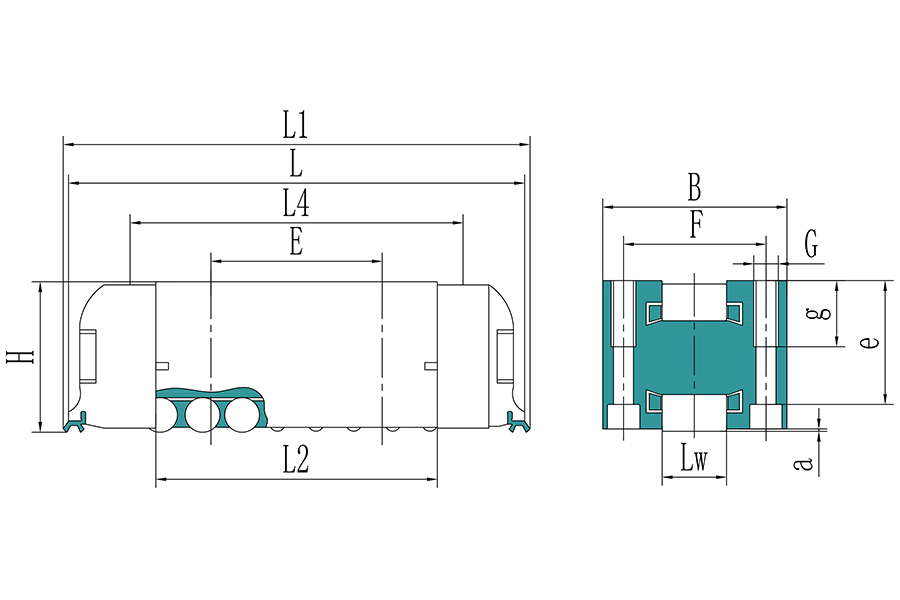

| NO. | Product | Product Number | Mass (kg) | Height (H) | Length (L) | Width (B) | Total Length (L1) | Mounting Dimension (L2) | Mounting Dimension (Lw) | Mounting Dimension (a) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
|
RUS 19069 | 0.16 | 19mm | 69mm | 27mm | 75mm | 44mm | 10mm | 0.2mm |
| 2 |
|
RUS 19105 | 0.27 | 19mm | 105mm | 27mm | 111mm | 78.5mm | 10mm | 0.2mm |
| 3 |
|
RUS 26086 | 0.41 | 26mm | 86mm | 40mm | 92mm | 53mm | 14mm | 0.2mm |
| 4 |
|
RUS 26102 | 0.53 | 26mm | 102mm | 40mm | 108mm | 69mm | 14mm | 0.2mm |
| 5 |
|
RUS 26126 | 0.70 | 26mm | 126mm | 40mm | 132mm | 93mm | 14mm | 0.2mm |
| 6 |
|
RUS 38134 | 1.27 | 38mm | 133mm | 52mm | 133mm | 85mm | 14mm | 0.2mm |
| 7 |
|
RUS 38206 | 2.28 | 38mm | 206mm | 52mm | 206mm | 158mm | 20mm | 0.2mm |
| 8 |
|
RUS 65210 | 7.5 | 65mm | 211mm | 76mm | 234mm | 134mm | 30mm | 0.5mm |
| 9 |
|
RUS 85280 | 16 | 85mm | 281mm | 104mm | 303mm | 185mm | 40mm | 0.5mm |
