Ceramic Deep Groove Ball Bearing
Ceramic deep groove ball bearings are commonly used in a wide range of industries and applications, including aerospace, automotive, medical equipment, semiconductor manufacturing, and high-performance machinery.
ceramic deep groove ball bearings offer several advantages over traditional steel bearings, including high temperature and corrosion resistance, lightweight design, low friction, and increased durability. These properties make them well-suited for demanding applications where reliability, performance, and longevity are essential.
QIBR
Model Selection

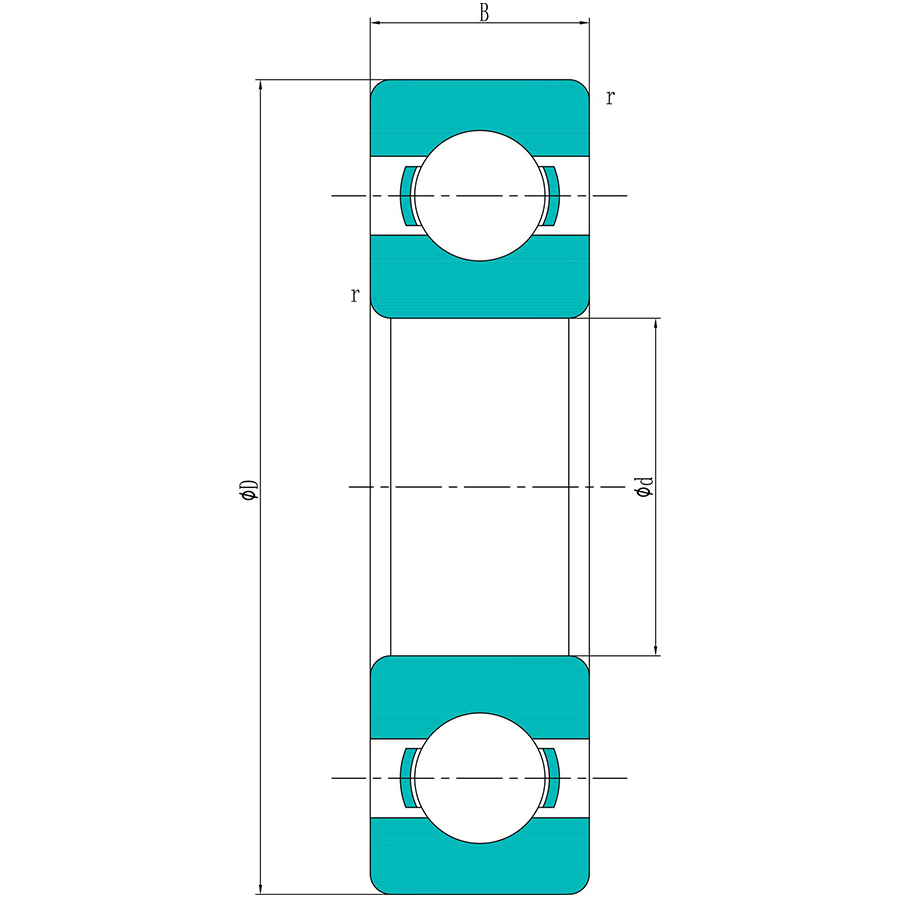

| NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Width (B) | Mass(M) | Basic Rated Load(N) | Allowable Speed(rpm) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
624 | 13mm | 4mm | 5mm | 0.55g | 2.84 | 1120 |
| 2 |
|
625 | 16mm | 5mm | 5mm | 0.9g | 5.88 | 900 |
| 3 |
|
605 | 14mm | 5mm | 5mm | 0.65g | 3.92 | 1000 |
| 4 |
|
626 | 19mm | 6mm | 6mm | 1.5g | 6.86 | 760 |
| 5 |
|
606 | 17mm | 6mm | 6mm | 1.2g | 6.86 | 830 |
| 6 |
|
696 | 15mm | 6mm | 5mm | 0.75g | 4.9 | 900 |
| 7 |
|
628 | 24mm | 8mm | 8mm | 3.2g | 12.74 | 600 |
| 8 |
|
608 | 22mm | 8mm | 7mm | 2.4g | 12.74 | 630 |
| 9 |
|
698 | 19mm | 8mm | 6mm | 1.3g | 5.88 | 700 |
| 10 |
|
6200 | 30mm | 10mm | 9mm | 5.6g | 21.56 | 460 |
| 11 |
|
6000 | 26mm | 10mm | 8mm | 3.5g | 12.74 | 520 |
| 12 |
|
6900 | 22mm | 10mm | 6mm | 1.9g | 12.74 | 590 |
| 13 |
|
6201 | 32mm | 12mm | 10mm | 7g | 24.50 | 430 |
| 14 |
|
6001 | 28mm | 12mm | 8mm | 4g | 15.68 | 470 |
| 15 |
|
6901 | 24mm | 12mm | 6mm | 1.9g | 11.76 | 530 |
| 16 |
|
6202 | 35mm | 15mm | 11mm | 8.8g | 29.40 | 380 |
| 17 |
|
6002 | 32mm | 15mm | 9mm | 5.7g | 24.50 | 400 |
| 18 |
|
6902 | 28mm | 15mm | 7mm | 3g | 15.68 | 440 |
| 19 |
|
6203 | 40mm | 17mm | 12mm | 12.8g | 39.20 | 330 |
| 20 |
|
6003 | 35mm | 17mm | 10mm | 7.3g | 29.40 | 360 |
| 21 |
|
6903 | 30mm | 17mm | 7mm | 3.3g | 19.60 | 400 |
| 22 |
|
6204 | 47mm | 20mm | 14mm | 20g | 49.00 | 280 |
| 23 |
|
6004 | 42mm | 20mm | 12mm | 12.6g | 35.28 | 300 |
| 24 |
|
6904 | 32mm | 20mm | 9mm | 8.8g | 32.34 | 330 |
