RAU

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Материал

52100/100Cr6/SUJ2/Stainless Steel

Бренд

QIBR/OEM/Neutral

Упаковка

QIBR/Standard Industrial Package/OEM

Внутренний диаметр

10~200mm

Наружный диаметр

21~226mm

Применения

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

RAU

Filters

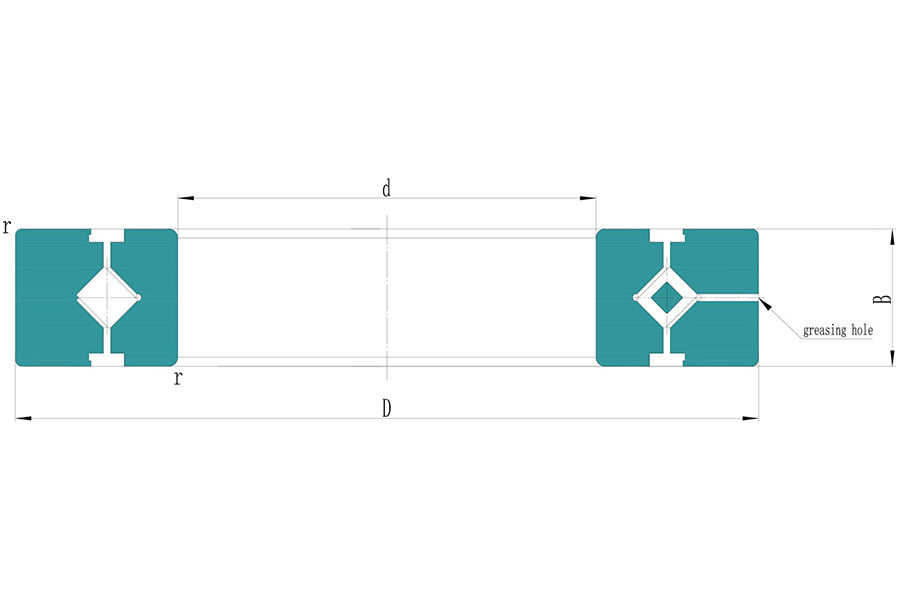

NO. Product Product Number Вес Тип Размер фаски (r) Внутренний диаметр (d) Наружный диаметр (D) Ширина (B B1)
1 QRAU QRAU 1005 0.009 kg Open 0.15 mm 10 mm 21 mm 5 mm
2 QRAU QRAU 1505 0.012 kg Open 0.15 mm 15 mm 26 mm 5 mm
3 QRAU QRAU 2005 0.015 kg Open 0.15 mm 20 mm 31 mm 5 mm
4 QRAU QRAU 3005 0.021 kg Open 0.15 mm 30 mm 41 mm 5 mm
5 QRAU QRAU 4005 0.027 kg Open 0.15 mm 40 mm 51 mm 5 mm
6 QRAU QRAU 5005 0.032 kg Open 0.15 mm 50 mm 61 mm 5 mm
7 QRAU QRAU 6005 0.038 kg Open 0.15 mm 60 mm 71 mm 5 mm
8 QRAU QRAU 7005 0.044 kg Open 0.15 mm 70 mm 81 mm 5 mm
9 QRAU QRAU 8005 0.05 kg Open 0.15 mm 80 mm 91 mm 5 mm
10 QRAU QRAU 9005 0.056 kg Open 0.15 mm 90 mm 101 mm 5 mm
11 QRAU QRAU 10005 0.061 kg Open 0.15 mm 100 mm 111 mm 5 mm
12 QRAU QRAU 5008 0.08 kg Open 0.5 mm 50 mm 66 mm 8 mm
13 QRAU QRAU 6008 0.09 kg Open 0.5 mm 60 mm 76 mm 8 mm
14 QRAU QRAU 7008 0.1 kg Open 0.5 mm 70 mm 86 mm 8 mm
15 QRAU QRAU 8008 0.11 kg Open 0.5 mm 80 mm 96 mm 8 mm
16 QRAU QRAU 9008 0.12 kg Open 0.5 mm 90 mm 106 mm 8 mm
17 QRAU QRAU 10008 0.14 kg Open 0.5 mm 100 mm 116 mm 8 mm
18 QRAU QRAU 11008 0.15 kg Open 0.5 mm 110 mm 126 mm 8 mm
19 QRAU QRAU 12008 0.17 kg Open 0.5 mm 120 mm 136 mm 8 mm
20 QRAU QRAU 13008 0.18 kg Open 130 mm 146 mm 8 mm
21 QRAU QRAU 14008 0.19 kg Open 0.5 mm 140 mm 156 mm 8 mm
22 QRAU QRAU 15008 0.2 kg Open 0.5 mm 150 mm 166 mm 8 mm
23 QRAU QRAU 16013 0.59 kg Open 0.8 mm 160 mm 186 mm 13 mm
24 QRAU QRAU 17013 0.64 kg Open 0.8 mm 170 mm 196 mm 13 mm
25 QRAU QRAU 18013 0.68 kg Open 0.8 mm 180 mm 206 mm 13 mm
26 QRAU QRAU 19013 0.69 kg Open 0.8 mm 190 mm 216 mm 13 mm
27 QRAU QRAU 20013 0.71 kg Open 0.8 mm 200 mm 226 mm 13 mm

Characteristics and advantages of QIBR cross cylindrical roller bearing RAU series

The QIBR cross cylindrical roller bearing RAU series has multiple significant characteristics and advantages, which solve key problems in various fields, mainly reflected in the following aspects;

1. The QIBR cross cylindrical roller bearing RAU series has the characteristics of high rigidity and high load-bearing capacity

Although the QIBR cross cylindrical roller bearing RAU series is compact in design, it has good rigidity and load-bearing capacity, making it suitable for high load applications.

2. The QIBR cross cylindrical roller bearing RAU series has the characteristic of optimized structural design

The QIBR cross cylindrical roller bearing RAU series has an integrated inner and outer ring structure, which can be used for outer ring rotation and inner ring rotation.

3. The QIBR cross cylindrical roller bearing RAU series has the characteristics of low friction and high efficiency

The QIBR cross cylindrical roller bearing RAU series reduces bearing friction torque and is suitable for use with low driving torque requirements, improving the overall operating efficiency of the equipment.

4. QIBR Cross Cylindrical Roller Bearing RAU Series Customized Service

The QIBR cross cylindrical roller bearing RAU series usually provides customized services, which can design bearings according to specific needs, meet the special requirements and operating conditions.

Performance Enhancement and Solutions of QIBR Cross Cylindrical Roller Bearing RAU Series

1. Effectively improving material properties and enhancing high load-bearing capacity

The production of QIBR cross cylindrical roller bearings RAU series uses high-quality steel to manufacture the inner and outer rings and balls, and improves the surface hardness and material properties through vacuum heat treatment, enhancing the bearing's load capacity and service life.

2. Improve manufacturing accuracy and load capacity

The production of QIBR cross cylindrical roller bearings RAU series adopts advanced processing equipment and technology from abroad, such as precision grinding, to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, and thus improve the rotational accuracy and operational stability of the bearings.

3. Personalization

Provide personalized structural dimension solutions to meet specific performance requirements for QIBR cross cylindrical roller bearing RAU series applications in different scenarios. This method not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.

In summary, by optimizing materials, manufacturing accuracy, personalized design, and other measures, the performance of the QIBR cross cylindrical roller bearing RAU series can be significantly improved to meet increasingly demanding application requirements.

The main application of QIBR cross cylindrical roller bearing RAU series

High end CNC lathes

The QIBR cross cylindrical roller bearing RAU series can improve the machining accuracy of lathes and ensure the production of high-quality parts. Provide stable support and precise workpiece positioning in high-precision machining.

Rotating worktable

The QIBR cross cylindrical roller bearing RAU series has extremely high rigidity and can effectively withstand loads from all directions, which enables the rotating worktable to maintain higher stability and accuracy during operation.

Aerospace

The QIBR cross cylindrical roller bearing RAU series provides high load support in confined spaces, making it ideal for applications with limited space. Ensure accuracy and stability in the attitude adjustment system of the satellite.
