Standard Inch Thin-Section Ball Bearing Series – Sealed Type C
The Standard Inch Thin-Section Ball Bearing Series – Sealed Type C provides a compact and lightweight solution with minimal cross-sectional dimensions, ideal for space-constrained applications, while offering enhanced protection against contamination and debris ingress through its sealed design.
QIBR
Model Selection

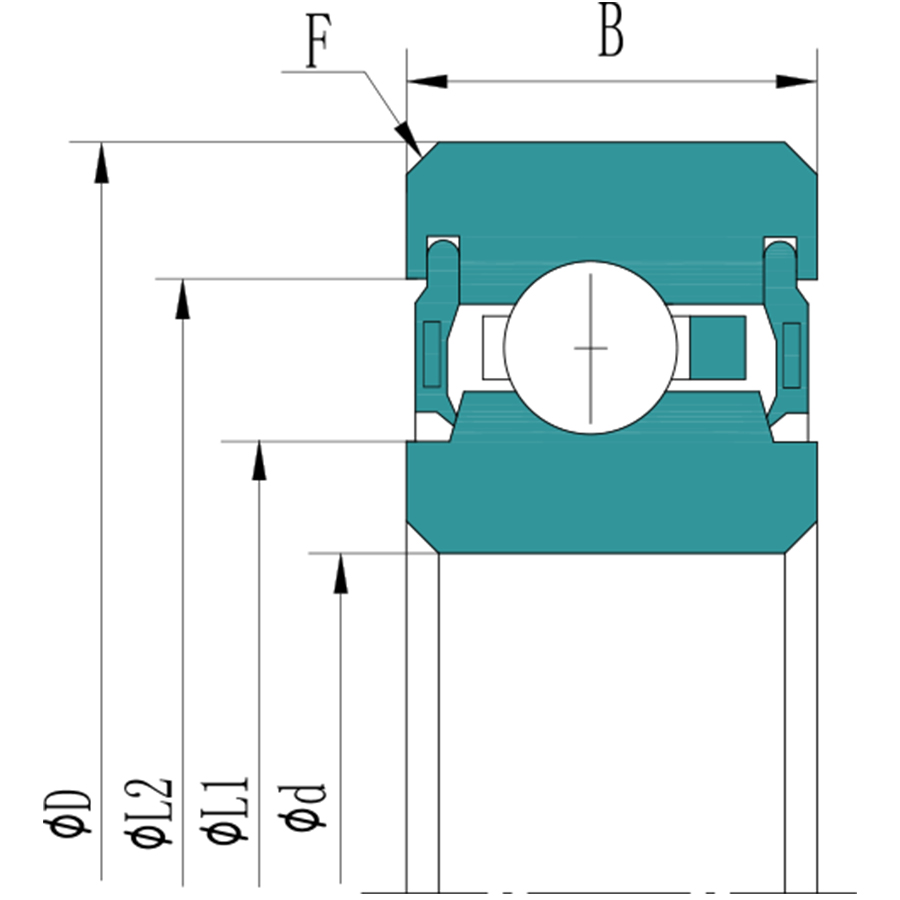

| NO. | Product | Product Number | Inner Diameter(d) | Outer Diameter(D) | Width(B) | Mass (lbs) | Land Diameters (L1) | Land Diameters(L2) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
QJHA10CL0 | 1.000 (in) | 1.375 (in) | 0.250 (in) | 0.035 | 1.108 (in) | 1.274 (in) |
| 2 |
|
QJHA15CL0 | 1.500 (in) | 1.875 (in) | 0.250 (in) | 0.052 | 1.608 (in) | 1.774 (in) |
| 3 |
|
QJHA17CL0 | 1.750 (in) | 2.125 (in) | 0.250 (in) | 0.060 | 1.858 (in) | 2.024 (in) |
| 4 |
|
QJA020CP0 | 2.000 (in) | 2.500 (in) | 0.250 (in) | 0.10 | 2.148 (in) | 2.356 (in) |
| 5 |
|
QJA025CP0 | 2.500 (in) | 3.000 (in) | 0.250 (in) | 0.12 | 2.648 (in) | 2.856 (in) |
| 6 |
|
QJA030CP0 | 3.000 (in) | 3.500 (in) | 0.250 (in) | 0.14 | 3.148 (in) | 3.356 (in) |
| 7 |
|
QJA035CP0 | 3.500 (in) | 4.000 (in) | 0.250 (in) | 0.17 | 3.648 (in) | 3.856 (in) |
| 8 |
|
QJA040CP0 | 4.000 (in) | 4.500 (in) | 0.250 (in) | 0.19 | 4.148 (in) | 4.356 (in) |
| 9 |
|
QJA042CP0 | 4.250 (in) | 4.750 (in) | 0.250 (in) | 0.20 | 4.398 (in) | 4.606 (in) |
| 10 |
|
QJA045CP0 | 4.500 (in) | 5.000 (in) | 0.250 (in) | 0.21 | 4.648 (in) | 4.856 (in) |
| 11 |
|
QJA047CP0 | 4.750 (in) | 5.250 (in) | 0.250 (in) | 0.22 | 4.898 (in) | 5.106 (in) |
| 12 |
|
QJA050CP0 | 5.000 (in) | 5.500 (in) | 0.250 (in) | 0.23 | 5.148 (in) | 5.356 (in) |
| 13 |
|
QJA055CP0 | 5.500 (in) | 6.000 (in) | 0.250 (in) | 0.25 | 5.648 (in) | 5.856 (in) |
| 14 |
|
QJA060CP0 | 6.000 (in) | 6.500 (in) | 0.250 (in) | 0.28 | 6.148 (in) | 6.356 (in) |
| 15 |
|
QJA065CP0 | 6.500 (in) | 7.000 (in) | 0.250 (in) | 0.30 | 6.648 (in) | 6.856 (in) |
| 16 |
|
QJB020CP0 | 2.000 (in) | 2.625 (in) | 0.3125 (in) | 0.15 | 2.199 (in) | 2.425 (in) |
| 17 |
|
QJB025CP0 | 2.500 (in) | 3.125 (in) | 0.3125 (in) | 0.19 | 2.699 (in) | 2.925 (in) |
| 18 |
|
QJB030CP0 | 3.000 (in) | 3.625 (in) | 0.3125 (in) | 0.22 | 3.199 (in) | 3.425 (in) |
| 19 |
|
QJB035CP0 | 3.500 (in) | 4.125 (in) | 0.3125 (in) | 0.27 | 3.699 (in) | 3.925 (in) |
| 20 |
|
QJB040CP0 | 4.000 (in) | 4.625 (in) | 0.3125 (in) | 0.30 | 4.199 (in) | 4.425 (in) |
| 21 |
|
QJB042CP0 | 4.250 (in) | 4.875 (in) | 0.3125 (in) | 0.31 | 4.449 (in) | 4.675 (in) |
| 22 |
|
QJB045CP0 | 4.500 (in) | 5.125 (in) | 0.3125 (in) | 0.34 | 4.699 (in) | 4.925 (in) |
| 23 |
|
QJB047CP0 | 4.750 (in) | 5.375 (in) | 0.3125 (in) | 0.35 | 4.949 (in) | 5.175 (in) |
| 24 |
|
QJB050CP0 | 5.000 (in) | 5.625 (in) | 0.3125 (in) | 0.37 | 5.199 (in) | 5.425 (in) |
| 25 |
|
QJB055CP0 | 5.500 (in) | 6.125 (in) | 0.3125 (in) | 0.40 | 5.699 (in) | 5.925 (in) |
| 26 |
|
QJB060CP0 | 6.000 (in) | 6.625 (in) | 0.3125 (in) | 0.44 | 6.199 (in) | 6.425 (in) |
| 27 |
|
QJB065CP0 | 6.500 (in) | 7.125 (in) | 0.3125 (in) | 0.47 | 6.699 (in) | 6.925 (in) |
| 28 |
|
QJU040CP0 | 4.000 (in) | 4.750 (in) | 0.500 (in) | 0.55 | 4.150 (in) | 4.547 (in) |
| 29 |
|
QJU042CP0 | 4.250 (in) | 5.000 (in) | 0.500 (in) | 0.58 | 4.400 (in) | 4.797 (in) |
| 30 |
|
QJU045CP0 | 4.500 (in) | 5.250 (in) | 0.500 (in) | 0.61 | 4.650 (in) | 5.047 (in) |
| 31 |
|
QJU047CP0 | 4.750 (in) | 5.500 (in) | 0.500 (in) | 0.65 | 4.900 (in) | 5.295 (in) |
| 32 |
|
QJU050CP0 | 5.000 (in) | 5.750 (in) | 0.500 (in) | 0.68 | 5.150 (in) | 5.545 (in) |
| 33 |
|
QJU055CP0 | 5.500 (in) | 6.250 (in) | 0.500 (in) | 0.74 | 5.650 (in) | 6.042 (in) |
| 34 |
|
QJU060CP0 | 6.000 (in) | 6.750 (in) | 0.500 (in) | 0.81 | 6.150 (in) | 6.542 (in) |
| 35 |
|
QJU065CP0 | 6.500 (in) | 7.250 (in) | 0.500 (in) | 0.87 | 6.650 (in) | 7.037 (in) |
| 36 |
|
QJU070CP0 | 7.000 (in) | 7.750 (in) | 0.500 (in) | 0.93 | 7.150 (in) | 7.537 (in) |
| 37 |
|
QJU075CP0 | 7.500 (in) | 8.250 (in) | 0.500 (in) | 0.99 | 7.650 (in) | 8.037 (in) |
| 38 |
|
QJU080CP0 | 8.000 (in) | 8.750 (in) | 0.500 (in) | 1.06 | 8.150 (in) | 8.537 (in) |
| 39 |
|
QJU090CP0 | 9.000 (in) | 9.750 (in) | 0.500 (in) | 1.18 | 9.150 (in) | 9.535 (in) |
| 40 |
|
QJU100CP0 | 10.000 (in) | 10.750 (in) | 0.500 (in) | 1.31 | 10.150 (in) | 10.535 (in) |
| 41 |
|
QJU110CP0 | 11.000 (in) | 11.750 (in) | 0.500 (in) | 1.43 | 11.150 (in) | 11.535 (in) |
| 42 |
|
QJU120CP0 | 12.000 (in) | 12.750 (in) | 0.500 (in) | 1.56 | 12.150 (in) | 12.535 (in) |
| 43 |
|
QJG070CP0 | 7.000 (in) | 9.000 (in) | 1.000 (in) | 5.8 | 7.554 (in) | 8.602 (in) |
| 44 |
|
QJG075CP0 | 7.500 (in) | 9.500 (in) | 1.000 (in) | 6.1 | 8.054 (in) | 9.102 (in) |
| 45 |
|
QJG080CP0 | 8.000 (in) | 10.000 (in) | 1.000 (in) | 6.5 | 8.554 (in) | 9.602 (in) |
| 46 |
|
QJG090CP0 | 9.000 (in) | 11.000 (in) | 1.000 (in) | 7.2 | 9.554 (in) | 10.602 (in) |
| 47 |
|
QJG100CP0 | 10.000 (in) | 12.000 (in) | 1.000 (in) | 7.9 | 10.554 (in) | 11.602 (in) |
| 48 |
|
QJG110CP0 | 11.000 (in) | 13.000 (in) | 1.000 (in) | 8.6 | 11.554 (in) | 12.602 (in) |
| 49 |
|
QJG120CP0 | 12.000 (in) | 14.000 (in) | 1.000 (in) | 9.3 | 12.554 (in) | 13.602 (in) |
| 50 |
|
QJG140CP0 | 14.000 (in) | 16.000 (in) | 1.000 (in) | 10.8 | 14.554 (in) | 15.602 (in) |
| 51 |
|
QJG160CP0 | 16.000 (in) | 18.000 (in) | 1.000 (in) | 12.3 | 16.554 (in) | 17.602 (in) |
| 52 |
|
QJG180CP0 | 18.000 (in) | 20.000 (in) | 1.000 (in) | 13.7 | 18.554 (in) | 19.602 (in) |
| 53 |
|
QJG200CP0 | 20.000 (in) | 22.000 (in) | 1.000 (in) | 15.8 | 20.554 (in) | 21.602 (in) |
| 54 |
|
QJG220CP0 | 22.000 (in) | 24.000 (in) | 1.000 (in) | 16.8 | 22.554 (in) | 23.602 (in) |
| 55 |
|
QJG250CP0 | 25.000 (in) | 27.000 (in) | 1.000 (in) | 19.5 | 25.554 (in) | 26.602 (in) |
| 56 |
|
QJG300CP0 | 30.000 (in) | 32.000 (in) | 1.000 (in) | 23.3 | 30.554 (in) | 31.602 (in) |
| 57 |
|
QJG350CP0 | 35.000 (in) | 37.000 (in) | 1.000 (in) | 27.1 | 35.554 (in) | 36.602 (in) |
| 58 |
|
QJG400CP0 | 40.000 (in) | 42.000 (in) | 1.000 (in) | 30.8 | 40.554 (in) | 41.602 (in) |
