Metric Thin-Section Ball Bearing Series – Sealed Type X
The Metric Thin-Section Ball Bearing Series - Sealed Type X features precision-engineered bearings with minimized cross-sectional dimensions, optimized for space-constrained applications, while providing enhanced protection against contamination and debris ingress through its sealed design.
QIBR
Model Selection

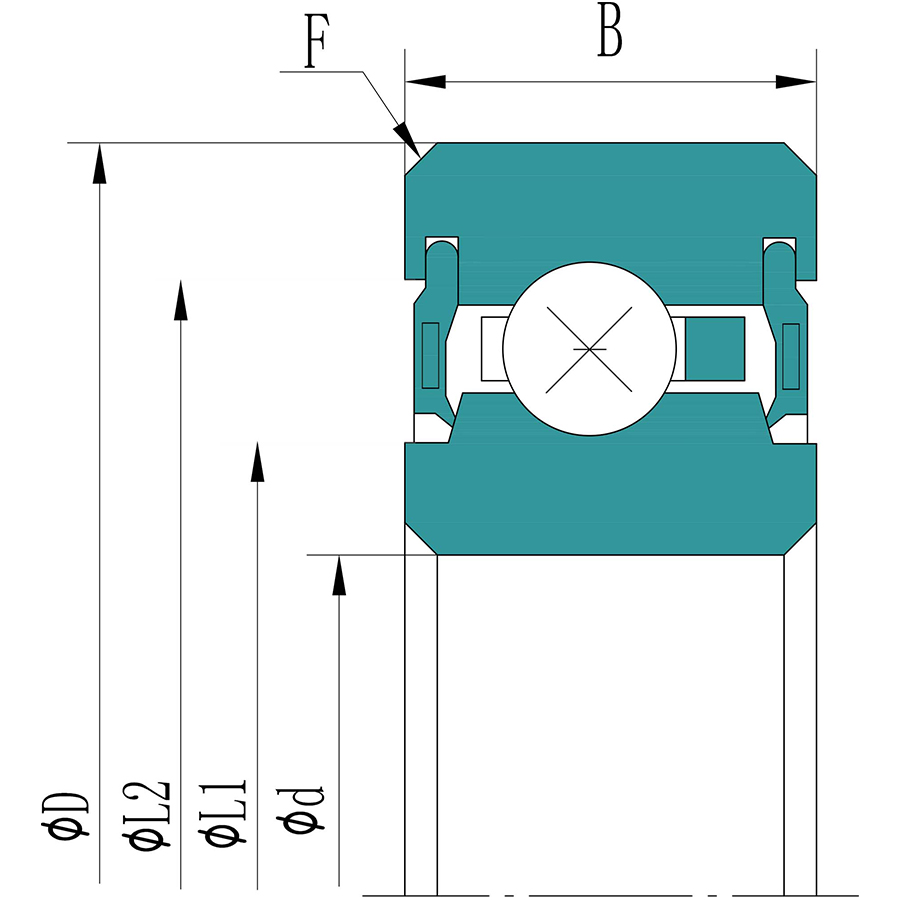

| NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Width(B) | Land Diameters (L1) | Land Diameters(L2) | Mass(kg) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
QJ02508XP0 | 41mm | 25mm | 8mm | 31.55mm | 34.42mm | 0.06 |
| 2 |
|
QJ05008XP0 | 66mm | 50mm | 8mm | 56.55mm | 59.42mm | 0.08 |
| 3 |
|
QJ06008XP0 | 76mm | 60mm | 8mm | 66.55mm | 69.42mm | 0.09 |
| 4 |
|
QJ07008XP0 | 86mm | 70mm | 8mm | 76.55mm | 79.42mm | 0.10 |
| 5 |
|
QJ08008XP0 | 96mm | 80mm | 8mm | 86.55mm | 89.42mm | 0.11 |
| 6 |
|
QJ09008XP0 | 106mm | 90mm | 8mm | 96.55mm | 99.42mm | 0.13 |
| 7 |
|
QJ10008XP0 | 116mm | 100mm | 8mm | 106.55mm | 109.42mm | 0.14 |
| 8 |
|
QJ11008XP0 | 126mm | 110mm | 8mm | 116.55mm | 119.42mm | 0.15 |
| 9 |
|
QJ12008XP0 | 136mm | 120mm | 8mm | 126.55mm | 129.42mm | 0.16 |
| 10 |
|
QJ13008XP0 | 146mm | 130mm | 8mm | 136.55mm | 139.42mm | 0.18 |
| 11 |
|
QJ14008XP0 | 156mm | 140mm | 8mm | 146.55mm | 149.42mm | 0.19 |
| 12 |
|
QJ15008XP0 | 166mm | 150mm | 8mm | 156.55mm | 159.42mm | 0.20 |
| 13 |
|
QJ16008XP0 | 176mm | 160mm | 8mm | 166.55mm | 169.42mm | 0.20 |
| 14 |
|
QJ17008XP0 | 186mm | 170mm | 8mm | 176.55mm | 179.42mm | 0.20 |
