Metric Thin-Section Ball Bearing Series – Open Type C

Thin-section ring bearings have high accuracy, very quiet and strong load-carrying capacity. In order to get the low friction torque, high rigidity and good rotation precision of the bearing, the steel ball with small outside diameter is used. The use of hollow shafts ensures lightweight and wiring space. The Thin-section bearing realizes the extremely thin bearing section, also has realized the product miniaturization, the lightweight. The diversity of products extends its range of uses. Thin-section 6700,6800 series have a variety of dust cover form, with flange form, stainless steel form, wide form, etc. , variety is complete.

Standard:

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material:

GCr15/100Cr6/Bearing Steel

Brand:

QIBR/OEM/Neutral

Application:

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR

Model Selection

Filters

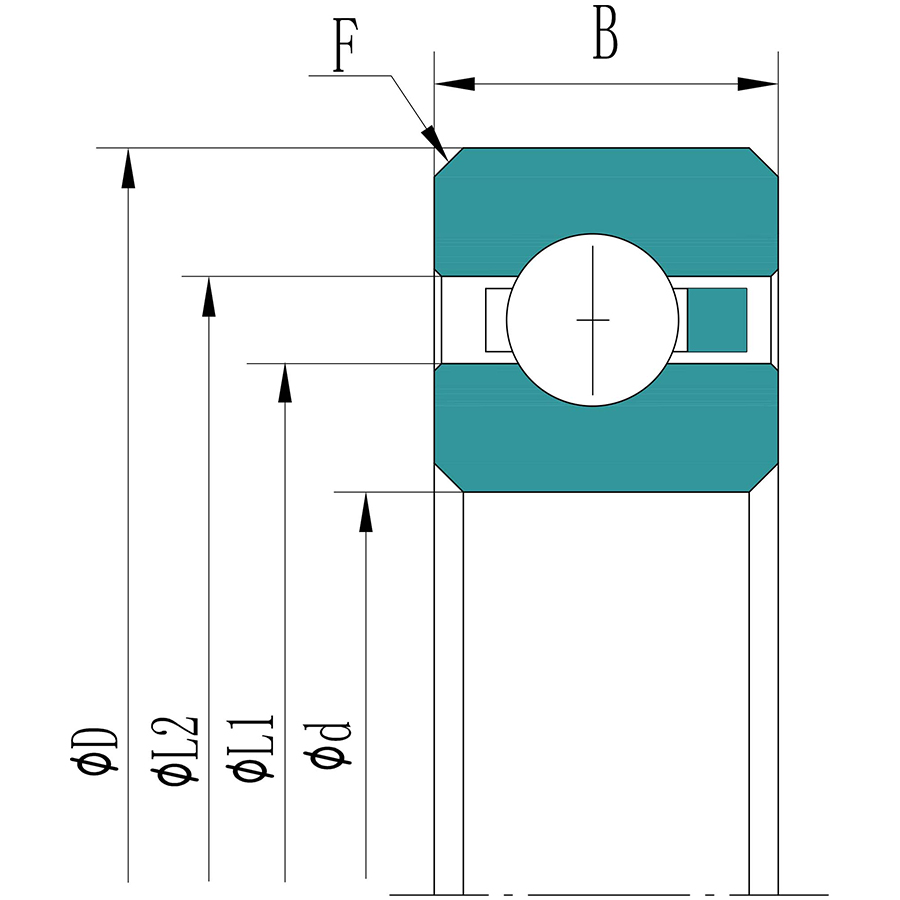

NO. Product Product Number Outer Diameter (D) Inner Diameter (d) Width(B) Land Diameters (L1) Land Diameters(L2) Mass(kg)
1 QK02508CP0/ QK02508CP0 41mm 25mm 8mm 30.9mm 35.1mm 0.06
2 QK05008CP0/ QK05008CP0 66mm 50mm 8mm 55.9mm 60.1mm 0.08
3 QK06008CP0/ QK06008CP0 76mm 60mm 8mm 65.9mm 70.1mm 0.09
4 QK07008CP0/ QK07008CP0 86mm 70mm 8mm 75.9mm 80.1mm 0.10
5 QK08008CP0/ QK08008CP0 96mm 80mm 8mm 85.9mm 90.1mm 0.11
6 QK09008CP0/ QK09008CP0 106mm 90mm 8mm 95.9mm 100.1mm 0.13
7 QK10008CP0/ QK10008CP0 116mm 100mm 8mm 105.9mm 110.1mm 0.14
8 QK11008CP0/ QK11008CP0 126mm 110mm 8mm 115.9mm 120.1mm 0.15
9 QK12008CP0/ QK12008CP0 136mm 120mm 8mm 125.9mm 130.1mm 0.16
10 QK13008CP0/ QK13008CP0 146mm 130mm 8mm 135.9mm 140.1mm 0.17
11 QK14008CP0/ QK14008CP0 156mm 140mm 8mm 145.9mm 150.1mm 0.18
12 QK15008CP0/ QK15008CP0 166mm 150mm 8mm 155.9mm 160.1mm 0.20
13 QK16008CP0/ QK16008CP0 176mm 160mm 8mm 165.9mm 170.1mm 0.20
14 QK17008CP0/ QK17008CP0 186mm 170mm 8mm 175.9mm 180.1mm 0.20
15 QK18008CP0/ QK18008CP0 196mm 180mm 8mm 185.9mm 190.1mm 0.21
16 QK19008CP0/ QK19008CP0 206mm 190mm 8mm 195.9mm 200.1mm 0.21
17 QK20008CP0/ QK20008CP0 216mm 200mm 8mm 205.9mm 210.1mm 0.22
18 QK25008CP0/ QK25008CP0 266mm 250mm 8mm 255.9mm 260.1mm 0.28
19 QK30008CP0/ QK30008CP0 316mm 300mm 8mm 305.9mm 310.1mm 0.35
20 QK32008CP0/ QK32008CP0 336mm 320mm 8mm 325.9mm 330.1mm 0.39
21 QK34008CP0/ QK34008CP0 356mm 340mm 8mm 345.9mm 350.1mm 0.42
22 QK36008CP0/ QK36008CP0 376mm 360mm 8mm 365.9mm 370.1mm 0.46
23 QK02513CP0/ QK02513CP0 51mm 25mm 13mm 34.7mm 41.3mm 0.11
24 QK05013CP0/ QK05013CP0 76mm 50mm 13mm 59.7mm 66.3mm 0.18
25 QK06013CP0/ QK06013CP0 86mm 60mm 13mm 69.7mm 76.3mm 0.21
26 QK07013CP0/ QK07013CP0 96mm 70mm 13mm 79.7mm 86.3mm 0.24
27 QK08013CP0/ QK08013CP0 106mm 80mm 13mm 89.7mm 96.3mm 0.26
28 QK09013CP0/ QK09013CP0 116mm 90mm 13mm 99.7mm 106.3mm 0.29
29 QK10013CP0/ QK10013CP0 126mm 100mm 13mm 109.7mm 116.3mm 0.32
30 QK11013CP0/ QK11013CP0 136mm 110mm 13mm 119.7mm 126.3mm 0.35
31 QK12013CP0/ QK12013CP0 146mm 120mm 13mm 129.7mm 136.3mm 0.38
32 QK13013CP0/ QK13013CP0 156mm 130mm 13mm 139.7mm 146.3mm 0.41
33 QK14013CP0/ QK14013CP0 166mm 140mm 13mm 149.7mm 156.3mm 0.44
34 QK15013CP0/ QK15013CP0 176mm 150mm 13mm 159.7mm 166.3mm 0.46
35 QK16013CP0/ QK16013CP0 186mm 160mm 13mm 169.7mm 176.3mm 0.49
36 QK17013CP0/ QK17013CP0 196mm 170mm 13mm 179.7mm 186.3mm 0.52
37 QK18013CP0/ QK18013CP0 206mm 180mm 13mm 189.7mm 196.3mm 0.55
38 QK19013CP0/ QK19013CP0 216mm 190mm 13mm 199.7mm 206.3mm 0.58
39 QK20013CP0/ QK20013CP0 226mm 200mm 13mm 209.7mm 216.3mm 0.61
40 QK25013CP0/ QK25013CP0 276mm 250mm 13mm 259.7mm 266.3mm 0.75
41 QK30013CP0/ QK30013CP0 326mm 300mm 13mm 309.7mm 316.3mm 0.89
42 QK32013CP0/ QK32013CP0 346mm 320mm 13mm 329.7mm 336.3mm 0.95
43 QK34013CP0/ QK34013CP0 366mm 340mm 13mm 349.7mm 356.3mm 1.01
44 QK36013CP0/ QK36013CP0 386mm 360mm 13mm 369.7mm 376.3mm 1.06
45 QK02520CP0/ QK02520CP0 65mm 25mm 20mm 40.0mm 50.0mm 0.34
46 QK05020CP0/ QK05020CP0 90mm 50mm 20mm 65.0mm 75.0mm 0.51
47 QK06020CP0/ QK06020CP0 100mm 60mm 20mm 75.0mm 85.0mm 0.58
48 QK07020CP0/ QK07020CP0 110mm 70mm 20mm 85.0mm 95.0mm 0.65
49 QK08020CP0/ QK08020CP0 120mm 80mm 20mm 95.0mm 105.0mm 0.72
50 QK09020CP0/ QK09020CP0 130mm 90mm 20mm 105.0mm 115.0mm 0.80
51 QK10020CP0/ QK10020CP0 140mm 100mm 20mm 115.0mm 125.0mm 0.86
52 QK11020CP0/ QK11020CP0 150mm 110mm 20mm 125.0mm 135.0mm 0.94
53 QK12020CP0/ QK12020CP0 160mm 120mm 20mm 135.0mm 145.0mm 1.01
54 QK13020CP0/ QK13020CP0 170mm 130mm 20mm 145.0mm 155.0mm 1.08
55 QK14020CP0/ QK14020CP0 180mm 140mm 20mm 155.0mm 165.0mm 1.15
56 QK15020CP0/ QK15020CP0 190mm 150mm 20mm 165.0mm 175.0mm 1.20
57 QK16020CP0/ QK16020CP0 200mm 160mm 20mm 175.0mm 185.0mm 1.30
58 QK17020CP0/ QK17020CP0 210mm 170mm 20mm 185.0mm 195.0mm 1.40
59 QK18020CP0/ QK18020CP0 220mm 180mm 20mm 195.0mm 205.0mm 1.50
60 QK19020CP0/ QK19020CP0 230mm 190mm 20mm 205.0mm 215.0mm 1.50
61 QK20020CP0/ QK20020CP0 240mm 200mm 20mm 215.0mm 225.0mm 1.60
62 QK25020CP0/ QK25020CP0 290mm 250mm 20mm 265.0mm 275.0mm 2.10
63 QK30020CP0/ QK30020CP0 340mm 300mm 20mm 315.0mm 325.0mm 2.30
64 QK32020CP0/ QK32020CP0 360mm 320mm 20mm 335.0mm 345.0mm 2.42
65 QK34020CP0/ QK34020CP0 380mm 340mm 20mm 355.0mm 365.0mm 2.54
66 QK36020CP0/ QK36020CP0 400mm 360mm 20mm 375.0mm 385.0mm 2.70
