I.22.A-T

Изображения могут отличаться от продукта. Подробнее см. технические характеристики.

Стандарт

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Допустимые обороты

120mm-8000mm

Наружный диаметр

280mm-8000mm

Вес

20kg-8000kg

Structures

Outer Ring, Inner Ring, Spacer, Rolling element, Seal

Бренд

QIBR/OEM/Neutral

Упаковка

Standard Export Package

Материал

42CrMo, 50Mn, or Stainless Steel

Применения

Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

I.22.A-T

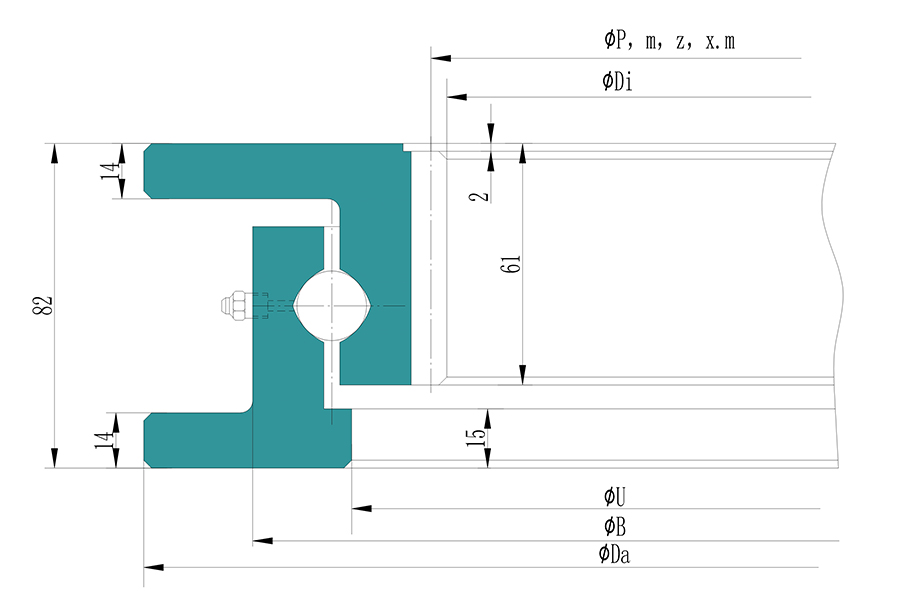

NO. Product Product Number Тип шестерни Внутренний диаметр (Di) Внутренний диаметр наружного кольца (U) Наружный Диаметр (Da) Вес

Features and advantages of QIBR four-point contact ball slewing bearings I.22.A-T series

QIBR four-point contact ball slewing bearings I.22.A-T series has several significant features and advantages, which play a crucial role in various fields, mainly in the following aspects:

1. QIBR four-point contact ball slewing ring bearings series I.22.A-T have high-efficiency transmission capacity

QIBR four-point contact ball slewing bearings I.22.A-T series have an internal tooth design that allows direct connection to a gear drive system for efficient power transmission. This reduces the need for additional drive components, such as chains or belts, minimizing mechanical wear and maintenance requirements.

2. QIBR four-point contact ball slewing bearings I.22.A-T series to reduce the overall weight of the equipment

The lightweight design of the QIBR four-point contact ball slewing bearings I.22.A-T series helps trim the weight of the whole equipment so that it is easy to move and install. The lighter bearing minimizes the drive system's load, reducing energy consumption and improving the system's efficiency, especially in high-speed operation or frequent start-up applications.

3. Customization service of QIBR four-point contact ball slewing ring bearings I.22.A-T series

QIBR four-point contact ball slewing ring bearings I.22.A-T series can provide customized service and design the bearings according to special needs and cater to the unique requirements of different industries and working conditions.

Performance enhancements and solutions of QIBR four-point contact ball slewing bearings I.22.A-T series

1. Improvement of bearing material properties

QIBR four-point contact ball slewing bearings I.22.A-T series choose stainless steel and other materials to enhance the bearings' corrosion resistance and service life.

2. Improvement of bearing wear resistance

The raceway surface of the QIBR four-point contact ball slewing bearing I.2.20.A-T series is treated with induction hardening, which improves the raceway's hardness, enhances the organizational structure, and makes the bearings more wear-resistant, thus improving their rotational accuracy and stability.

3. Reduce bearing maintenance and replacement requirements

QIBR four-point contact ball slewing bearings I.2.20.A-T series can have seals and lubrication holes; the seals can prevent contaminants from entering the bearing interior and reduce grease leakage; the lubrication holes are convenient for grease filling, the service life is extended, and the cost of maintenance and replacement is reduced.

4. Customized design

For different occasions, the QIBR four-point contact ball and slewing bearings I.22.A-T series can provide personalized-size solutions to meet specialized applications. This enriches the bearings standard and offers practical guidance for manufacturers to meet users’ needs.

Optimizing materials, individual design, and other measures can significantly improve the performance of the QIBR four-point contact ball slewing ring bearings I.22.A-T series to meet increasingly demanding applications.

Main application fields of QIBR four-point contact ball slewing bearings I.22.A-T series

Trailer equipment

QIBR four-point contact ball slewing bearings I.22.A-T series are widely used in the flatbed trailer industry. Their design allows them to bear high axial loads and have good steering flexibility.

Planting machine

The thin-section slewing bearing of QIBR four-point contact ball slewing bearings I.22.A-T series is used in the rotating parts of planters to ensure the coordinated operation of the components during the planting process, thus improving the precision of planting.

Portable irrigation equipment

The QIBR four-point contact ball slewing bearings I.22.A-T series suit movable irrigation systems. Thin-section slewing bearings facilitate the rotation and positioning of irrigation pipes, thereby enhancing the efficiency of the irrigation process.

Rotating platform

QIBR four-point contact ball slewing bearings I.22.A-T series provide the necessary support and rotational function in specific agricultural machinery, such as the rotating platforms of tractors or combine harvesters.
