Изображения могут отличаться от продукта. Подробнее см. технические характеристики.
Стандарт
GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh
Внутренний диаметр
120mm-8000mm
Наружный диаметр
280mm-8000mm
Вес
20kg-8000kg
Structures
Outer Ring, Inner Ring, Spacer, Rolling element, Seal
Бренд
QIBR/OEM/Neutral
Упаковка
Standard Export Package
Материал
42CrMo, 50Mn, or Stainless Steel
Применения
Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

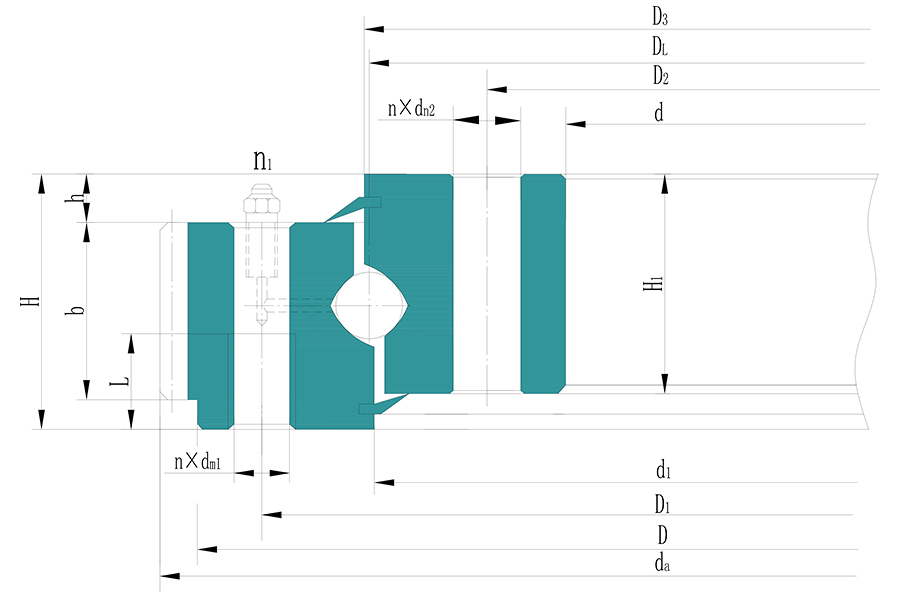

NO. | Product | Product Number | Внутренний диаметр (d) | Наружный диаметр (D) | Общая высота (H) | Глубина (L) | Диаметр наконечника (da) | Тип шестерни |
---|---|---|---|---|---|---|---|---|
1 |
![]() |
011.20.200 | 120 mm | 280 mm | 60 mm | 28 mm | 300 mm | External Gear |
2 |
![]() |
011.20.224 | 144 mm | 304 mm | 60 mm | 28 mm | 321 mm | External Gear |
3 |
![]() |
011.20.250 | 170 mm | 330 mm | 60 mm | 28 mm | 352 mm | External Gear |
4 |
![]() |
011.20.280 | 200 mm | 360 mm | 60 mm | 28 mm | 348 mm | External Gear |
5 |
![]() |
011.25.315 | 222 mm | 408 mm | 70 mm | 32 mm | 435 mm | External Gear |
6 |
![]() |
011.25.355 | 262 mm | 448 mm | 70 mm | 32 mm | 475 mm | External Gear |
7 |
![]() |
011.25.400 | 307 mm | 493 mm | 70 mm | 32 mm | 528 mm | External Gear |
8 |
![]() |
011.25.450 | 357 mm | 543 mm | 70 mm | 32 mm | 576 mm | External Gear |
9 |
![]() |
011.30.500 | 398 mm | 602 mm | 80 mm | 32 mm | 629 mm | External Gear |
10 |
![]() |
011.25.500 | 398 mm | 602 mm | 80 mm | 32 mm | 629 mm | External Gear |
11 |
![]() |
011.30.560 | 458 mm | 662 mm | 80 mm | 32 mm | 689 mm | External Gear |
12 |
![]() |
011.25.560 | 458 mm | 662 mm | 80 mm | 32 mm | 689 mm | External Gear |
13 |
![]() |
011.30.630 | 528 mm | 732 mm | 80 mm | 32 mm | 772.8 mm | External Gear |
14 |
![]() |
011.25.630 | 528 mm | 732 mm | 80 mm | 32 mm | 772.8 mm | External Gear |
15 |
![]() |
011.30.710 | 608 mm | 812 mm | 80 mm | 32 mm | 850.8 mm | External Gear |
16 |
![]() |
011.25.710 | 608 mm | 812 mm | 80 mm | 32 mm | External Gear | |
17 |
![]() |
011.30.800 | 678 mm | 922 mm | 100 mm | 40 mm | External Gear | |
17 |
![]() |
011.40.800 | 678 mm | 922 mm | 100 mm | 40 mm | N/A | External Gear |
18 |
![]() |
011.40.900 | 778 mm | 1022 mm | 100 mm | 40 mm | 1062.4 mm | External Gear |
19 |
![]() |
011.30.900 | 778 mm | 1022 mm | 100 mm | 40 mm | 1062. 4mm | External Gear |
20 |
![]() |
011.40.1000 | 878 mm | 1122 mm | 100 mm | 40 mm | 1188 mm | External Gear |
21 |
![]() |
011.30.1000 | 878 mm | 1122 mm | 100 mm | 40 mm | 1188 mm | External Gear |
22 |
![]() |
011.40.1120 | 998 mm | 1242 mm | 100 mm | 40 mm | 1298 mm | External Gear |
23 |
![]() |
011.30.1120 | 998 mm | 1242 mm | 100 mm | 40 mm | 1298 mm | External Gear |
24 |
![]() |
011.45.1250 | 1110 mm | 1390 mm | 110 mm | 48 mm | 1449.6 mm | External Gear |
25 |
![]() |
011.35.1250 | 1110 mm | 1390 mm | 110 mm | 48 mm | 1449.6 mm | External Gear |
26 |
![]() |
011.45.1400 | 1260 mm | 1540 mm | 110 mm | 48 mm | 1605.6 mm | External Gear |
27 |
![]() |
011.35.1400 | 1260 mm | 1540 mm | 110 mm | 48 mm | 1605.6 mm | External Gear |
28 |
![]() |
011.45.1600 | 1460 mm | 1740 mm | 110 mm | 48 mm | 1817.2 mm | External Gear |
29 |
![]() |
011.35.1600 | 1460 mm | 1740mm | 110 mm | 48 mm | 1817.2 mm | External Gear |
30 |
![]() |
011.45.1800 | 1660 mm | 1940 mm | 110 mm | 48 mm | 2013.2 mm | External Gear |
31 |
![]() |
011.35.1800 | 1660 mm | 1940 mm | 110 mm | 48 mm | 2013.2 mm | External Gear |
32 |
![]() |
011.60.2000 | 1825 mm | 2178mm | 144 mm | 60 mm | 2268.8 mm | External Gear |
33 |
![]() |
011.40.2000 | 1825 mm | 2178mm | 145 mm | 60 mm | 2268.8 mm | External Gear |
34 |
![]() |
011.60.2240 | 2065 mm | 2418 mm | 144 mm | 60 mm | 2492.8 mm | External Gear |
35 |
![]() |
011.40.2240 | 2065 mm | 2418 mm | 144 mm | 60 mm | 2492.8 mm | External Gear |
36 |
![]() |
011.60.2500 | 2325 mm | 2678 mm | 144 mm | 60 mm | 2776 mm | External Gear |
37 |
![]() |
011.40.2500 | 2325 mm | 2678 mm | 144 mm | 60 mm | 2768.4 mm | External Gear |
38 |
![]() |
011.60.2800 | 2635 mm | 2978 mm | 144 mm | 60 mm | 3074.4 mm | External Gear |
39 |
![]() |
011.40.2800 | 2635 mm | 2978 mm | 144 mm | 60 mm | 3074.4 mm | External Gear |
40 |
![]() |
011.75.3150 | 2922 mm | 3376 mm | 174 mm | 84 mm | 3476 mm | External Gear |
41 |
![]() |
011.50.3150 | 2922 mm | 3376 mm | 174 mm | 84 mm | 3476 mm | External Gear |
42 |
![]() |
011.75.3550 | 3322 mm | 3776 mm | 174 mm | 84 mm | 3876 mm | External Gear |
43 |
![]() |
011.50.3550 | 3322 mm | 3776 mm | 174 mm | 84 mm | 3876 mm | External Gear |
44 |
![]() |
011.75.4000 | 3772 mm | 4226 mm | 174 mm | 84 mm | 4329.6 mm | External Gear |
45 |
![]() |
011.50.4000 | 3772 mm | 4226 mm | 174 mm | 84 mm | 4329.6 mm | External Gear |
46 |
![]() |
011.75.4500 | 4272 mm | 4726 mm | 174 mm | 84 mm | 4835.6 mm | External Gear |
47 |
![]() |
011.50.4500 | 4272 mm | 4726 mm | 174 mm | 84 mm | 4835.6 mm | External Gear |
Features and advantages of QIBR four-point contact ball slewing bearing 011 series
QIBR four-point contact ball slewing bearing 010 series has many significant features and advantages, playing a key role in various fields, mainly reflected in the following aspects: QIBR four-point contact ball slewing bearing 011 series has many significant features and advantages, playing a key role in various fields, mainly reflected in the following aspects:
1. QIBR four-point contact ball slewing bearing 011 series has efficient transmission capability
The design of external teeth for QIBR four-point contact ball slewing bearing 011 series allows direct connection with gear drive systems, resulting in efficient power transmission. This eliminates additional transmission components such as chains or belts, reducing mechanical wear and maintenance requirements.
2. QIBR four-point contact ball slewing bearing 011 series has good stability and long life
QIBR four-point contact ball slewing bearing 011 series has high working stability due to uniform load distribution, reduces system vibration and noise, and improves the smoothness and reliability of operation. Optimized contact angle and load distribution reduce internal bearing wear, thereby extending bearing life.
3. The customized services of QIBR four-point contact ball slewing bearing 011 series
QIBR four-point contact ball slewing bearing 011 series can provide customized services and can design bearings according to specific needs to meet the special requirements and operating conditions of different industries.
The performance improvement and solutions of QIBR four-point contact ball slewing bearing 011 series
1. Improve material performance of the bearing
QIBR four-point contact ball slewing bearing 011 series can use high-temperature sealing strips and other materials to improve the bearing capacity and service life.
2. Improve rotation accuracy of the bearing
The production of QIBR four-point contact ball slewing bearing 011 series adopts advanced processing equipment and processes, such as machining centers and precision heat treatment, to improve the geometric accuracy of the inner and outer rings, reduce machining errors, and thus improve rotation accuracy and stability of the bearing.
3. Reduce the need for bearing maintenance and replacement
QIBR four-point contact ball slewing bearing 011 series is designed with seals and lubricating oil holes. The seals can prevent contaminants from entering the bearing and reduce grease leakage; the lubricating holes are convenient for grease filling, the service life is extended, and the cost of maintenance and replacement is reduced.
4. Personalized design
For different occasions, QIBR four-point contact ball slewing bearing 011 series can provide personalized size solutions to meet special applications. This not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.
In short, by optimizing materials, manufacturing precision, personalized design and other measures, the performance of QIBR four-point contact ball slewing bearing 011 series can be significantly improved to meet increasingly demanding application requirements.
Main application areas of QIBR four-point contact ball slewing bearing 011 series
Lifting equipment
QIBR four-point contact ball slewing bearing 011 series can simultaneously withstand large radial loads and axial loads as well as overturning moments, and is used in the rotating part of the crane to help achieve smooth lifting and rotation operations.
Wind power generation
QIBR four-point contact ball slewing bearing 011 series is used for the slewing connection between the tower and the nacelle of the wind turbine, helping to achieve smooth rotation of the nacelle to align with the wind direction.
Amusement facilities
QIBR four-point contact ball slewing bearing 011 series is used on carousels to ensure its safety and stable operation.
Radar system
QIBR four-point contact ball slewing bearing 011 series is used in the rotating part of the radar antenna to ensure accurate monitoring and tracking.
