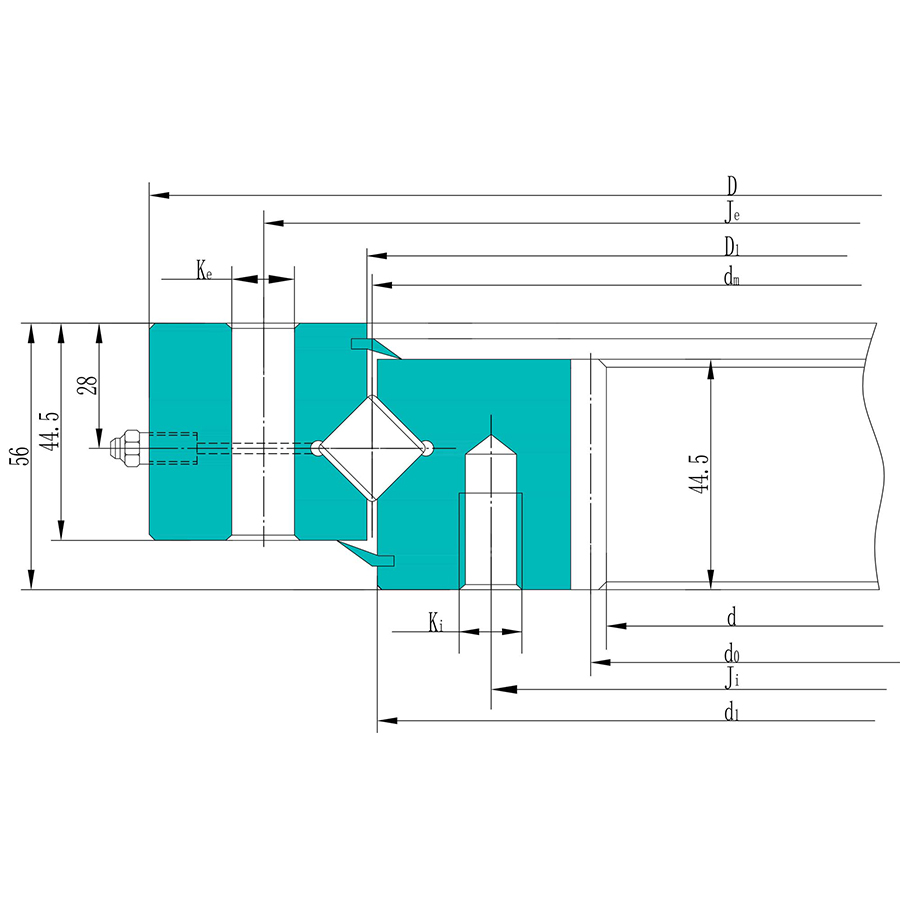

RKS.162
The crossed roller slewing bearing features threaded mounting holes in both the inner and outer rings. This design facilitates secure and straightforward installation onto machinery or structures using bolts, ensuring stable and precise alignment. The threaded holes in both rings enhance versatility in assembly and maintenance processes, allowing for easy adjustment and repositioning as needed. This configuration is particularly advantageous in applications requiring high rotational accuracy and stability, such as robotics, medical equipment, and precision machinery. It ensures reliable performance and longevity in diverse industrial settings where precision and durability are critical.
QIBR
Model Selection
NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Raceway diameter(dm) | Internal diameter on outer ring (D1) | Gear Type | Internal Diameter on Inner Ring (d1) |
---|---|---|---|---|---|---|---|---|
1 | RKS.162.14.0414 | 486mm | 326.5mm | 414mm | 416mm | Internal gear | 412mm | |
2 | RKS.162.14.0544 | 616mm | 445.2mm | 544mm | 546mm | Internal gear | 542mm | |
3 | RKS.162.14.0644 | 716mm | 547.2mm | 644mm | 646mm | Internal gear | 642mm | |
4 | RKS.162.14.0744 | 816mm | 649.2mm | 744mm | 746mm | Internal gear | 742mm | |
5 | RKS.162.14.0844 | 916mm | 737.6mm | 844mm | 846mm | Internal gear | 842mm | |
6 | RKS.162.14.0944 | 1016mm | 841.6mm | 944mm | 946mm | Internal gear | 942mm | |
7 | RKS.162.14.1094 | 1166mm | 985.6mm | 1094mm | 1096mm | Internal gear | 1092mm | |
8 | RKS.162.16.1204 | 1289mm | 1072mm | 1204mm | 1206mm | Internal gear | 1202mm | |
9 | RKS.162.16.1314 | 1399mm | 1182mm | 1314mm | 1316.5mm | Internal gear | 1312mm | |
10 | RKS.162.16.1424 | 1509mm | 1292mm | 1424mm | 1426.5mm | Internal gear | 1422mm | |
11 | RKS.162.16.1534 | 1619mm | 1402mm | 1534mm | 1536.5mm | Internal gear | 1532mm | |
12 | RKS.162.16.1644 | 1752mm | 1495mm | 1644mm | 1646.5mm | Internal gear | 1642mm | |
13 | RKS.162.16.1754 | 1862mm | 1605mm | 1754mm | 1756.5mm | Internal gear | 1751mm | |
14 | RKS.162.20.1904 | 2012mm | 1729mm | 1904mm | 1906.5mm | Internal gear | 1902mm |
