MDK& MBF
Suitable for various types of precision machinery, including CNC machines, where accurate movement and robust support are critical.
QIBR

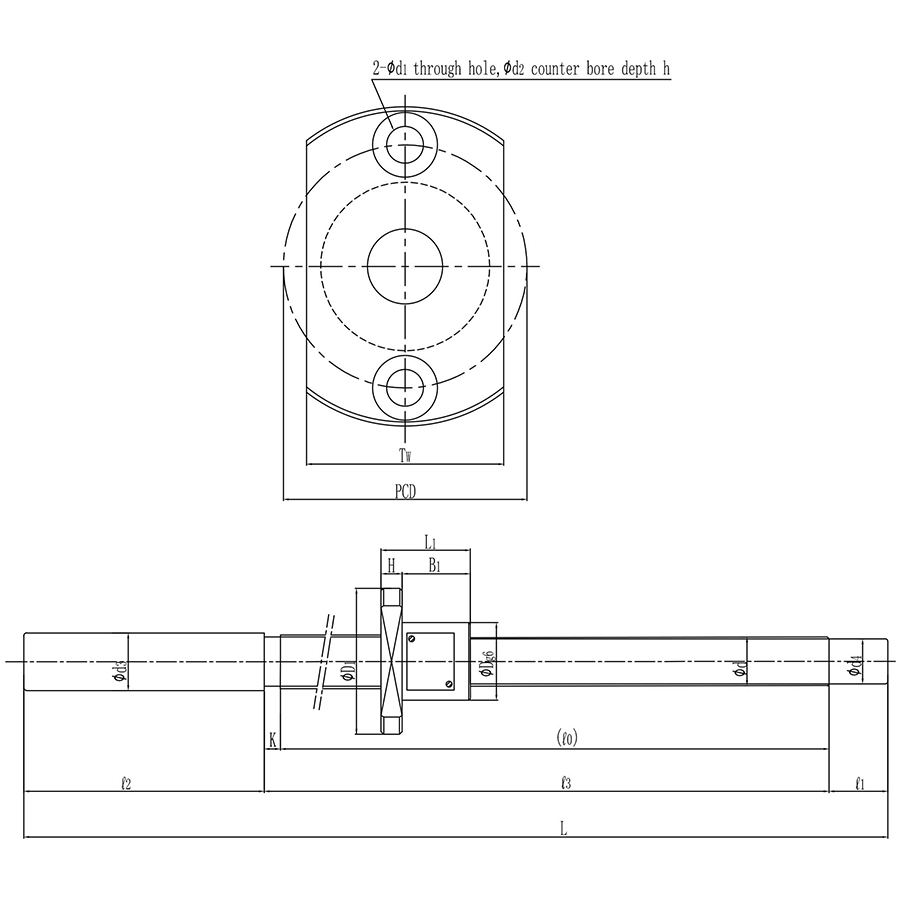

Model Selection
| NO. | Product | Product Number | Screw shaft outer diameter (d) | Lead (Ph) | Ball center- to-center diameter (dp) | Thread minor diameter (dc) | No. of loaded circuits Rows X turns |
|---|---|---|---|---|---|---|---|
| 1 |
|
MDK 0401-3 | 4mm | 1mm | 4.15mm | 3.4mm | 3*1 |
| 1 |
|
MBF 0401-3.7 | 4mm | 1mm | 4.15mm | 3.3mm | 1X3.7 |
| 2 |
|
MBF 0601-3.7 | 6mm | 1mm | 6.15mm | 5.3mm | 1X3.7 |
| 2 |
|
MDK 0601-3 | 6mm | 1mm | 6.2mm | 5.3mm | 3*1 |
| 3 |
|
MBF 0802-3.7 | 8mm | 2mm | 8.3mm | 6.6mm | 1X3.7 |
| 3 |
|
MDK 0801-3 | 8mm | 1mm | 8.2mm | 7.3mm | 3*1 |
| 4 |
|
MBF 1002-3.7 | 10mm | 2mm | 10.3mm | 8.6mm | 1X3.7 |
| 4 |
|
MDK 0802-3 | 8mm | 2mm | 8.3mm | 7mm | 3*1 |
| 5 |
|
MBF 1202-3.7 | 12mm | 2mm | 12.3mm | 10.6mm | 1X3.7 |
| 5 |
|
MDK 1002-3 | 10mm | 2mm | 10.3mm | 9mm | 3*1 |
| 6 |
|
MBF 1402-3.7 | 14mm | 2mm | 14.3mm | 12.6mm | 1X3.7 |
| 6 |
|
MDK 1202-3 | 12mm | 2mm | 12.3mm | 11mm | 3*1 |
| 7 |
|
MBF 1404-3.7 | 14mm | 4mm | 14.3mm | 11.8mm | 1X3.7 |
| 7 |
|
MDK 1402-3 | 14mm | 2mm | 143mm | 13mm | 3*1 |
| 8 |
|
MDK 1404-3 | 14mm | 4mm | 14.65mm | 12.2mm | 3*1 |
| 9 |
|
MDK 1405-3 | 14mm | 5mm | 14.75mm | 11.2mm | 3*1 |
