BNF

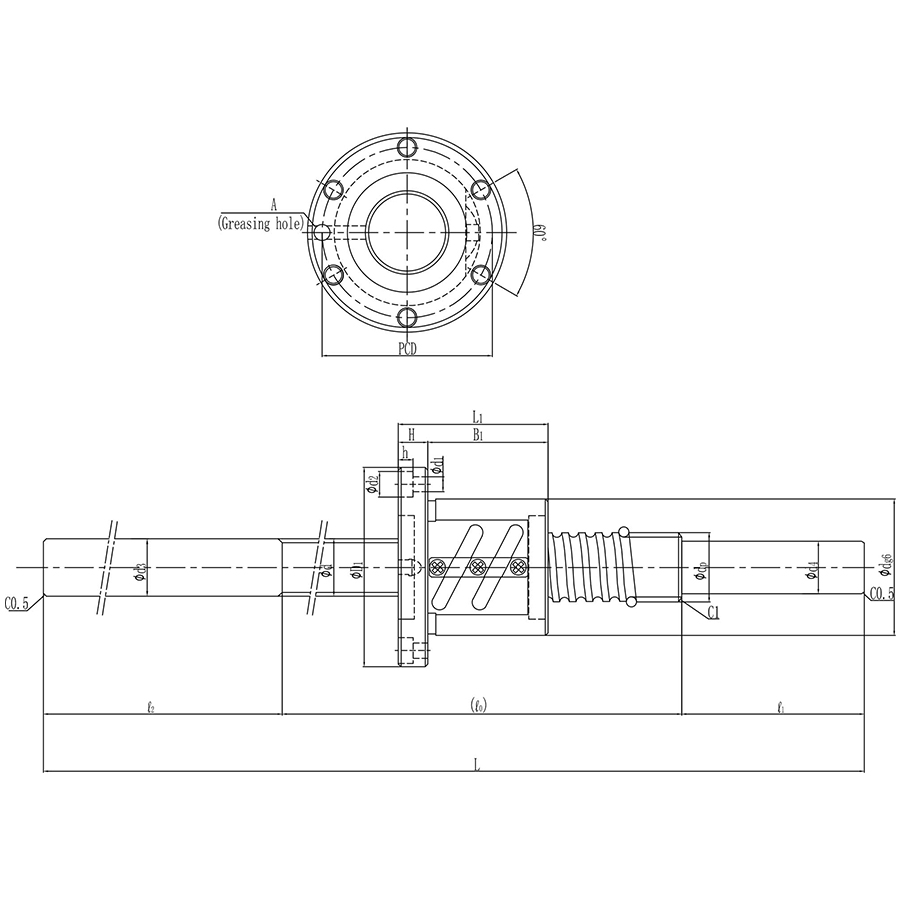

The BNF type of ball screw is mass-produced by cutting the standard ball screw shaft of a precision ball screw to normal length.
QIBR
Model Selection
| NO. | Product | Product Number | Lead (Ph) | Ball center- to-center diameter (dp) | Thread minor diameter (dc) | No. of loaded circuits Rows X turns | Screw shaft outer diameter (d) |
|---|---|---|---|---|---|---|---|
| 1 |
|
BNF 1605-2.5 | 5mm | 16.75mm | 13.2mm | 1X2.5 | 16mm |
| 2 |
|
BNF 1810-2.5 | 10mm | 18.8mm | 15.5mm | 1X2.5 | 18mm |
| 3 |
|
BNF 2005-5 | 5mm | 20.75mm | 17.2mm | 2X2.5 | 20mm |
| 4 |
|
BNF 2505-5 | 5mm | 25.75mm | 22.2mm | 2X2.5 | 25mm |
| 5 |
|
BNF 2510A-2.5 | 10mm | 26.3mm | 21.4mm | 1X2.5 | 25mm |
| 6 |
|
BNF 2806-5 | 6mm | 28.75mm | 25.2mm | 2X2.5 | 28mm |
| 7 |
|
BNF 3205-5 | 5mm | 32.75mm | 29.2mm | 2X2.5 | 32mm |
| 8 |
|
BNF 3206-5 | 6mm | 33mm | 28.4mm | 2X2.5 | 32mm |
| 9 |
|
BNF 3210A-5 | 10mm | 33mm | 26.4mm | 2X2.5 | 32mm |
| 10 |
|
BNF 3610-5 | 10mm | 37.75mm | 30.5mm | 2X2.5 | 36mm |
| 11 |
|
BNF 4010-5 | 10mm | 41.75mm | 34.4mm | 2X2.5 | 40mm |
| 12 |
|
BNF 4012-5 | 12mm | 42mm | 34.1mm | 2X2.5 | 40mm |
| 13 |
|
BNF 5010-5 | 10mm | 51.75mm | 44.4mm | 2X2.5 | 50mm |
