BIF
BIF ball screw have center ball screw nut assigns a phase to the screws to the left and right sides.
QIBR

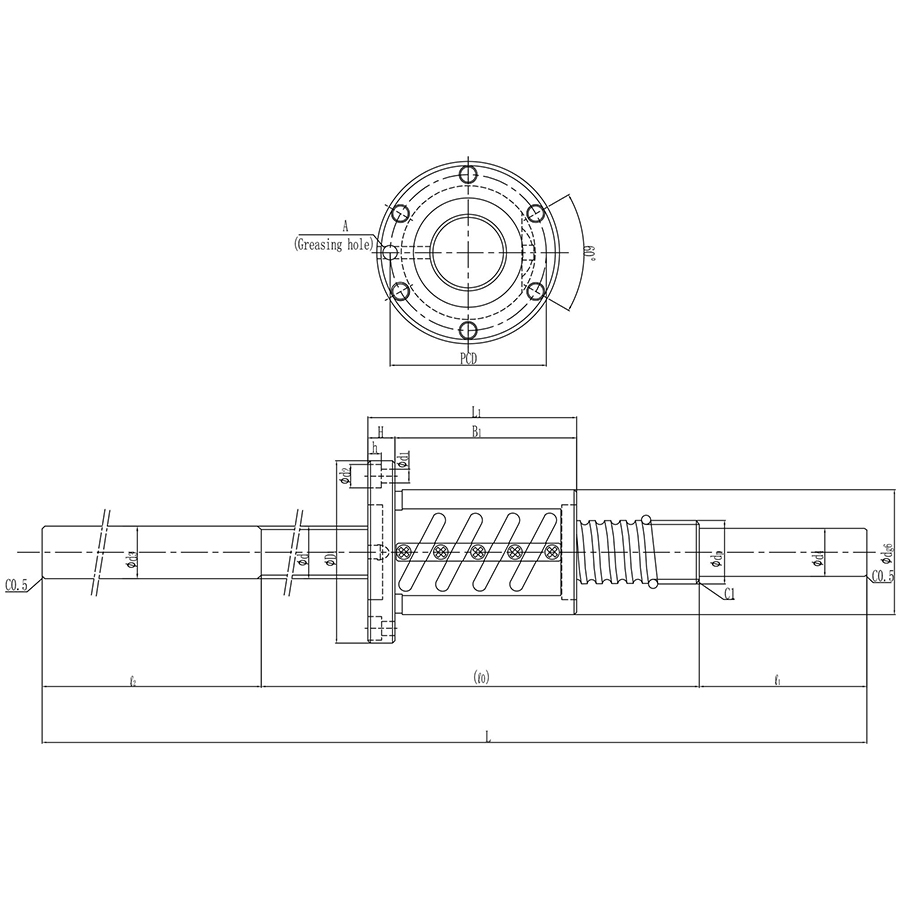

Model Selection
| NO. | Product | Product Number | Screw shaft outer diameter (d) | Lead (Ph) | Ball center- to-center diameter (dp) | Thread minor diameter (dc) | No. of loaded circuits Rows X turns |
|---|---|---|---|---|---|---|---|
| 1 |
|
BIF 1605-5 | 16mm | 5mm | 16.75mm | 13.2mm | 1X2.5 |
| 2 |
|
BIF 1810-3 | 18mm | 10mm | 18.8mm | 15.5mm | 1X1.5 |
| 3 |
|
BIF 2005-5 | 20mm | 5mm | 20.75mm | 17.2mm | 1X2.5 |
| 4 |
|
BIF 2505-5 | 25mm | 5mm | 25.75mm | 22.2mm | 1X2.5 |
| 5 |
|
BIF2510A-5 | 25mm | 10mm | 26.3mm | 21.4mm | 1X2.5 |
| 6 |
|
BIF 2806-5 | 28mm | 6mm | 28.75mm | 25.2mm | 1X2.5 |
| 7 |
|
BIF 2806-10 | 28mm | 6mm | 28.75mm | 25.2mm | 2X2.5 |
| 8 |
|
BIF 3205-5 | 32mm | 5mm | 32.75mm | 29.2mm | 1X2.5 |
| 9 |
|
BIF 3205-10 | 32mm | 5mm | 32.75mm | 29.2mm | 2X2.5 |
| 10 |
|
BIF 3206-5 | 32mm | 6mm | 33mm | 28.4mm | 1X2.5 |
| 11 |
|
BIF3206-10 | 32mm | 6mm | 33mm | 28.4mm | 2X2.5 |
| 12 |
|
BIF3210A-5 | 32mm | 10mm | 33.75mm | 26.4mm | 1X2.5 |
| 13 |
|
BIF 3610-5 | 36mm | 6mm | 37.75mm | 30.5mm | 1X2.5 |
| 14 |
|
BIF 3610-10 | 36mm | 6mm | 37.75mm | 30.5mm | 2X2.5 |
| 15 |
|
BIF 4010-5 | 40mm | 10mm | 41.75mm | 34.4mm | 1X2.5 |
| 16 |
|
BIF 4010-10 | 40mm | 10mm | 41.75mm | 34.4mm | 2X2.5 |
| 17 |
|
BIF 4012-5 | 40mm | 12mm | 42mm | 34.1mm | 1X2.5 |
| 18 |
|
BIF 4012-10 | 40mm | 12mm | 42mm | 34.1mm | 2X2.5 |
| 19 |
|
BIF 5010-5 | 50mm | 10mm | 51.75mm | 44.4mm | 1X2.5 |
| 20 |
|
BIF 5010-10 | 50mm | 10mm | 51.75mm | 44.4mm | 2X2.5 |
