SDA
SDA ball screw can cope with high-speed applications of 5,000 min -1 (maximum DN value: 130,000), achieving low noise, comfortable operating sound and long-term maintenance-free operation.
QIBR

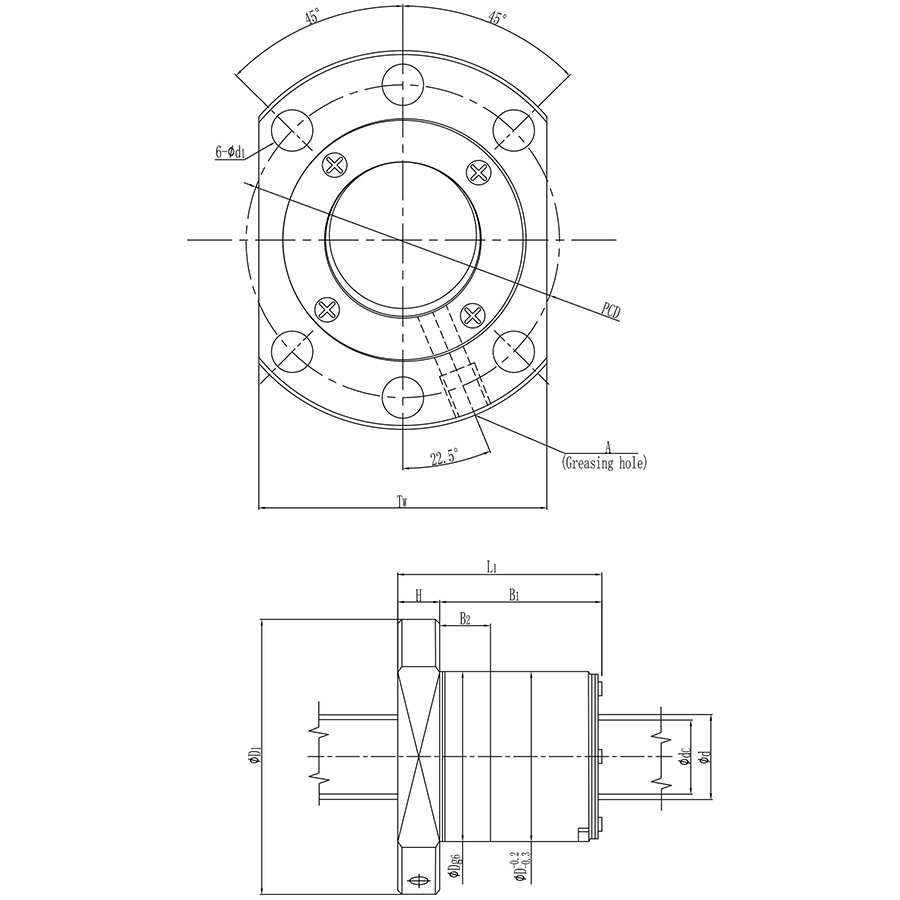

Model Selection
| NO. | Product | Product Number | Screw shaft outer diameter (d) | Lead (Ph) | Ball center- to-center diameter (dp) | Thread minor diameter (dc) | No. of loaded circuits Rows X turns |
|---|---|---|---|---|---|---|---|
| 1 |
|
SDA1505V-3 | 15mm | 5mm | 15.5mm | 13.1mm | 1X3 |
| 2 |
|
SDA1510V-3 | 15mm | 5mm | 15.5mm | 13.1mm | 1X3 |
| 3 |
|
SDA1520V-4 | 15mm | 20mm | 15.5mm | 13.1mm | 2X2 |
| 4 |
|
SDA1530V-4 | 15mm | 30mm | 15.5mm | 13.1mm | 2X2 |
| 5 |
|
SDA1605V-3 | 16mm | 5mm | 16.5mm | 14.1mm | 1X3 |
| 6 |
|
SDA1610V-3 | 16mm | 10mm | 16.5mm | 14.1mm | 1X3 |
| 7 |
|
SDA1616V-3 | 16mm | 16mm | 16.5mm | 14.1mm | 1X3 |
| 8 |
|
SDA2005V-3 | 20mm | 5mm | 20.75mm | 17.1mm | 1X3 |
| 9 |
|
SDA2010V-3 | 20mm | 10mm | 20.75mm | 17.1mm | 1X3 |
| 10 |
|
SDA2020V-3 | 20mm | 20mm | 20.75mm | 17.1mm | 1X3 |
| 11 |
|
SDA2030V-2 | 20mm | 30mm | 20.75mm | 17.1mm | 1X2 |
| 12 |
|
SDA2040V-2 | 20mm | 40mm | 20.75mm | 17.1mm | 1X2 |
| 13 |
|
SDA2505V-3 | 25mm | 5mm | 25.75mm | 22.1mm | 1X3 |
| 14 |
|
SDA2510V-3 | 25mm | 10mm | 25.75mm | 22.1mm | 1X3 |
| 15 |
|
SDA2520V-3 | 25mm | 20mm | 25.75mm | 22.1mm | 1X3 |
| 16 |
|
SDA2525V-3 | 25mm | 25mm | 25.75mm | 22.1mm | 1X3 |
| 17 |
|
SDA2530V-2 | 25mm | 30mm | 25.75mm | 22.1mm | 1X2 |
| 18 |
|
SDA2550V-2 | 25mm | 50mm | 25.75mm | 22.1mm | 1X2 |
| 19 |
|
SDA3110V-5 | 31mm | 10mm | 32mm | 25.4mm | 1X5 |
| 20 |
|
SDA3112V-5 | 31mm | 12mm | 32mm | 25.4mm | 1X5 |
| 21 |
|
SDA3116V-5 | 31mm | 16mm | 32mm | 25.4mm | 1X5 |
| 22 |
|
SDA3120V-5 | 31mm | 20mm | 32mm | 25.4mm | 1X5 |
| 23 |
|
SDA3132V-2 | 31mm | 32mm | 32mm | 25.4mm | 1X2 |
| 24 |
|
SDA3610V-5 | 36mm | 10mm | 37mm | 30.4mm | 1X5 |
| 25 |
|
SDA3612V-5 | 36mm | 12mm | 37mm | 30.4mm | 1X5 |
| 26 |
|
SDA3616V-5 | 36mm | 16mm | 37mm | 30.4mm | 1X5 |
| 27 |
|
SDA3620V-5 | 36mm | 20mm | 37mm | 30.4mm | 1X5 |
| 28 |
|
SDA3636V-2 | 36mm | 36mm | 37mm | 30.4mm | 1X2 |
| 29 |
|
SDA3810V-5 | 38mm | 10mm | 39mm | 32.4mm | 1X5 |
| 30 |
|
SDA3812V-5 | 38mm | 12mm | 39mm | 32.4mm | 1X5 |
| 31 |
|
SDA3816V-5 | 38mm | 16mm | 39mm | 32.4mm | 1X5 |
| 32 |
|
SDA3820V-5 | 38mm | 20mm | 39mm | 32.4mm | 1X5 |
| 33 |
|
SDA3825V-4 | 38mm | 25mm | 39mm | 32.4mm | 1X4 |
| 34 |
|
SDA3830V-3 | 38mm | 30mm | 39mm | 32.4mm | 1X3 |
| 35 |
|
SDA3840V-2 | 38mm | 40mm | 39mm | 32.4mm | 1X2 |
| 36 |
|
SDA4510V-5 | 45mm | 10mm | 46mm | 39.4mm | 1X5 |
| 37 |
|
SDA4512V-5 | 45mm | 12mm | 46mm | 39.4mm | 1X5 |
| 38 |
|
SDA4516V-5 | 45mm | 16mm | 46mm | 39.4mm | 1X5 |
| 39 |
|
SDA4520V-5 | 45mm | 20mm | 46mm | 39.4mm | 1X5 |
| 40 |
|
SDA4525V-4 | 45mm | 25mm | 46mm | 39.4mm | 1X4 |
| 41 |
|
SDA4530V-4 | 45mm | 30mm | 46mm | 39.4mm | 1X4 |
| 42 |
|
SDA4540V-3 | 45mm | 40mm | 46mm | 39.4mm | 1X3 |
| 43 |
|
SDA5010V-5 | 50mm | 10mm | 51mm | 44.4mm | 1X5 |
| 44 |
|
SDA5012V-5 | 50mm | 12mm | 51mm | 44.4mm | 1X5 |
| 45 |
|
SDA5016V-5 | 50mm | 16mm | 51mm | 44.4mm | 1X5 |
| 46 |
|
SDA5020V-5 | 50mm | 20mm | 51mm | 44.4mm | 1X5 |
| 47 |
|
SDA5025V-4 | 50mm | 25mm | 51mm | 44.4mm | 1X4 |
| 48 |
|
SDA5030V-4 | 50mm | 30mm | 51mm | 44.4mm | 1X4 |
| 49 |
|
SDA5040V-3 | 50mm | 40mm | 51mm | 44.4mm | 1X3 |
| 50 |
|
SDA5050V-2 | 50mm | 50mm | 51mm | 44.4mm | 1X2 |
