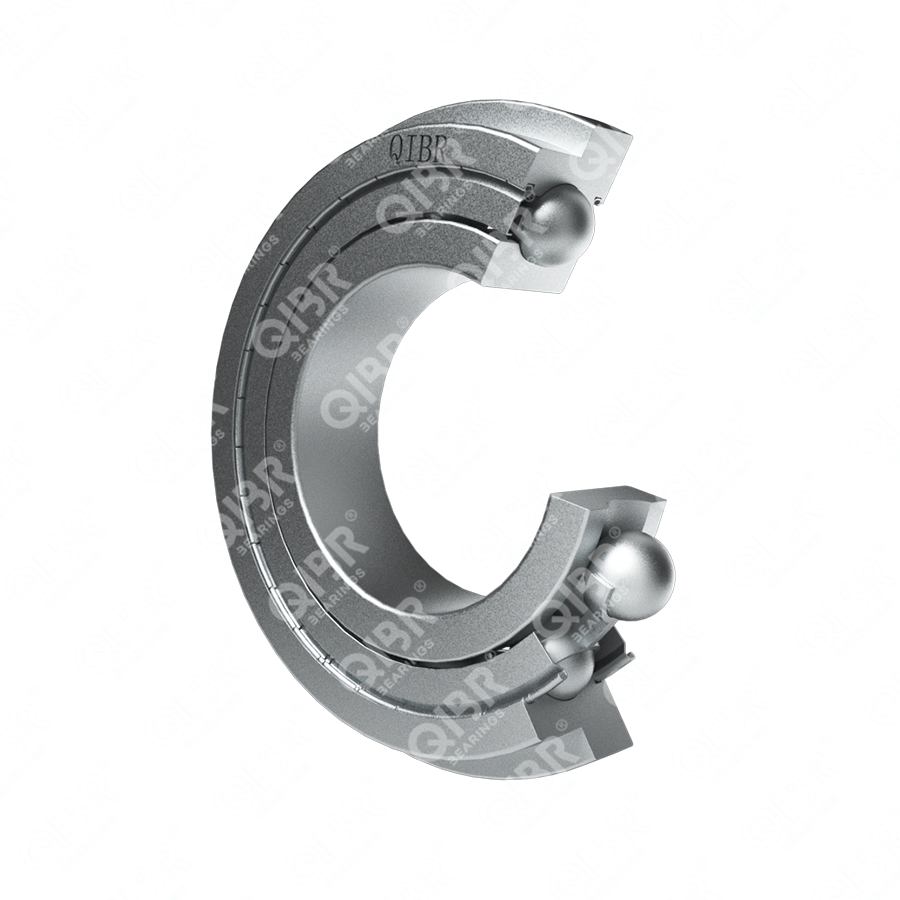

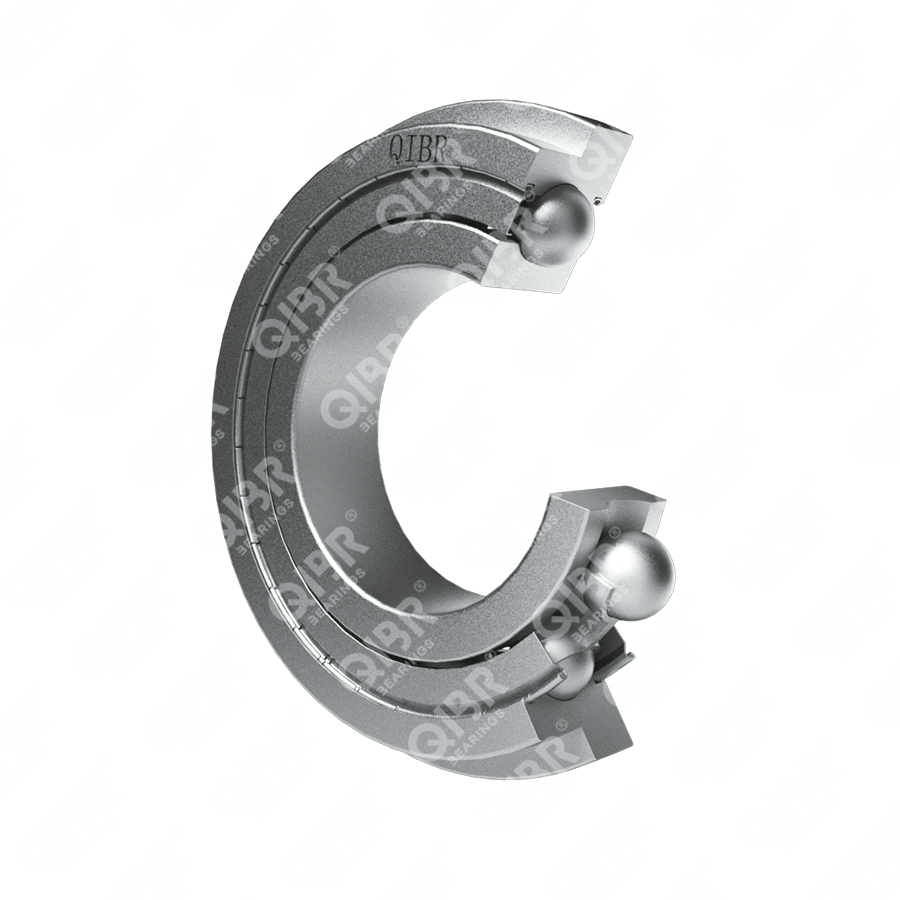

Flange Deep Groove Ball Bearing
Flange deep groove ball bearings are commonly used in applications where space constraints or specific mounting requirements dictate the need for a flanged design. They offer the same benefits as standard deep groove ball bearings, including high-speed capability, low friction, and versatility in handling radial and axial loads, while also providing additional features for efficient and secure installation.
QIBR
Model Selection

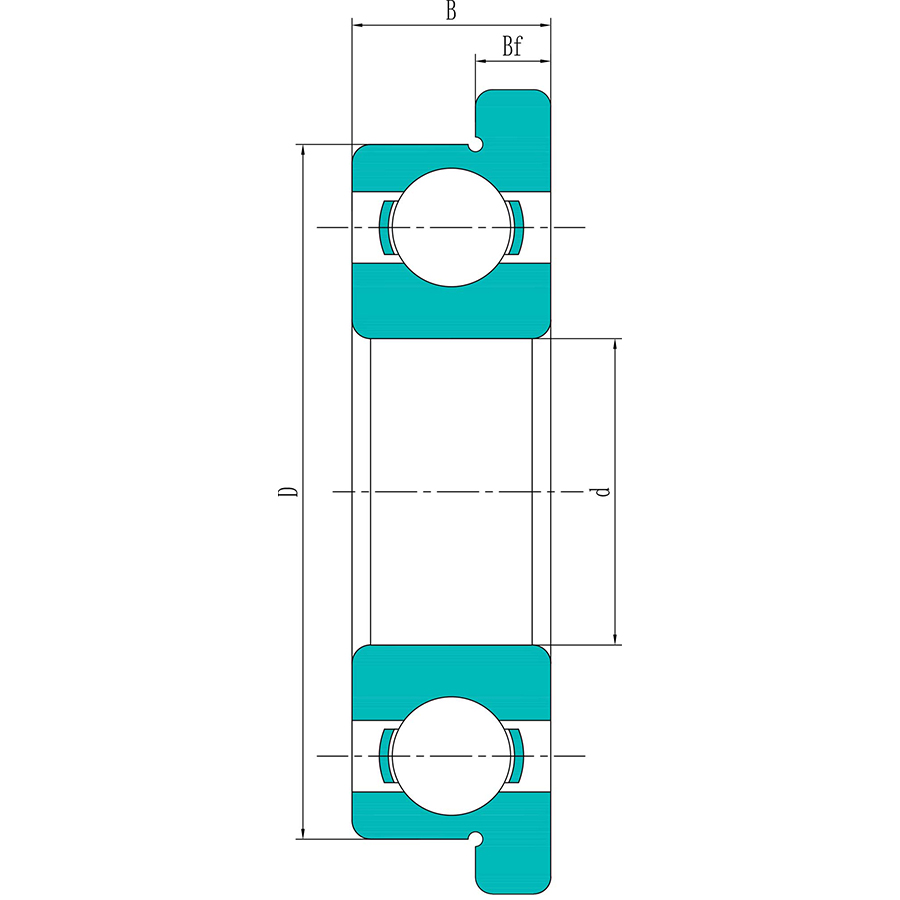

| NO. | Product | Product Number | Outer Diameter (D) | Inner Diameter (d) | Width (B) | Basic dynamic load rating (Cr) | Basic static load rating(Cor) | Mass (M) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
FR0 | 3.967mm | 1.191mm | 1.588mm | 21N | 6N | 0.12g |
| 2 |
|
FR0 ZZ | 3.967mm | 1.191mm | 2.38mm | 21N | 6N | 0.2g |
| 3 |
|
FR1 | 4.763mm | 1.397mm | 1.984mm | 44N | 12N | 0.19g |
| 4 |
|
FR1 ZZ | 4.763mm | 1.397mm | 2.779mm | 44N | 12N | 0.25g |
| 5 |
|
FR1-4 | 6.35mm | 1.984mm | 2.38mm | 54N | 17N | 0.46g |
| 6 |
|
FR1-4 ZZ | 6.35mm | 1.984mm | 3.571mm | 54N | 17N | 0.61g |
| 7 |
|
FR1-5 | 7.938mm | 2.38mm | 2.779mm | 106N | 32N | 0.67g |
| 8 |
|
FR1-5 ZZ | 7.938mm | 2.38mm | 3.571mm | 106N | 32N | 1.25g |
| 9 |
|
FR133 | 4.763mm | 2.38mm | 1.588mm | 36N | 11N | 0.13g |
| 10 |
|
FR133 ZZ | 4.763mm | 2.38mm | 2.38mm | 36N | 11N | 0.21g |
| 11 |
|
FR144 | 6.35mm | 3.175mm | 2.38mm | 54N | 17N | 0.33g |
| 12 |
|
FR144 ZZ | 6.35mm | 3.175mm | 2.38mm | 54N | 17N | 0.48g |
| 13 |
|
FR2 | 9.525mm | 3.175mm | 3.967mm | 121N | 39N | 1.53g |
| 14 |
|
FR2 ZZ | 9.525mm | 3.175mm | 3.967mm | 121N | 39N | 1.53g |
| 15 |
|
FR2-5 | 9.525mm | 3.175mm | 2.779mm | 107N | 32N | 0.57g |
| 16 |
|
FR2-5 ZZ | 9.525mm | 3.175mm | 3.571mm | 107N | 32N | 0.84g |
| 17 |
|
FR2-6 | 9.525mm | 3.175mm | 2.779mm | 122N | 41N | 1.05g |
| 18 |
|
FR2-6 ZZ | 9.525mm | 3.175mm | 2.779mm | 122N | 41N | 1.35g |
| 19 |
|
FR155 | 7.938mm | 3.967mm | 2.779mm | 69N | 27N | 0.56g |
| 20 |
|
FR155 ZZ | 7.938mm | 3.967mm | 3.175mm | 69N | 27N | 0.72g |
| 21 |
|
FR156 | 4.763mm | 7.938mm | 2.799mm | 69N | 27N | 0.47g |
| 22 |
|
FR156 ZZ | 4.763mm | 7.938mm | 2.799mm | 69N | 27N | 0.56g |
| 23 |
|
FR3 | 12.7mm | 4.763mm | 3.967mm | 249N | 88N | 2.5g |
| 24 |
|
FR3 ZZ | 12.7mm | 4.763mm | 3.967mm | 249N | 88N | 3.24g |
| 25 |
|
FR188 | 12.7mm | 6.35mm | 4.763mm | 207N | 80N | 1.71g |
| 26 |
|
FR188 ZZ | 12.7mm | 6.35mm | 4.763mm | 207N | 80N | 2.54g |
| 27 |
|
FR4 | 15.875mm | 6.35mm | 4.978mm | 283N | 112N | 4.82g |
| 28 |
|
FR4 ZZ | 15.875mm | 6.35mm | 4.978mm | 283N | 112N | 4.9g |
| 29 |
|
FR6 | 22.225mm | 9.525mm | 5.558mm | 637N | 256N | 9.71g |
| 30 |
|
FR6 ZZ | 22.225mm | 9.525mm | 5.558mm | 637N | 256N | 12.39g |
